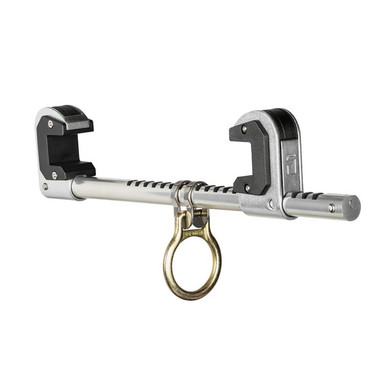

FallTech 7531 Trailing Beam Clamp Anchor, Single-Clamp Adjustment
The FallTech 7531 is a reusable trailing beam clamp anchor that provides a rated tie-off point on a structural I-beam without drilling or welding. It clamps to the beam flange and trails along with the worker, keeping the connection point overhead as you move down the beam.
Built with an aluminum crossbar and steel jaws with a swiveling D-ring, it installs by single-clamp adjustment and fits a wide range of standard flange widths up to 1-1/4 in thick. Certified to ANSI Z359.18-2017 as a Type A anchorage with 5,000 lb (22.2 kN) strength. For temporary and mobile use on horizontal I-beams.
Who Needs This Product
This product is a beam anchor, the anchorage component of a personal fall arrest system. Steel erectors, bridge and structural crews, and maintenance workers clamp it to an I-beam flange to create a rated overhead tie-off point, then connect an SRL or energy-absorbing lanyard to the D-ring. As a trailing anchor, it slides along the beam with the worker. You still need a certified full-body harness and a compatible connecting device to complete the system.
Features
No drilling or welding
Clamps directly to the beam flange for a reusable, damage-free anchor point.
Trailing mobility
Slides along the beam with the worker so the tie-off stays overhead as you move.
Single-clamp adjustment
One-clamp adjustment fits a wide range of standard flange widths quickly.
Swiveling steel D-ring
The plated steel D-ring swivels and stays centered under load to reduce twist.
Aluminum crossbar, steel jaws
Lightweight aluminum crossbar with durable steel jaws for repeated jobsite use.
ANSI Z359.18-2017 Type A
Certified 5,000 lb (22.2 kN) anchorage strength for a single-worker personal fall arrest system.
Install tight to the flange and check the jaw gap. The anchor must be clamped firmly with both jaws fully over the beam flange and the D-ring centered. The gap between the beam flange and the jaw must not exceed 11/16 in; if it does, tighten the anchor further. Use only on rated horizontal I-beams and confirm fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.18-2017
American National Standard for anchorage connectors, Type A (model 7531B). 5,000 lb (22.2 kN) strength.
OSHA 29 CFR 1926.502
Federal construction fall protection anchorage requirements.
OSHA 29 CFR 1910
General industry personal fall protection requirements.
Reusable Type A anchor
Temporary and mobile use on horizontal I-beams; remove after use.
Typical Applications
How to Install the 7531
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the crossbar, jaws, threads, and D-ring for damage or corrosion before each use.
- Position. Place both jaws over the beam flange in an approved orientation (trailing top-flange, overhead bottom-flange, or side mount).
- Clamp. Slide the jaws together until the anchor is tight to the flange and the D-ring is centered.
- Verify the gap. Confirm the gap between the flange and jaw does not exceed 11/16 in; tighten further if needed.
- Connect and check clearance. Attach your SRL or lanyard to the D-ring, then confirm fall clearance and swing-fall with the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Crossbar or jaws: cracks, bending, deformation, or corrosion.
- Threads and adjustment: damaged threads or an adjustment that will not hold.
- D-ring: deformation, sharp edges, corrosion, or a swivel that binds.
- Markings: illegible or missing labels.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 7531 |
|---|---|
| Manufacturer Part Number | 7531B |
| Type | Trailing beam clamp anchor, single-clamp adjustment |
| Anchorage classification | ANSI Z359.18-2017 Type A |
| Strength | 5,000 lb (22.2 kN) |
| Capacity | One worker, 130 to 310 lb combined weight of user, tools, and clothing |
| Mounting | Trailing (top flange), overhead (bottom flange), or side mount on horizontal I-beams |
| Beam flange thickness | Up to 1-1/4 in |
| Maximum flange-to-jaw gap | 11/16 in |
| Materials | Aluminum crossbar, steel jaws, plated steel swiveling D-ring |
| Connection | Swiveling D-ring for SRL or energy-absorbing lanyard |
| Standards | ANSI Z359.18-2017; OSHA 1926.502 and 1910 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
