Elite Construction Harness
The Frontline Elite Series construction-style harness pairs the same all-day comfort engineering as the 250VTB vest: perforated padding, mesh airflow, aluminum hardware, reflective trim, removable phone/radio holder, suspension trauma straps integrated: with construction-style crossover sizing. ANSI Z359.11-2021 compliance, ISO/IEC 17025 lab tested, OSHA aligned.
Polyester with aluminum hardware. Rated to a 310 lb capacity and 5,000 lb breaking strength. Compliant with ANSI Z359.11-2021 and OSHA 29 CFR 1910 and 1926.
Who Needs This Product
This product is a personal fall protection full body harness. It is used as the wearer-side component of a personal fall arrest system (PFAS), a work positioning system, or a fall restraint system. Pair it with a compatible energy-absorbing lanyard or self-retracting lifeline (SRL) and a certified anchor rated to 5,000 lb. The harness is not a complete fall arrest system on its own.

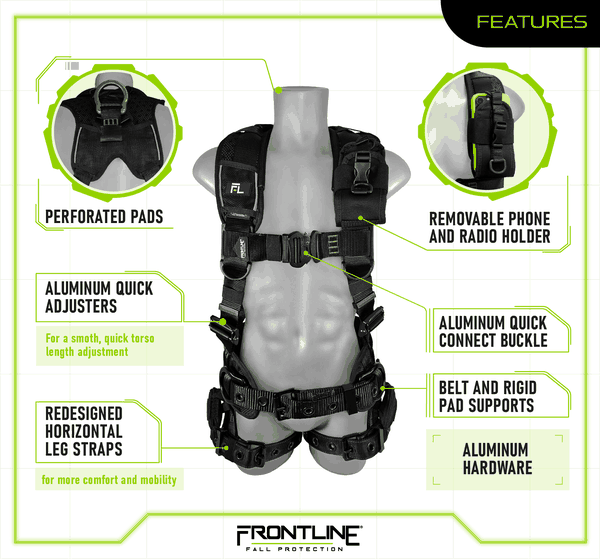

Features
Perforated padding under mesh netting
Maximum airflow at the back, shoulders, and lumbar.
Retro-reflective trim around the harness
Lit-up visibility for low-light environments and roadside work.
Aluminum quick-connect chest buckle
Locking quick-connect on the chest strap; tongue buckles on the legs.
Removable phone and radio holder
Optional accessory pouch that stays on the harness or comes off in seconds.
Vertically-stable aluminum dorsal D-ring
Engineered to hold its vertical orientation so the dorsal is ready to clip without re-orienting.
Independent ISO/IEC 17025 lab tested
Tested to ANSI Z359.11-2021 by an ISO/IEC 17025 accredited third-party lab.
Technical Specifications
| Series | Elite |
|---|---|
| SKU | 250CTB |
| Rated user capacity | 310 lb (worker, clothing, tools, and harness combined) |
| Breaking strength | 5,000 lb |
| Webbing material | Polyester |
| Webbing width | 1.75 in |
| Stitching | High-tenacity polyester |
| Hardware | Aluminum |
| D-rings | Dorsal (vertical-stable) (aluminum back d-ring built to stay vertical so connection points line up cleanly after donning); Side (hip) (two aluminum side d-rings for work positioning and restraint) |
| Weight | 6.0 - 6.4 lbs |
| Available sizes | S, M/L, XL/2XL |
| ANSI standard | Z359.11-2021 |
| OSHA alignment | 29 CFR 1910 Subpart I; 29 CFR 1926 Subpart M |
Capacity and free fall. The 310 lb capacity includes the worker plus clothing, tools, and harness combined. Maximum free fall for a personal fall arrest system is 6 ft per OSHA 1926.502 when anchored at the dorsal D-ring. Calculate fall clearance for every setup before tying off.
Compliance Standards
ANSI Z359.11-2021
American National Standards Institute fall protection standard for this product class.
OSHA 29 CFR 1926
Subpart M construction industry fall protection (1926.500-503).
OSHA 29 CFR 1910
Subpart I general industry walking-working surfaces and PPE.
Typical Applications
Donning Overview
Single-operator donning per the Frontline user manual. Always refer to the manual for the full procedure.
- Inspect. Run the harness through a pre-use inspection: webbing, hardware, stitching, labels, fall indicators.
- Orient. Hold the harness up by the dorsal D-ring. Shake the leg straps free so they hang clean.
- Shoulders. Slip both arms through the shoulder straps with the dorsal D-ring centered between the shoulder blades.
- Chest. Connect the chest buckle. Adjust so the strap sits 6 to 8 inches below the collarbone.
- Legs. Pass each leg strap under the thigh and connect at the leg buckle. Tighten until two fingers fit between strap and thigh.
- Tighten. Adjust shoulders, chest, and legs evenly. The dorsal D-ring should rest between the shoulder blades, not riding up the neck or down the lower back.
Inspection and Retirement
Inspect every component before each use. A competent person formally inspects at documented intervals, typically every 6 months under ANSI Z359.2. Pull the equipment out of service for any of the conditions below.
- Webbing: cuts, burns, abrasion, chemical attack, broken threads, loose stitching.
- Hardware: cracks, deformation, sharp edges, corrosion, improper function of buckles and D-rings.
- Stitching: cut, broken, or loose stitches; pulled threads at any load point.
- Labels: legible and intact. Date of first use recorded.
- Fall indicators: any deployed or stretched indicator pulls the equipment out of service immediately.
- Connectors and hooks: gates close fully under spring tension; latches lock; no rollout exposure.
Retirement triggers: any deployed fall indicator, any equipment involved in a fall event, any chemical exposure outside the manufacturer-published list, or any condition where the inspector cannot positively verify the equipment is fit for service.
