Super Anchor Hinge-2 30 Degree Horizontal Lifeline Kit
The Super Anchor Hinge-2 Horizontal Lifeline Kit is a 30 degree angle, fixed length, factory engineered HLL system for use by 3 workers in fall restraint or 2 in fall arrest. This third party engineered kit is a cost effective way to put multiple workers on the roof with room to move, and each fixed length lifeline is labeled for the correct rafter spacing for accurate rigging.

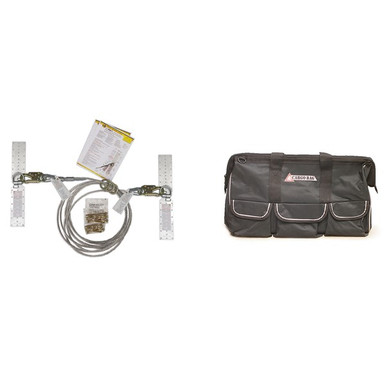

The 20 foot kit includes Hinge-2 anchors, the HLL wire rope with snap hooks, O-ring sliders, and fasteners. Choose the 1323 with a carry bag or the 1324 without. Capacity is 1 person at 310 pounds with an E-4 energy absorber, or 340 pounds with an E-6 absorber. The 3/8 inch galvanized cable has a 14,400 pound break strength and the maximum slope is 12/12.
Who Needs This Product
The Hinge-2 HLL Kit is a factory engineered horizontal lifeline for crews that need multiple workers on a roof with freedom to move. It suits framing and roofing where a rafter spacing of 10 to 20 feet applies. Complete the system with full-body harnesses and the specified energy absorbers.
Features
Factory engineered HLL
A third party engineered 30 degree fixed length horizontal lifeline system.
Two or three workers
2 persons in fall arrest or 3 persons in fall restraint.
Labeled for rafter spacing
Each fixed length lifeline is labeled for the correct rafter spacing for accurate rigging.
Complete 20 foot kit
Includes Hinge-2 anchors, HLL wire rope with snap hooks, O-ring sliders, and fasteners.
Carry bag option
The 1323 includes a carry bag; the 1324 is the kit without a bag.
Heavy duty cable
The 3/8 inch galvanized cable has a 14,400 pound break strength.
This is a factory engineered system that must be rigged as specified. Do not exceed a 12/12 slope. Each worker must use a compliant harness and the specified energy absorber, an E-4 for 310 pounds or an E-6 for 340 pounds. Confirm rafter spacing and fall clearance. Run the Fall Protection Calculator below before you tie off.
Compliance Standards
ANSI Z359.18 Type A
American National Standard for anchorage connectors, Type A.
CSA Z259.12-11
Canadian standard for connecting components, aligning with OSHA 1926.502.
Typical Applications
How to Rig the Hinge-2 HLL Kit
Follow the Super Anchor Safety instruction manual. The sequence below is an overview only.
- Confirm the rafter spacing. Match the labeled fixed length lifeline to your rafter spacing, 10 to 20 feet.
- Install the anchors. Fasten the Hinge-2 anchors at the ridge with WS series screws per the manual.
- Rig the line. Connect the HLL wire rope with snap hooks and set the O-ring sliders.
- Connect the workers. Each worker attaches a harness and the specified E-4 or E-6 energy absorber.
- Verify. Confirm the slope is 12/12 or less, the rigging is correct, and confirm fall clearance.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the product from service for any condition below.
- Anchor body: cracks, deformation, corrosion, or elongated holes.
- Coating: worn or damaged galvanizing, dacromet, or powder coat at the connection point.
- Fasteners and flashing: loose, missing, backed-out, or leaking hardware.
- D-ring or connection point: burrs, sharp edges, or excessive wear.
- Labels: illegible or missing product identification.
Retire the anchor immediately after any fall-arrest event, or if any inspection point fails.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 1323 (with carry bag), 1324 (without bag) |
|---|---|
| Manufacturer Part Number | 1323 / 1324 |
| Type | 30 degree fixed length horizontal lifeline kit, 20 ft |
| Kit contents | Hinge-2 anchors, HLL wire rope with snap hooks, O-ring sliders, fasteners |
| Capacity | 2 persons fall arrest or 3 persons fall restraint |
| User weight | 310 lb with E-4 absorber (900 lb) or 340 lb with E-6 absorber (1,300 lb) |
| Cable | 3/8 in galvanized, 14,400 lb break strength |
| Max slope | 12/12 |
| Rafter spacing | 10 to 20 ft |
| Standards | ANSI Z359.18 Type A; CSA Z259.12-11; OSHA 1926.502 |
| Warranty | Super Anchor Safety manufacturer warranty; see Warranty tab |
Frequently Asked Questions
Super Anchor Hinge-2 Horizontal Lifeline Kit Submittals and Documentation
Super Anchor HLL 1323 Instruction Manual 2025 (PDF)30 degree horizontal lifeline system use and inspection.Super Anchor Hinge-2 Anchor Manual 2025 (PDF)Hinge-2 anchor installation and inspection.Super Anchor Warranty and Compliance Statement (PDF)Manufacturer warranty and standards compliance.Related Super Anchor Products
Putting a Crew on the Roof?
Rafter spacing, worker count, and energy absorber all affect the engineered HLL. Confirm your job with us and we will help match the Hinge-2 kit, absorbers, and PPE.
Call 863-703-4522 to talk to a fall protection specialist.
Super Anchor Safety Manufacturer Warranty
Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.
Permanent Anchor Warranty
Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.
See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
