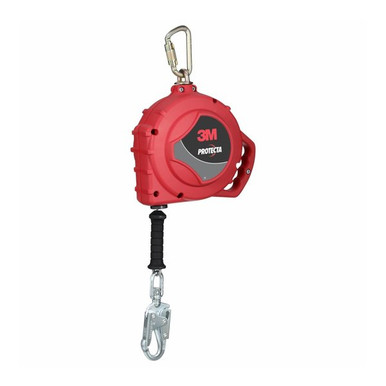

Protecta Edge Self-Retracting Lifeline Galvanized Cable, Steel Swivel Snap Hook, 20ft., Class 2, ANSI
The 3M Protecta Self-Retracting Lifeline (SRL) extends and retracts with the user as they perform their work task. Should a fall occur, a speed sensing brake system activates, stopping the fall and reducing the forces imposed on the user to safe levels. In addition, tension is always kept on the lifeline, which helps reduce dragging, snagging, trips, and falls. Whether the application requires single or twin leg configurations, mounting to an overhead anchor, or for connection directly to harness, there are several models to choose from to suit a variety of applications.
ANSI Class Level 2; ANSI/ASSP Z359.14-2021; 29 CFR OSHA 1910.140; 29 CFR OSHA 1926.502 Built for overhead service at length, with a sealed drum design engineered for harsh environments and long service life.
Who Needs This Product
For overhead service at length: platforms, tank tops, crane runways, and confined space entries where the anchor lives high and the work runs deep.
Features
Swiveling anchorage connector loop
Swiveling anchorage connector loop, engineered into this DBI-SALA configuration as standard.
Aluminum or thermoplastic housing design
Aluminum or thermoplastic housing design, engineered into this DBI-SALA configuration as standard.
Self-locking snap hook on lifeline
Self-locking snap hook on lifeline, engineered into this DBI-SALA configuration as standard.
Compact, lightweight design
Compact, lightweight design, engineered into this DBI-SALA configuration as standard.
Cable lengths of 20 ft
Cable lengths of 20 ft (6 m) or greater feature stackable housing design.
Quick activating speed-sensing locking
Quick activating speed-sensing locking system, engineered into this DBI-SALA configuration as standard.
Technical Specifications
| SKU | 3590046 |
|---|---|
| Anchor Connection Type | Carabiner |
| Anchor Hook Material | Zinc Plated Steel |
| Connected Safety ID Equipped | No |
| Housing Material | Nylon Thermoplastic |
| Install Type | Removable |
| Leg Count | Single-Leg |
| Lifeline Connection Type | Swivel Snap Hook |
| Lifeline Length | 20 ft |
| Lifeline Material | Galvanized Cable |
| Maximum Number of Users | One |
| Mounting Type | Block to Anchor Point |
| Overall Length | 20 ft |
| Product Type | Self Retracting Lifeline - Cable |
| Specifications Met | ANSI Class Level 2; ANSI/ASSP Z359.14-2021; 29 CFR OSHA 1910.140; 29 CFR OSHA 1926.502 |
| Weight Capacity | 310 lb |
| Warranty | 3M Global Product Warranty against factory defects, one year from first use |
Overhead use only. Anchor per the instruction manual, keep the lifeline path clear, and remove the unit from service after any fall arrest for factory-authorized inspection.
Compliance Standards
ANSI/ASSP Z359.14-2021 Class 2
Certified as a Class 2 self-retracting device under the 2021 standard that replaced the legacy Class A and B designations.
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Inspect the housing, full lifeline payout, impact indicator, and connectors before use.
- Mount the unit to the overhead anchorage per the manual.
- Connect the lifeline hook to the harness dorsal D-ring.
- Check retraction and brake engagement with a sharp pull test per the manual.
- Verify fall clearance below the working surface before entry.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Retraction and brake: smooth payout, positive lock on a sharp pull, and an undeployed impact indicator.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
