Rollgliss RPD Rescue Positioning Device, 3:1 Ratio
Positioning or rescue work To put a worker at just the right level for a task in mid-air, or save a trapped or suspended worker who needs help, this reliable rescue and positioning system brings versatility to any jobsite. Equipped with tough kernmantle rope and pulley, a pair of carabiners, and super-strong anchor slings, it's ready for any situation and challenge. Built to withstand tough jobs A corrosion-resistant, weather-resistant construction and compact, durable design allows skilled pros to work with peace of mind.
ANSI Z117.1; ANSI Z117.1-1995; OSHA 1910.146 When seconds count, purpose-built rescue equipment turns a suspended worker into a recovered worker.
Who Needs This Product
For rescue teams and competent persons responsible for getting a suspended worker down fast after an arrest.
Features
Rescue and positioning kit with

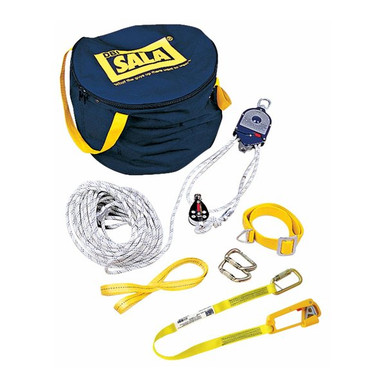

Rescue and positioning kit with pulley, two anchor slings, two carabiners, and carrying bag.
Designed for raising, lowering, and
Designed for raising, lowering, and positioning, engineered into this DBI-SALA configuration as standard.
3/8 in. (9.5 mm) kernmantle
3/8 in. (9.5 mm) kernmantle rope lifeline comes in varying lengths: 50 ft. (15.2 m), 100 ft. (30.5 m), 150 ft. (45.7 m), 200 ft. (61.0 m), and 400 ft. (121.9 m).
Manual control makes the ascent
Manual control makes the ascent and descent smooth and secure.
3:1 lifting ratio configuration (4:1
3:1 lifting ratio configuration (4:1 also available).
Pre-rigged system with unique
Pre-rigged system with unique speed-sensing braking mechanism makes the job more efficient.
Technical Specifications
| SKU | 3600100 |
|---|---|
| CoWorker Controlled Ascent | Yes |
| CoWorker Controlled Descent | Yes |
| Connected Safety ID Equipped | Yes |
| Descent Type | Vertical |
| Lifeline Material | Kernmantle, Braided Polyester Cover with Nylon Filament Core |
| Maximum Number of Users | Two |
| Net Weight | 17.6 lb |
| Overall Length | 100 ft |
| Product Series | Rollgliss RPD |
| Product Type | Rescue Positioning Device - 3:1 Ratio |
| Specifications Met | ANSI Z117.1; ANSI Z117.1-1995; OSHA 1910.146 |
| User Controlled Ascent | Yes |
| User Controlled Descent | Yes |
| Weight | 26.5 lb |
| Weight Capacity | 500 lb |
| Warranty | 3M Global Product Warranty against factory defects, one year from first use |
Rescue equipment requires rescue training. Deploy only under a rescue plan with trained personnel per OSHA 1926.502 and ANSI Z359.2. Practice before you need it.
Compliance Standards
ANSI Z359
Meets the ANSI Z359 fall protection code requirements listed on the product label and instruction manual.
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Read the 3M instruction manual before first use.
- Inspect all components before each use.
- Install or deploy per the manual for your application.
- Verify system compatibility and clearances.
- Document inspections on a competent person schedule.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Function: smooth operation with no hesitation, per the manual test procedure.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
DBI-SALA 3600100 Submittals and Documentation
Rollgliss Rescue Positioning Device User Instructions (PDF)Full specifications, connector tables, clearance data, and inspection procedures. Anchorage Strength Requirements Technical Bulletin (PDF)3M technical bulletin. Compatibility Of Fall Protection Components Fm (PDF)Compatibility guidance for fall protection components.Compatible and Related Products
- DBI-SALA Confined Space Aluminium Tripod 8000141. Related DBI-SALA product in this line.
- DBI-SALA SalaliftII Winch 8102001. Related DBI-SALA product in this line.
- DBI-SALA Rollgliss Descender, Sloped/Automatic Retract 3303019. Related DBI-SALA product in this line.
Building Your Rescue Plan?
Confirm your setup with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
3M DBI-SALA Global Product Warranty
Unless otherwise provided by local laws, 3M fall protection products are warranted against factory defects in workmanship and materials for a period of one year from the date of installation or first use by the original owner.
Limited Remedy: Upon written notice to 3M, 3M will repair or replace any product determined by 3M to have a factory defect in workmanship or materials. 3M reserves the right to require product be returned to its facility for evaluation of warranty claims. This warranty does not cover product damage due to wear, abuse, misuse, damage in transit, failure to maintain the product or other damage beyond 3M's control. 3M will be the sole judge of product condition and warranty options. This warranty applies only to the original purchaser and is the only warranty applicable to 3M's fall protection products.
Limitation of Liability: To the extent permitted by local laws, 3M is not liable for any indirect, incidental, special or consequential damages including, but not limited to loss of profits, in any way related to the products regardless of the legal theory asserted.
The warranty above is made in lieu of all warranties or conditions, express or implied, including the implied warranties or conditions of merchantability or fitness for a particular purpose. Please contact 3M's customer service department in your region for assistance with warranty claims, or reach out to our team at Fall Protection Distributors, LLC and we will help you start the process.
