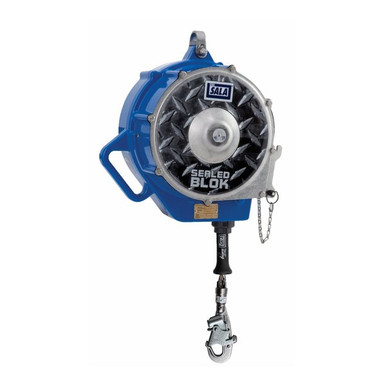

Sealed-Blok 3-Way Retrieval Self-Retracting Lifeline with Bracket Stainless Steel Cable,130 ft. OSHA
When it comes to confined space and entry rescue, the 3M DBI-SALA Sealed-Blok Self-Retracting Lifeline (SRL) is essential; it operates quickly and efficiently in the toughest environments. The 3M DBI-SALA Sealed-Blok Self-Retracting Lifeline is one of the most critical parts of a rescue system as it provides the means to retrieve an incapacitated worker to safety. The SRL's lifeline is designed to extend as the user moves away and retracts automatically, enabling the user to move around within a recommended working area at normal speeds.
OSHA 1910.140; OSHA 1926.502 Built for overhead service at length, with a sealed drum design engineered for harsh environments and long service life.
Who Needs This Product
For overhead service at length: platforms, tank tops, crane runways, and confined space entries where the anchor lives high and the work runs deep.
Features
Available in multiple configurations,
Available in multiple configurations, lifeline lengths, and material types.
Critical SRL components sealed from
Critical SRL components sealed from environmental exposure.
Swiveling self-locking snap hook with
Swiveling self-locking snap hook with impact indicator.
Pivoting anchorage connector loop
Pivoting anchorage connector loop, engineered into this DBI-SALA configuration as standard.
Durable Construction
Durable Construction, engineered into this DBI-SALA configuration as standard.
Galvanized & stainless steel cable
Galvanized & stainless steel cable options, engineered into this DBI-SALA configuration as standard.
Technical Specifications
| SKU | 3400171 |
|---|---|
| Anchor Connection Type | Swivel Snap Hook |
| Anchor Hook Material | Stainless Steel |
| Attachment Type | None |
| Average Arrest Force | 1125 lbf (OSHA up to 420 lb); 1125 lbf (OSHA 130 lb - 310 lb) |
| Connected Safety ID Equipped | Yes |
| For Use With | Full Body Harness & Anchor Point |
| Harness Connection Type | None |
| Housing Material | Aluminum & Stainless Steel |
| Install Type | Portable & Removable |
| Leg Count | Single-Leg |
| Lifeline Connection Type | Swivel Snap Hook |
| Lifeline Hook Material | Stainless Steel |
| Lifeline Length | 130 ft |
| Lifeline Material | Stainless Steel Cable |
| Maximum Arrest Force | 1800 lbf (OSHA up to 420 lb); 1800 lbf (OSHA 130 lb - 310 lb) |
| Maximum Number of Users | One |
| Mounting Type | Overhead Anchor Point |
| Product Series | Sealed-Blok |
| Product Type | Self Retracting Lifeline - Retrieval/Bracket |
Overhead use only. Anchor per the instruction manual, keep the lifeline path clear, and remove the unit from service after any fall arrest for factory-authorized inspection.
Compliance Standards
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Inspect the housing, full lifeline payout, impact indicator, and connectors before use.
- Mount the unit to the overhead anchorage per the manual.
- Connect the lifeline hook to the harness dorsal D-ring.
- Check retraction and brake engagement with a sharp pull test per the manual.
- Verify fall clearance below the working surface before entry.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Retraction and brake: smooth payout, positive lock on a sharp pull, and an undeployed impact indicator.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
DBI-SALA 3400171 Submittals and Documentation
Sealed Blok Self Retracting Devices User Instructions (PDF)Full specifications, connector tables, clearance data, and inspection procedures. Personal Safety Products Firefighting Notice (PDF)3M notice regarding fluorinated organic compounds. 3400171 Inspection Form (PDF)Printable pass/fail checklist for documented inspections.Compatible and Related Products

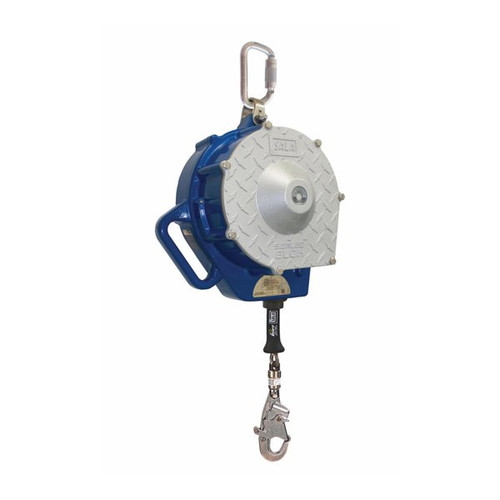

- DBI-SALA Sealed-Blok Self Retracting Lifeline Stainless 3400131. Related DBI-SALA product in this line.
