Name: FallTech 7009B Tradesman Plus 3D Standard Non-belted Harness
Brand: FallTech
SKU: 7009BX
Price: 146 USD
Availability: InStock

Description
Warranty Information
Reviews

FallTech Tradesman Plus

FallTech 7009B Tradesman Plus 3D Standard Non-belted Full Body Harness

The FallTech 7009B is a Tradesman Plus 3D Standard Non-belted Full Body Harness with dorsal and hip D-rings and polyester webbing rated to 3,600 lb min. static strength. The hip D-rings add work positioning capability, while the quick-connect chest and mating buckle legs keep donning fast.

It meets ANSI Z359.11-2014 and OSHA 1926.502 and 1910.140, with CSA Z259.10-2018 coverage documented in the declarations below, and is available in 4 size options from S/M to 2X. Every unit ships with the full FallTech documentation package, linked below for your safety submittals.

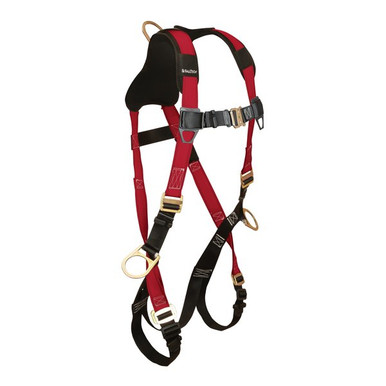

FallTech 7009B Tradesman Plus 3D Standard Non-belted Full Body Harness with dorsal and hip D-rings, quick-connect chest, and mating buckle legs

3,600 lbStatic Strength Minimum

130 to 310 lbANSI User Capacity

130 to 425 lbOSHA User Capacity

3 D-RingsDorsal and Hip Placement

5,000 lb webPolyester Webbing Strength

4 SizesS/M Through 2X

ANSI Z359.112014 Edition Compliance

9 PositionsTorso Adjustment Rollers

Who Needs This Product

Crews who need fall arrest plus work positioning in one harness for construction and general industry. The dorsal D-ring handles the arrest connection while the hip D-rings hold a positioning lanyard, making the 7009B a strong fit for form work, rebar, and steel trades on a budget.

Features

Dorsal and hip D-rings

Three plated alloy steel D-rings pair everyday fall arrest with hip-based work positioning connections.

Tri-layer padded shoulder yoke

Features an integral tri-layer padded shoulder yoke to provide breathable user comfort across the shoulders and upper back.

Dorsal SRL attachment sleeve

The proprietary dorsal attachment sleeve supports effortless addition of personal SRLs without extra carabiners or adapters.

Spring tension roller adjusters

Plated alloy steel low-profile spring tension roller torso adjusters provide simple upper-body adjustment.

Visual connection indicators

The quick-connect chest buckle features visual indicators showing positive connection before you leave the ground.

5,000 lb polyester webbing

Polyester webbing rated to 5,000 lb min. static strength carries the load path through the entire harness.

⚠

Safety first. A full body harness is only one part of a personal fall arrest system. Verify anchorage strength, connector compatibility, and fall clearance before work begins, and never use a harness that has arrested a fall until a competent person removes it from service. When calculating minimum required fall clearance, the FallTech manual adds 1.5 ft for harness stretch and D-ring shift during arrest.

Compliance Standards

ANSI Z359.11-2014

Meets the ANSI/ASSP standard for full body harnesses per declaration of conformity B1115051c.

OSHA 1926.502 and 1910.140

Satisfies OSHA construction and general industry requirements for personal fall arrest system body support.

CSA Z259.10-2018

CSA declaration BC1209170 documents Z259.10-2018 conformity for dual-size Tradesman Plus configurations, including the S/M size offered here.

Applications

Commercial constructionSteel, concrete, and framing crews working at height where a personal fall arrest system is required.

Roofing and exterior tradesResidential and commercial roofers connecting to anchors with SRLs or energy absorbing lanyards.

Form and rebar workConcrete crews using the hip D-rings with a positioning lanyard to work hands-free.

Steel erection and deckingConnectors and decking crews who need secure body support through a full shift.

Maintenance and facilitiesPlant and facility technicians performing elevated work on ladders, platforms, and rooftops.

Rental and fleet programsSafety managers outfitting crews who need dependable sizing across a workforce.

How to Use

Donning a full body harness takes less than a minute once the straps are adjusted to your body.

Inspect first. Check webbing, stitching, D-rings, and buckles for damage before every use. Remove the harness from service if you find cuts, burns, or deformed hardware.
Don the harness. Hold the dorsal D-ring, shake the harness so the straps fall free, and slip it on like a jacket.
Close and adjust. Connect the chest and leg closures, then adjust the torso so the dorsal D-ring sits between the shoulder blades.
Check the fit. You should be able to slide a flat hand, but not a fist, under the leg straps. Tuck loose strap ends into the keepers.
Connect and verify. Attach your lanyard or SRL to the correct D-ring for the task, and verify anchorage and clearance based on the delivery location of the work.

Inspection and Service Life

OSHA requires personal fall protection to be inspected before each use, and ANSI Z359.11 adds a formal inspection by a competent person at least annually. Log formal inspections so the service history follows the harness.

Webbing: look for cuts, fraying, abrasion, burns, chemical damage, and UV fading along every strap
Stitching: check for pulled, broken, or abraded threads, especially at load-bearing junctions
D-rings and hardware: confirm no cracks, sharp edges, corrosion, or distortion, and that buckles engage positively
Labels: verify the label pack is present and legible, including the date of first use
Load indicators: confirm the fall arrest indicator has not deployed

Retire the harness immediately if it has arrested a fall, if any inspection point fails, or if the label is missing or unreadable. Cut the webbing on retired units and destroy retired equipment so it cannot return to service.

Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Type	Non-Belted Full Body Harness
SKU	7009B
Family	Tradesman Plus
D-Rings	3 (Dorsal, Hip)
Closures	Mating Buckle Legs and Quick-connect Chest
Webbing	Polyester; 5,000 lb min. static strength
D-Ring Hardware	Plated alloy steel; 5,000 lb min. static strength
Buckles and Adjusters	Plated alloy steel; 3,372 lb min. static strength
Static Strength	3,600 lb min.
ANSI User Capacity	130 to 310 lb max.
OSHA User Capacity	130 to 425 lb max.
Standards	ANSI Z359.11-2014; OSHA 1926.502 and 1910.140; CSA Z259.10-2018
Available Configurations	7009BSM (S/M), 7009B (UniFit), 7009BX/2X (XL/2X), 7009B2X (2X)
Warranty	FallTech 2-year manufacturer warranty, honored through Fall Protection Distributors

Frequently Asked Questions

What sizes does the 7009B come in?

The 7009B is available in 4 size options: S/M, UniFit (the FallTech fits-most single size), XL/2X, and 2X. Use the FallTech harness sizing chart in the submittals section to match chest, waist, and thigh measurements before ordering, and confirm fit by adjusting the harness to your body before first use.

What standards does the 7009B meet?

The 7009B complies with ANSI Z359.11-2014 and OSHA 1926.502 and 1910.140 per declaration of conformity B1115051c. CSA Z259.10-2018 conformity for the Tradesman Plus family is documented in declaration BC1209170, which covers the dual-size Small/Med configuration offered here.

How many D-rings does the 7009B have and what is each one for?

The 7009B has 3 D-rings: one dorsal and two hip. The dorsal D-ring is the fall arrest connection point for your lanyard or SRL, and the hip D-rings connect a work positioning lanyard so you can work hands-free at the task.

What is the weight capacity of the 7009B?

The ANSI user capacity is 130 to 310 lb max. and the OSHA user capacity is 130 to 425 lb max., including the worker, clothing, and tools. Static strength of the harness is 3,600 lb min.

What closures does the 7009B use?

It uses mating buckle legs and a quick-connect chest buckle. The quick-connect buckle features visual indicators showing positive connection, and mating buckles provide an economical, secure closure.

How often does the 7009B need to be inspected?

OSHA requires an inspection before each use, and ANSI Z359.11 calls for a formal inspection by a competent person at least annually. Retire the harness immediately if it arrests a fall or fails any inspection point.

When should I replace the 7009B?

FallTech does not impose a fixed shelf life; service life is determined by inspection. Replace the harness after any fall arrest event, when webbing shows cuts, burns, or heavy abrasion, when hardware is damaged, or when the label is no longer legible.

Submittals and Documentation

FallTech 7009B Spec SheetOne-page technical specifications for this product FallTech 7009B Instruction ManualFull user instructions, inspection criteria, and donning procedure FallTech 7009B Declaration of Conformity (ANSI)Manufacturer declaration of conformity to ANSI Z359.11-2014 FallTech 7009B Declaration of Conformity (CSA)Manufacturer declaration of conformity to CSA Z259.10-2018 FallTech 7009B Sizing ChartFallTech harness sizing chart for chest, waist, and thigh measurements

Related FallTech Equipment

Pair this product with compatible FallTech connectors, lanyards, and anchors to build a complete fall protection system with matched components.

Order the FallTech 7009B Today

Every FallTech product we stock ships fast and arrives with full documentation for your safety file. Not sure which size or configuration fits your crew? Our fall protection specialists size body wear every day.

Call 863-703-4522 for expert help Specifying the right body wear for your application, or order online now for delivery based on the delivery location.

FallTech 2-Year Limited Warranty. FallTech warrants to the buyer that all products are free from defects in material and workmanship at the time of shipment. Obligation is limited to product replacement for two (2) years from the date of installation or use by the owner, not to exceed two (2) years from the date of shipment. This warranty is not transferable and is void if the product is changed, altered, or used in a manner other than intended. It covers defects in material and workmanship only; it does not cover normal wear and tear, neglect, abuse, or accident. The limited warranty is provided only to an end-user customer for the period set forth in an order that has been accepted by Fall Protection Distributors, LLC. The end user customer must be: (a) a Buyer purchasing product directly from Fall Protection Distributors, LLC or Buyer of product purchasing from an authorized reseller. The limited warranty covers defects in materials and workmanship in the FallTech product. The limited warranty does not cover problems resulting from external causes such as accident, abuse, misuse, servicing not authorized by Fall Protection Distributors, LLC, usage that is not in accordance with product instructions, failure to follow the product instructions or failure to perform preventive maintenance, problems caused by using accessories, parts, or components not supplied by Fall Protection Distributors, LLC; normal wear and tear; and products with missing or altered service tags or serial numbers. FALL PROTECTION DISTRIBUTORS, LLC’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN PRODUCT IS LIMITED TO REPAIR AND REPLACEMENT OF THE PRODUCT AS SET FORTH IN THIS WARRANTY STATEMENT. EXCEPT AS PROVIDED ABOVE, FALL PROTECTION DISTRIBUTORS, LLC AND ITS SUPPLIERS MAKE NO, AND HEREBY DISCLAIM ALL OTHER, WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
