FallTech Hi-Vis Tradesman Plus

FallTech 7078BHVD Hi-Vis Tradesman Plus 3D Construction Belted Full Body Harness

The FallTech 7078BHVD is a Hi-Vis Tradesman Plus 3D Construction Belted Full Body Harness with high-visibility orange webbing and woven reflective striping, so the harness itself works toward your visibility program. Dorsal and hip D-rings pair fall arrest with work positioning, and the 6 inch waist support positioning pad retains a tool belt.

It meets ANSI Z359.11-2014 and OSHA 1926.502 and 1910.140 per declaration of conformity B0119136 and is offered in the dual-size Small/Med configuration. Every unit ships with the full FallTech documentation package, linked below for your safety submittals.

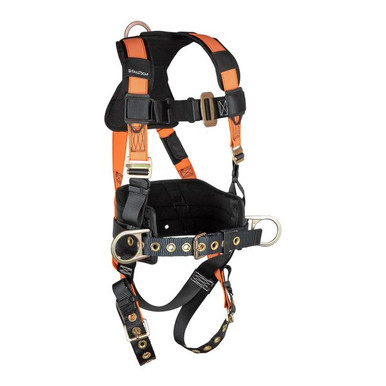

FallTech 7078BHVD Hi-Vis Tradesman Plus 3D Construction Belted Full Body Harness with high-visibility orange webbing and reflective striping

3,600 lbStatic Strength Minimum

130 to 310 lbANSI User Capacity

130 to 425 lbOSHA User Capacity

3 D-RingsDorsal and Hip Placement

5,000 lb webPolyester Webbing Strength

Hi-VisOrange Reflective Webbing

6 in PadWaist Support Positioning

9 GrommetsTongue Buckle Leg Positions

Who Needs This Product

Road, rail, utility, and heavy civil crews who need every layer of visibility they can get. The hi-vis orange webbing with woven reflective striping keeps the harness visible even when a vest rides up or opens, while the belted 3D configuration supports positioning work and a loaded tool belt.

Features

Hi-vis reflective webbing

Features high-visibility orange webbing with woven reflective striping for around-the-clock conspicuity.

Padded yoke and waist support

The integral tri-layer padded shoulder yoke and 6 inch waist support positioning pad provide breathable comfort and retain a tool belt.

Dorsal SRL attachment sleeve

The proprietary dorsal attachment sleeve supports effortless addition of personal SRLs without extra adapters.

Dorsal and hip D-rings

Dorsal and hip D-rings, mating buckle chest, and tongue buckle leg closures are all durably plated alloy steel.

Spring tension roller adjusters

Plated alloy steel low-profile spring tension roller torso adjusters provide simple upper-body adjustment.

9-position tongue buckle legs

Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit.

⚠

Safety first. A full body harness is only one part of a personal fall arrest system. Verify anchorage strength, connector compatibility, and fall clearance before work begins, and never use a harness that has arrested a fall until a competent person removes it from service. When calculating minimum required fall clearance, the FallTech manual adds 1.5 ft for harness stretch and D-ring shift during arrest.

Compliance Standards

ANSI Z359.11-2014

Meets the ANSI/ASSP standard for full body harnesses per declaration of conformity B0119136.

OSHA 1926.502 and 1910.140

Satisfies OSHA construction and general industry requirements for personal fall arrest system body support.

Applications

Road and bridge constructionCrews working near live traffic where visibility and fall protection are both mandatory.

Rail and transit workTrack and platform workers who need reflective conspicuity from every layer of PPE.

Utility and lineman supportGround and structure crews working around vehicles and equipment at night.

Heavy civil projectsExcavation, paving, and structure crews on sites with equipment traffic.

Positioning tradesForm work and rebar crews using the hip D-rings with a positioning lanyard and tool belt.

Night and low-light workAny elevated task where woven reflective striping adds a margin of visibility.

How to Use

Donning a full body harness takes less than a minute once the straps are adjusted to your body.

Inspect first. Check webbing, stitching, D-rings, and buckles for damage before every use. Remove the harness from service if you find cuts, burns, or deformed hardware.
Don the harness. Hold the dorsal D-ring, shake the harness so the straps fall free, and slip it on like a jacket.
Close and adjust. Connect the chest and leg closures, then adjust the torso so the dorsal D-ring sits between the shoulder blades.
Check the fit. You should be able to slide a flat hand, but not a fist, under the leg straps. Tuck loose strap ends into the keepers.
Connect and verify. Attach your lanyard or SRL to the correct D-ring for the task, and verify anchorage and clearance based on the delivery location of the work.

Inspection and Service Life

OSHA requires personal fall protection to be inspected before each use, and ANSI Z359.11 adds a formal inspection by a competent person at least annually. Log formal inspections so the service history follows the harness.

Webbing: look for cuts, fraying, abrasion, burns, chemical damage, and UV fading along every strap
Stitching: check for pulled, broken, or abraded threads, especially at load-bearing junctions
D-rings and hardware: confirm no cracks, sharp edges, corrosion, or distortion, and that buckles engage positively
Labels: verify the label pack is present and legible, including the date of first use
Load indicators: confirm the fall arrest indicator has not deployed

Retire the harness immediately if it has arrested a fall, if any inspection point fails, or if the label is missing or unreadable. Cut the webbing on retired units and destroy retired equipment so it cannot return to service.

Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Type	Belted Full Body Harness
SKU	7078BHVD
Family	Hi-Vis Tradesman Plus
D-Rings	3 (Dorsal, Hip)
Closures	Tongue Buckle Legs and Mating Buckle Chest
Webbing	Hi-vis orange polyester with reflective striping; 5,000 lb min. static strength
D-Ring Hardware	Plated alloy steel; 5,000 lb min. static strength
Buckles and Adjusters	Plated alloy steel; 3,372 lb min. static strength
Static Strength	3,600 lb min.
ANSI User Capacity	130 to 310 lb max.
OSHA User Capacity	130 to 425 lb max.
Standards	ANSI Z359.11-2014; OSHA 1926.502 and 1910.140
Available Configurations	7078BHVDSM (Dual-size Small/Med)
Warranty	FallTech 2-year manufacturer warranty, honored through Fall Protection Distributors

Frequently Asked Questions

What sizes does the 7078BHVD come in?

The 7078BHVD is currently offered in the dual-size Small/Med configuration (SKU 7078BHVDSM). Use the FallTech harness sizing chart in the submittals section to match chest, waist, and thigh measurements before ordering, and confirm fit by adjusting the harness to your body before first use.

What standards does the 7078BHVD meet?

The 7078BHVD complies with ANSI Z359.11-2014 per declaration of conformity B0119136 and OSHA 1926.502 and 1910.140. The declaration lists the dual-size Small/Med configuration offered here.

How many D-rings does the 7078BHVD have and what is each one for?

The 7078BHVD has 3 D-rings: one dorsal and two hip. The dorsal D-ring is the fall arrest connection point for your lanyard or SRL, and the hip D-rings connect a work positioning lanyard so you can work hands-free at the task.

What is the weight capacity of the 7078BHVD?

The ANSI user capacity is 130 to 310 lb max. and the OSHA user capacity is 130 to 425 lb max., including the worker, clothing, and tools. Static strength of the harness is 3,600 lb min.

Does the hi-vis webbing replace a safety vest?

The hi-vis orange webbing with woven reflective striping adds conspicuity, but whether it satisfies your visibility requirement depends on the standard your site enforces. Many crews pair the harness with rated hi-vis apparel; the harness webbing keeps you visible when a vest shifts or opens.

How often does the 7078BHVD need to be inspected?

OSHA requires an inspection before each use, and ANSI Z359.11 calls for a formal inspection by a competent person at least annually. Retire the harness immediately if it arrests a fall or fails any inspection point.

When should I replace the 7078BHVD?

FallTech does not impose a fixed shelf life; service life is determined by inspection. Replace the harness after any fall arrest event, when webbing shows cuts, burns, or heavy abrasion, when hardware is damaged, or when the label is no longer legible.

Submittals and Documentation

FallTech 7078BHVD Spec SheetOne-page technical specifications for this product FallTech 7078BHVD Instruction ManualFull user instructions, inspection criteria, and donning procedure FallTech 7078BHVD Declaration of Conformity (ANSI)Manufacturer declaration of conformity to ANSI Z359.11-2014 FallTech 7078BHVD Sizing ChartFallTech harness sizing chart for chest, waist, and thigh measurements

Related FallTech Equipment

Pair this product with compatible FallTech connectors, lanyards, and anchors to build a complete fall protection system with matched components.

Order the FallTech 7078BHVD Today

Every FallTech product we stock ships fast and arrives with full documentation for your safety file. Not sure which size or configuration fits your crew? Our fall protection specialists size body wear every day.

Call 863-703-4522 for expert help Specifying the right body wear for your application, or order online now for delivery based on the delivery location.

FallTech 2-Year Limited Warranty. FallTech warrants to the buyer that all products are free from defects in material and workmanship at the time of shipment. Obligation is limited to product replacement for two (2) years from the date of installation or use by the owner, not to exceed two (2) years from the date of shipment. This warranty is not transferable and is void if the product is changed, altered, or used in a manner other than intended. It covers defects in material and workmanship only; it does not cover normal wear and tear, neglect, abuse, or accident. The limited warranty is provided only to an end-user customer for the period set forth in an order that has been accepted by Fall Protection Distributors, LLC. The end user customer must be: (a) a Buyer purchasing product directly from Fall Protection Distributors, LLC or Buyer of product purchasing from an authorized reseller. The limited warranty covers defects in materials and workmanship in the FallTech product. The limited warranty does not cover problems resulting from external causes such as accident, abuse, misuse, servicing not authorized by Fall Protection Distributors, LLC, usage that is not in accordance with product instructions, failure to follow the product instructions or failure to perform preventive maintenance, problems caused by using accessories, parts, or components not supplied by Fall Protection Distributors, LLC; normal wear and tear; and products with missing or altered service tags or serial numbers. FALL PROTECTION DISTRIBUTORS, LLC’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN PRODUCT IS LIMITED TO REPAIR AND REPLACEMENT OF THE PRODUCT AS SET FORTH IN THIS WARRANTY STATEMENT. EXCEPT AS PROVIDED ABOVE, FALL PROTECTION DISTRIBUTORS, LLC AND ITS SUPPLIERS MAKE NO, AND HEREBY DISCLAIM ALL OTHER, WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
