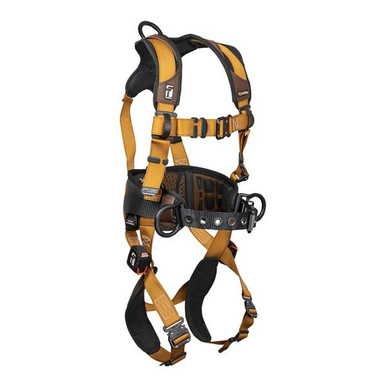

FallTech 7083B ComforTech Gel 3D Construction Belted Harness
The FallTech 7083B is an advanced ComforTech Gel 3D Construction Belted Full Body Harness from the ComforTech Gel family, built around 3 D-rings (dorsal and hip) with polyester webbing rated to 3,600 lb min. static strength.
It meets ANSI Z359.11-2014, OSHA 1926.502 and 1910.140, CSA Z59.10-2018 and is available in 7 size options. Every unit ships with the full FallTech documentation package, linked below for your safety submittals. Buckles and adjusters are aluminum alloy and plated alloy steel with a 3,372 lb minimum static strength, per the FallTech spec sheet.
Who Needs This Product
Crews who need a belted harness with 3 D-rings for positioning-heavy trades like rebar tying and formwork, keeping both hands free at the work face. The ComforTech Gel family is FallTech's answer for this tier of work, and this configuration adds the specific closure and D-ring arrangement listed in the specifications below.
Features
Shoulder yoke, sub-pelvic leg
Shoulder yoke, sub-pelvic leg, and 6" waist support positioning pads feature exclusive gel endoskeleton for unsurpassed user comfort.
Proprietary dorsal attachment sleeve
Proprietary dorsal attachment sleeve supports effortless addition of personal SRLs.
Exclusive aluminum camlock torso
Exclusive aluminum camlock torso adjusters provide simple and secure upper-body fit.
Features lightweight forged aluminum
Features lightweight forged aluminum alloy dorsal and hip D-rings.
Quick-connect chest and leg
Quick-connect chest and leg buckles feature visual indicators showing positive connection.
Includes fully adjustable suspension
Includes fully adjustable suspension trauma relief system.
Safety first. A full body harness is only one part of a personal fall arrest system. Verify anchorage strength, connector compatibility, and fall clearance before work begins, and never use a harness that has arrested a fall until a competent person removes it from service. When calculating minimum required fall clearance, the FallTech manual adds 1.5 ft for harness stretch and D-ring shift during arrest.
Compliance Standards
ANSI Z359.11-2014
Meets the ANSI/ASSP standard for full body harnesses, covering design, testing, and marking requirements.
OSHA 1926.502 and 1910.140
Satisfies OSHA construction and general industry requirements for personal fall arrest system body support.
CSA Z59.10-2018
Independently verified to the listed performance standard.
Applications
How to Use
Donning a full body harness takes less than a minute once the straps are adjusted to your body.
- Inspect first. Check webbing, stitching, D-rings, and buckles for damage before every use. Remove the harness from service if you find cuts, burns, or deformed hardware.
- Don the harness. Hold the dorsal D-ring, shake the harness so the straps fall free, and slip it on like a jacket.
- Close and adjust. Connect the chest and leg closures, then adjust the torso so the dorsal D-ring sits between the shoulder blades.
- Check the fit. You should be able to slide a flat hand, but not a fist, under the leg straps. Tuck loose strap ends into the keepers.
- Connect and verify. Attach your lanyard or SRL to the correct D-ring for the task, and verify anchorage and clearance based on the delivery location of the work.
Inspection and Service Life
OSHA requires personal fall protection to be inspected before each use, and ANSI Z359.11 adds a formal inspection by a competent person at least annually. Log formal inspections so the service history follows the harness.
- Webbing: look for cuts, fraying, abrasion, burns, chemical damage, and UV fading along every strap
- Stitching: check for pulled, broken, or abraded threads, especially at load-bearing junctions
- D-rings and hardware: confirm no cracks, sharp edges, corrosion, or distortion, and that buckles engage positively
- Labels: verify the label pack is present and legible, including the date of first use
- Load indicators: confirm the fall arrest indicator has not deployed
Retire the harness immediately if it has arrested a fall, if any inspection point fails, or if the label is missing or unreadable. Cut the webbing on retired units and destroy retired equipment so it cannot return to service.
Product Video
See the Frontline davit arm system set up for confined-space entry and non-entry rescue retrieval.
Who Needs This Product
This product is a confined space davit system - the rotating retrieval point that lowers and recovers workers and material over an opening. Confined space teams, utilities, and tank crews build their entry and non-entry rescue around it. It requires a rated winch or 3-way SRL, a full body harness, and a written rescue plan to form a complete system.
Features
360-degree boom
Swing the load over the opening and away to the landing zone.
Two integrated pulleys
Run a fall arrest SRL and a retrieval winch line simultaneously.
Permanent base options
Mount to steel, concrete, or a truck bed for mobile rescue.
Made in the USA
Patriot-line build for Buy American specs.
Removable boom
Lift the boom out when the entry point is not in use.
Tank and edge ready
Reaches over tank rims and leading edges.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Belted Full Body Harness |
|---|---|
| SKU | 7083B |
| Family | ComforTech Gel |
| D-Rings | 3 (Dorsal and Hip) |
| Closures | Quick-connect Legs and Chest |
| Webbing | Polyester |
| Static Strength | 3,600 lb min. |
| ANSI User Capacity | 130 to 310 lb max. |
| OSHA User Capacity | 130 to 425 lb max. |
| CSA User Capacity | Up to 350 lb including clothing and tools, per the FallTech manual |
| Standards | ANSI Z359.11-2014; OSHA 1926.502 and 1910.140; CSA Z59.10-2018 |
| Available Configurations | 7083BXS (XS), 7083BS (Small), 7083BM (Medium), 7083BL (Large), 7083BXL (XL), 7083B2X (2X), 7083B3X (3X) |
| Warranty | FallTech 2-year manufacturer warranty, honored through Fall Protection Distributors |
Frequently Asked Questions
Submittals and Documentation
FallTech 7083B Spec SheetOne-page technical specifications for this product FallTech 7083B Instruction ManualFull user instructions, inspection criteria, and donning procedure FallTech 7083B Declaration of ConformityManufacturer declaration of conformity to the listed standards FallTech 7083B Declaration of Conformity (CSA)Manufacturer declaration of conformity to CSA Z259.10 FallTech 7083B Harness Sizing ChartManufacturer sizing chart to match torso and weight to the right sizeRelated FallTech Equipment
- FallTech 7081B Advanced ComforTech Gel 3D Construction Belted Full Body Har
- FallTech 7083BFD Advanced ComforTech Gel 4D Construction Climbing Full Body H
Pair this product with compatible FallTech connectors, lanyards, and anchors to build a complete fall protection system with matched components.
Order the FallTech 7083B Today
Every FallTech product we stock ships fast and arrives with full documentation for your safety file. Not sure which size or configuration fits your crew? Our fall protection specialists size harnesses every day.
Call 863-703-4522 for expert help Specifying the right body wear for your application, or order online now for delivery based on the delivery location.
