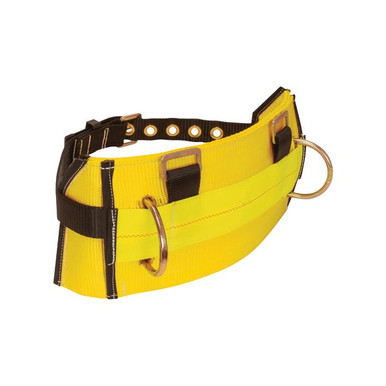

FallTech 8035 Roughneck Pipe Positioning Belly Belt with lower-torso mating buckles for 8006-series and 8007-series derrick harnesses
FallTech

FallTech 8035 Roughneck Belly Belt with Mating Buckles

(No reviews yet) Write a Review
$99.00
Brand:
FallTech
SKU:
8035X
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Roughneck

FallTech 8035 Roughneck Belly Belt with Mating Buckles

The FallTech 8035 is a Roughneck Pipe Positioning Belly Belt with 8 inch heavyweight web construction, a 3 inch anterior support band, and plated alloy steel hardware. Integrated fixed-position frontal D-rings are ideally suited for throwing pipe in monkey board positioning applications.

Lower-torso mating buckles attach the belt to the adjustable straps on FallTech 8006-series and 8007-series derrick harnesses, and 7 adjustment positions provide a 9 inch range of fit. It meets OSHA 1926.502 and 1910.66 regulations and is available in Small and XL. This is a positioning belt, not a fall arrest device, and it must be used with a compliant full body harness system.

FallTech 8035 Roughneck Pipe Positioning Belly Belt with lower-torso mating buckles for 8006-series and 8007-series derrick harnesses
8 in WebHeavyweight Construction
3 in BandAnterior Support
130 to 310 lbANSI User Capacity
130 to 425 lbOSHA User Capacity
5,000 lb webPolyester Webbing Strength
2 SizesSmall and XL
7 Positions9 in Adjustment Range
2 D-RingsFixed Frontal Positioning

Who Needs This Product

Derrickhands running FallTech 8006-series or 8007-series derrick harnesses who need a matching pipe positioning belly belt. The lower-torso mating buckles connect directly to the harness straps, putting the frontal D-rings where the positioning lines need them on the monkey board.

Features

8 inch heavyweight web

8 inch heavyweight web construction with a 3 inch anterior support band spreads positioning loads across the belly.

Fixed frontal D-rings

Integrated fixed-position frontal D-rings are ideally suited for throwing pipe in monkey board positioning applications.

Lower-torso mating buckles

Lower-torso mating buckles attach to the adjustable straps on 8006-series and 8007-series derrick harnesses.

7-position adjustment

Features 7 adjustment positions providing a 9 inch range of fit across each belt size.

Plated alloy steel hardware

Buckles rated to 3,372 lb min. static strength with polyester webbing rated to 5,000 lb min. static strength.

OSHA compliant positioning

Meets OSHA 1926.502 and 1910.66 regulations for work positioning when used with a compliant full body harness.

⚠

Safety first. A body belt is for work positioning and restraint only and must never be used as fall arrest body support. OSHA 1926.502 requires fall arrest connections to be made to the dorsal D-ring of a compliant full body harness, and a positioning system must limit free fall to 2 ft or less. Inspect the belt before each use and never use equipment that has been loaded by a fall until a competent person removes it from service.

Compliance Standards

OSHA 1926.502 and 1910.66

Meets OSHA construction and powered platform regulations for work positioning equipment per FallTech published specifications.

Body Belt Instruction Manual

The FallTech Body Belts manual covers use, limitations, inspection, and the 425 lb capacity for positioning and restraint applications.

Applications

Monkey board pipe handlingDerrickhands throwing pipe with positioning lines on the frontal D-rings.
Drilling rig derrick workPositioning support over 8006-series and 8007-series harnesses.
Workover and service rigsBelly support and positioning during rod and tubing work.
Restraint applicationsKeeping the worker from reaching a fall hazard area per OSHA 1926.502.
Long-duration positioning8 inch web and anterior band spread loads during extended board time.
Fleet standardizationMatching belly belts to 8006-series and 8007-series harnesses across crews.

How to Use

The belly belt installs over a donned and adjusted derrick harness in a few steps.

  1. Inspect first. Check webbing, stitching, D-rings, and buckles for damage before every use. Remove the belt from service if you find cuts, burns, or deformed hardware.
  2. Don the harness first. Put on and adjust your derrick harness completely before adding the belly belt.
  3. Attach the belt. Connect the mating buckles to the matching harness attachment points and center the frontal D-rings.
  4. Adjust the fit. Use the grommeted adjustment positions to snug the belt so it carries load on the anterior support band without restricting breathing.
  5. Connect positioning lines. Attach positioning lanyards to the frontal D-rings only, and keep your fall arrest connection on the harness dorsal D-ring.

Inspection and Service Life

OSHA requires personal fall protection to be inspected before each use, and a competent person should formally inspect positioning equipment at least annually. Log formal inspections so the service history follows the belt.

  • Webbing: look for cuts, fraying, abrasion, burns, chemical damage, and UV fading across the 8 inch web and support band
  • Stitching: check for pulled, broken, or abraded threads, especially at the D-ring and buckle junctions
  • D-rings and hardware: confirm no cracks, sharp edges, corrosion, or distortion, and that mating buckles engage positively
  • Attachment straps: verify the harness connection points and adjustment grommets are intact
  • Labels: verify the label is present and legible, including the date of first use

Retire the belt immediately if it has been loaded by a fall, if any inspection point fails, or if the label is missing or unreadable. Destroy retired equipment so it cannot return to service.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypePipe Positioning Belly Belt
SKU8035
FamilyRoughneck
D-RingsFixed-position frontal positioning D-rings; plated alloy steel (not fall arrest rated)
AttachmentLower-torso mating buckles; fits 8006-series and 8007-series harnesses
WebbingPolyester; 5,000 lb min. static strength; 8 in web with 3 in anterior support band
BucklesPlated alloy steel; 3,372 lb min. static strength
Adjustment7 positions; 9 in range of fit
ANSI User Capacity130 to 310 lb max.
OSHA User Capacity130 to 425 lb max.
StandardsOSHA 1926.502 and 1910.66
Available Configurations8035S (Small), 8035XL (XL)
WarrantyFallTech 2-year manufacturer warranty, honored through Fall Protection Distributors

Frequently Asked Questions

What sizes does the 8035 come in?
The 8035 is currently available in 2 size options: Small and XL. Each size offers 7 adjustment positions providing a 9 inch range of fit, so size the belt to your waist measurement over work clothing.
Which harnesses does the 8035 fit?
The 8035 is built for FallTech 8006-series and 8007-series derrick harnesses. Its lower-torso mating buckles connect to the adjustable straps on those harnesses so the belt stays positioned during pipe handling.
Is the 8035 a fall arrest device?
No. The 8035 is a work positioning belly belt, and its frontal D-rings are for positioning lines only. Fall arrest protection must come from a compliant full body harness with the arrest connection on the dorsal D-ring, per OSHA 1926.502.
What is the difference between the 8035 and the 8031?
The 8035 uses lower-torso mating buckles that attach to the adjustable straps on 8006-series and 8007-series harnesses. The 8031 adds adjustable upper-torso mating buckles and connecting straps for attachment to 8021-series harnesses.
What is the weight capacity of the 8035?
FallTech lists an ANSI user capacity of 130 to 310 lb max. and an OSHA user capacity of 130 to 425 lb max., including the worker, clothing, and tools. The FallTech Body Belts manual lists a 425 lb capacity for positioning applications.
How often does the 8035 need to be inspected?
OSHA requires an inspection before each use, and a competent person should formally inspect the belt at least annually. Check the 8 inch web for cuts, abrasion, and chemical damage, and confirm the frontal D-rings and mating buckles are free of cracks and distortion.
When should I replace the 8035?
Service life is determined by inspection. Replace the belt when webbing shows cuts, burns, or heavy abrasion, when hardware is cracked, corroded, or distorted, when stitching is pulled or broken, or when the label is no longer legible.

Submittals and Documentation

FallTech 8035 Spec SheetOne-page technical specifications for this product FallTech 8035 Instruction ManualFallTech Body Belts manual with use, inspection, and capacity information

Related FallTech Equipment

Pair this product with compatible FallTech connectors, lanyards, and anchors to build a complete fall protection system with matched components.

Order the FallTech 8035 Today

Every FallTech product we stock ships fast and arrives with full documentation for your safety file. Not sure which size or configuration fits your crew? Our fall protection specialists size body wear every day.

Call 863-703-4522 for expert help Specifying the right body wear for your application, or order online now for delivery based on the delivery location.

FallTech 2-Year Limited Warranty. FallTech warrants to the buyer that all products are free from defects in material and workmanship at the time of shipment. Obligation is limited to product replacement for two (2) years from the date of installation or use by the owner, not to exceed two (2) years from the date of shipment. This warranty is not transferable and is void if the product is changed, altered, or used in a manner other than intended. It covers defects in material and workmanship only; it does not cover normal wear and tear, neglect, abuse, or accident. The limited warranty is provided only to an end-user customer for the period set forth in an order that has been accepted by Fall Protection Distributors, LLC. The end user customer must be: (a) a Buyer purchasing product directly from Fall Protection Distributors, LLC or Buyer of product purchasing from an authorized reseller. The limited warranty covers defects in materials and workmanship in the FallTech product. The limited warranty does not cover problems resulting from external causes such as accident, abuse, misuse, servicing not authorized by Fall Protection Distributors, LLC, usage that is not in accordance with product instructions, failure to follow the product instructions or failure to perform preventive maintenance, problems caused by using accessories, parts, or components not supplied by Fall Protection Distributors, LLC; normal wear and tear; and products with missing or altered service tags or serial numbers. FALL PROTECTION DISTRIBUTORS, LLC’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN PRODUCT IS LIMITED TO REPAIR AND REPLACEMENT OF THE PRODUCT AS SET FORTH IN THIS WARRANTY STATEMENT. EXCEPT AS PROVIDED ABOVE, FALL PROTECTION DISTRIBUTORS, LLC AND ITS SUPPLIERS MAKE NO, AND HEREBY DISCLAIM ALL OTHER, WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
