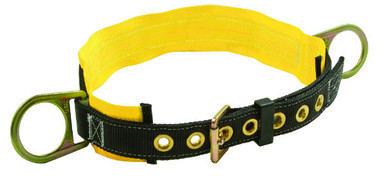

FallTech 7060 FT Basic 2D Work Positioning Body Belt
The FallTech 7060 fT Basic 2D Work Positioning Body Belt supports your fall protection program as part of the FT Basic Body Belt line.
Specifications, ratings, and documentation are provided below so you can verify fit with your existing equipment before ordering. It is covered by the FallTech 2-year warranty and ships quickly based on the delivery location.
Who Needs This Product
Tradesmen who need hands-free positioning on rebar, poles, and vertical structures. This product supports that program as a purpose-built component: FT Basic 2D Work Positioning Body Belt.
Features
Features 3" x 25"
Features 3" x 25" heavy-duty web waist support positioning strap.
Ideally suited for addition
Ideally suited for addition to non-belted full body harnesses.
Includes plated alloy steel
Includes plated alloy steel D-rings and belt buckle with brass grommets.
Fixed-position non-removable belt features
Fixed-position non-removable belt features 7 adjustment positions providing a 9" range of fit.
Complies with ANSI Z359.11-2014
Complies with ANSI Z359.11-2014.
Safety first. A body belt alone is never acceptable for fall arrest. Use this belt for positioning or restraint only, and always pair it with a full body harness and a separate fall arrest connection when a fall hazard exists.
Compliance Standards
ANSI Z359.11-2014
Meets the ANSI/ASSP standard for full body harnesses, covering design, testing, and marking requirements.
OSHA 1926.502 and 1910.66
Satisfies OSHA construction and general industry requirements for personal fall arrest system body support.
Applications
How to Use
A work positioning belt supports the worker for hands-free tasks and always works alongside, never instead of, fall arrest protection.
- Inspect first. Check the belt body, D-rings, tongue buckle, and grommets for wear or deformation before each shift.
- Position the belt. Seat the belt on the hips so the side D-rings fall at natural hand height.
- Buckle and adjust. Fasten the buckle and tension the belt so it stays put without restricting movement.
- Rig for positioning. Connect a positioning lanyard to both side D-rings around the structure.
- Verify before loading. Lean back gradually to load the system, keeping fall arrest protection connected separately.
Inspection and Service Life
Inspect before each use and on the same formal schedule as the harness it supports. Log formal inspections so the service history follows the equipment.
- Webbing and fabric: look for cuts, fraying, burns, chemical damage, and UV fading
- Stitching: check for pulled, broken, or abraded threads at every seam
- Hardware: confirm no cracks, corrosion, or distortion, and that buckles and closures engage positively
- Attachment points: verify hook-and-loop, snaps, and routings hold securely
- Markings: verify identification and size markings remain legible
Remove the item from service if any inspection point fails, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Fixed Belt |
|---|---|
| SKU | 7060 |
| ANSI User Capacity | 130 to 310 lb max. |
| OSHA User Capacity | 130 to 425 lb max. |
| Webbing | Polyester; 5,000 lb min. static strength |
| D-rings | Plated alloy steel; 5,000 lb min. static strength |
| Standards | ANSI Z359.11-2014; OSHA 1926.502 and 1910.66 |
| Available Configurations | 7060S (Small), 7060M (Medium), 7060L (Large), 7060XL (XL) |
| Warranty | FallTech 2-year manufacturer warranty, honored through Fall Protection Distributors |
Frequently Asked Questions
Submittals and Documentation
FallTech 7060 Spec SheetOne-page technical specifications for this product FallTech 7060 Instruction ManualFull user instructions, inspection criteria, and donning procedure FallTech 7060 Declaration of ConformityManufacturer declaration of conformity to the listed standardsRelated FallTech Equipment
- FallTech 7055 Standard 2D Work Positioning Body Belt
- FallTech 7056 Premium 2D Work Positioning Body Belt, 4" x 25"
Pair this product with compatible FallTech connectors, lanyards, and anchors to build a complete fall protection system with matched components.
Order the FallTech 7060 Today
Every FallTech product we stock ships fast and arrives with full documentation for your safety file. Not sure which size or configuration fits your crew? Our fall protection specialists size harnesses every day.
Call 863-703-4522 for expert help Specifying the right body wear for your application, or order online now for delivery based on the delivery location.
