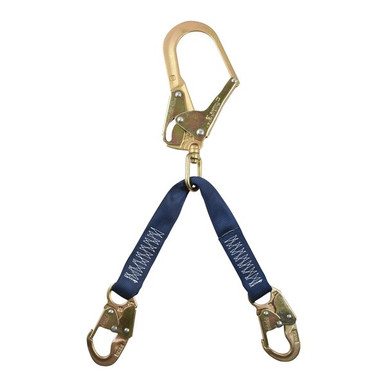

FallTech Rebar Positioning Assembly, Jacketed Web
Jacketed dual-layer polyester web construction delivers durability and lighter weight. Features swiveling steel rebar hook for vertical rebar connection.
Swivel function provides improved hook orientation at awkward angles of vertical and horizontal movement. Includes steel snap hooks for hip D-ring attachment.
Who Needs This Product
Rodbusters and tower hands work with both hands because a positioning assembly carries their weight against the structure. Rebar positioning chains and webs connect hip D-ring to hip D-ring around the bar, with swivel hooks that follow body movement. Positioning is always used with a separate fall arrest system.
Features
Jacketed dual-layer polyester web construction
Jacketed dual-layer polyester web construction delivers durability and lighter weight.
Features swiveling steel rebar hook
Features swiveling steel rebar hook for vertical rebar connection.
Swivel function provides improved hook
Swivel function provides improved hook orientation at awkward angles of vertical and horizontal movement.
Includes steel snap hooks for
Includes steel snap hooks for hip D-ring attachment.
Rebar hook features transverse load
Rebar hook features transverse load rated gate.
Complies
Complies with ANSI Z359.3-2017.
Positioning is not fall arrest. OSHA limits positioning systems to 2 ft of free fall and requires an independent fall arrest system. Run your SRL or Y-leg lanyard above the positioning assembly at all times.
Compliance Standards
ANSI Z359.3-2017
Applicable requirement for this equipment: ANSI Z359.3-2017.
OSHA 1926.502
Construction fall protection criteria for personal fall arrest system components, including connectors, lanyards, and lifelines.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Connect hip to hip. The assembly runs from one hip D-ring, around the structure, to the other hip D-ring.
- Set the length. Choose the connection point or adjuster setting that holds you at working distance.
- Lean and work. The assembly carries your weight; both hands stay on the work.
- Keep arrest separate. Positioning is not fall arrest. A separate SRL or lanyard protects against a fall.
- Inspect the swivels. Hooks must rotate freely and gate-lock positively.
Inspection and Retirement
Inspect before each use, with a documented competent person inspection at least annually.
- Chain or web: deformed links, cuts, jacket damage.
- Swivel hooks: rotation smooth, gates lock, no cracks.
- Connectors: no corrosion or wear grooves.
Retirement triggers: any fall loading, deformed links, hook damage, or a failed inspection.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Rebar Positioning Lanyard |
|---|---|
| SKU | 8250WX |
| Static Strength | 5,000 lb min. |
| ANSI User Capacity | 130 to 310 lb max. |
| OSHA User Capacity | 130 to 425 lb max. |
| Webbing | Polyester; 5,000 lb min. static strength |
| Connectors | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Available Configurations | 8250W (23 in, Swivel), 825012W (19 in, Swivel), 8250LTW (24 in, Non-Swivel), 8250LTWA (24 in, Aluminum Hooks) |
| Standards | ANSI Z359.3-2017; OSHA 1926.502 and 1910.66 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 8250W Submittals and Documentation
8250WX Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 8250WX Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 8250WX Declaration of Conformity (8250LTW) (PDF)Manufacturer conformity certification for compliance files and submittal packages. 8250WX Spec Sheet (PDF)Full specifications, features, and compliance summary for submittal packages.Complete Your Fall Protection System
