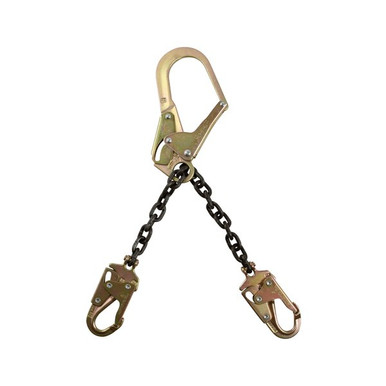

FallTech 8250LT Rebar Positioning Assembly, Chain, Non-Swivel with 21 in
FallTech

FallTech Rebar Positioning Assembly, Chain, Non-Swivel

(No reviews yet) Write a Review
$130.50 - $216.00
Brand:
FallTech
SKU:
8250LX
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Positioning

FallTech Rebar Positioning Assembly, Chain, Non-Swivel

Built with heavy-duty 9/32" Grade 80 welded-link chain. Features standard steel rebar hook for vertical rebar connection.

Includes steel clevis snap hooks for hip D-ring attachment. Rebar hook features transverse load rated gate.

FallTech 8250LT Rebar Positioning Assembly, Chain, Non-Swivel
5,000 lbStatic Strength
310 lbANSI User Capacity
425 lbOSHA User Capacity
9/32 inChain
Z359.3-17Standard: ANSI
PositioningWith Separate Arrest
3Configuration Options
4.5 lbUnit Weight

Who Needs This Product

Rodbusters and tower hands work with both hands because a positioning assembly carries their weight against the structure. Rebar positioning chains and webs connect hip D-ring to hip D-ring around the bar, with swivel hooks that follow body movement. Positioning is always used with a separate fall arrest system.

Features

Built

Built with heavy-duty 9/32" Grade 80 welded-link chain.

Features standard steel rebar hook

Features standard steel rebar hook for vertical rebar connection.

Includes steel clevis snap hooks

Includes steel clevis snap hooks for hip D-ring attachment.

Rebar hook features transverse load

Rebar hook features transverse load rated gate.

Complies

Complies with ANSI Z359.3-2017.

⚠

Positioning is not fall arrest. OSHA limits positioning systems to 2 ft of free fall and requires an independent fall arrest system. Run your SRL or Y-leg lanyard above the positioning assembly at all times.

Compliance Standards

ANSI Z359.3-2017

Applicable requirement for this equipment: ANSI Z359.3-2017.

OSHA 1926.502

Construction fall protection criteria for personal fall arrest system components, including connectors, lanyards, and lifelines.

Typical Applications

Rebar tyingHands-free positioning on vertical curtain steel.
FormworkPositioning on wall forms and columns.
Tower workPositioning at the workstation on towers and poles.
Transmission structuresBelt-based positioning per utility rules.

How to Use

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Connect hip to hip. The assembly runs from one hip D-ring, around the structure, to the other hip D-ring.
  2. Set the length. Choose the connection point or adjuster setting that holds you at working distance.
  3. Lean and work. The assembly carries your weight; both hands stay on the work.
  4. Keep arrest separate. Positioning is not fall arrest. A separate SRL or lanyard protects against a fall.
  5. Inspect the swivels. Hooks must rotate freely and gate-lock positively.

Inspection and Retirement

Inspect before each use, with a documented competent person inspection at least annually.

  • Chain or web: deformed links, cuts, jacket damage.
  • Swivel hooks: rotation smooth, gates lock, no cracks.
  • Connectors: no corrosion or wear grooves.

Retirement triggers: any fall loading, deformed links, hook damage, or a failed inspection.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypeRebar Positioning Lanyard
SKU8250LX
Static Strength5,000 lb min.
ANSI User Capacity130 to 310 lb max.
OSHA User Capacity130 to 425 lb max.
Chain9/32" grade 80 steel; 5,000 lb min. static strength
ConnectorsPlated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Available Configurations8250LT (21 in), 8250LT10LK (17 in), 8250LTX (21 in, Extra Reach)
StandardsANSI Z359.3-2017; OSHA 1926.502 and 1910.66
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

How does a rebar positioning assembly work?
It connects hip D-ring to hip D-ring around the bar or structure, carrying your weight so both hands work free. Swivel hook versions rotate with your body to prevent chain twist.
Is positioning the same as fall arrest?
No. OSHA treats positioning as a separate system limited to 2 ft of free fall, and you still need independent fall arrest, typically an SRL or Y-leg lanyard, above it.
Chain or jacketed web?
Chain shrugs off rebar wire, sparks, and abrasion for years. Jacketed web is lighter on the hips for long shifts. Both carry the same positioning ratings.
Swivel or non-swivel hooks?
Swivels follow your body as you lean and rotate, keeping the assembly flat. Non-swivel versions are simpler and lighter. High-production rodbusters usually run swivels.
Who is Fall Protection Distributors?
Fall Protection Distributors, LLC is an authorized FallTech dealer. Every product ships new, boxed, and warrantied.
How quickly does this ship?
Usually ships in 1 business day from our warehouse. Delivery time is based on the delivery location.
What warranty applies?
FallTech provides a 2-year limited warranty against defects in materials and workmanship, and Fall Protection Distributors passes that warranty through to you.

FallTech 8250LT Submittals and Documentation

8250LX Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 8250LX Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 8250LX Spec Sheet (PDF)Full specifications, features, and compliance summary for submittal packages.

Complete Your Fall Protection System

Specifying Lanyards and Connectors for Your Crew?

Hook styles, free fall ratings, webbing families, and clearances: call us and we will match the connector to the trade before it ships. Confirm your application with us and we will make sure every component matches before it ships.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech provides a 2-year limited warranty against defects in materials and workmanship on the FallTech product. The warranty is void if the product is altered, misused, or damaged by neglect, abuse, or accident, and it excludes normal wear. Fall Protection Distributors, LLC passes through the manufacturer warranty to the original purchaser.
