Swivel Rebar Positioning Device, 24 in Chain Assembly

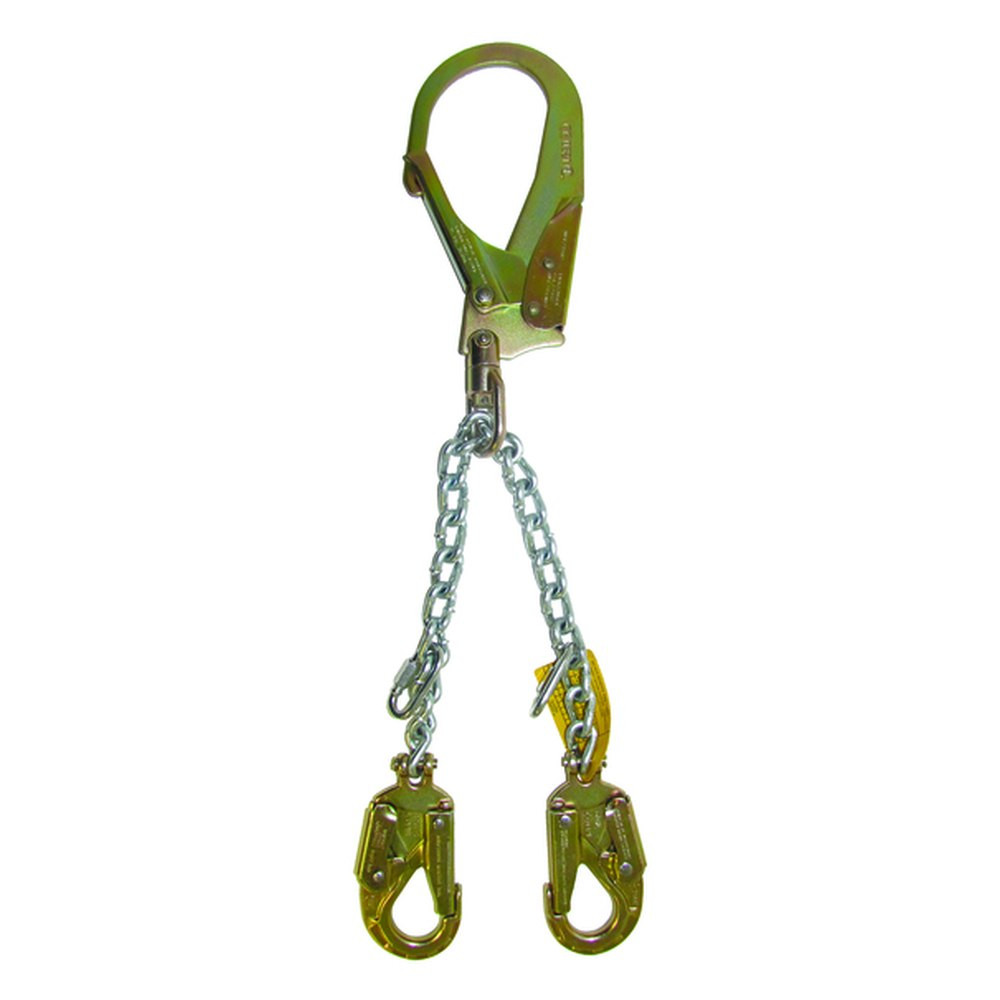

The Guardian 01616 is the ironworker positioning classic: a 24 in steel chain assembly with a swivel and large-throat rebar hooks that wraps the wall, connects to both hip D-rings, and holds the worker at the steel with both hands free to tie.
Used as a positioning device with a separate fall arrest system per OSHA 1926.502, at the capacities in the manual.
Who Needs This Product
Chain survives what webbing cannot: rebar positioning grinds gear against steel wire all day, and the 01616 is built from links and swivels for exactly that life. Positioning holds the worker; a separate arrest system, SRL or lanyard to an independent anchor, backs it up per the standard.
Features
Small profile and highly transportable
Small profile and highly transportable
Adjustable quick-links allow for length adjustme
Adjustable quick-links allow for length adjustment of the ends that attach to side D-rings
Chain lifeline is extremely durable and rugged
Chain lifeline is extremely durable and rugged
Multiple hook options available
Multiple hook options available
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Documented compliance
Full manufacturer documentation is linked on this page for submittal packages.
Technical Specifications
| SKU | 01616 |
|---|---|
| Product weight | 4 lbs |
| Dimensions | 12 in L x 5.5 in W x 1 in H |
| Standards | OSHA 1910.140, OSHA 1926.502, ANSI Z359.3-17 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Account for the full system in your clearance. Total fall distance includes lanyard length, energy absorber deployment, harness stretch, and worker height below the D-ring. The anchorage must withstand 5,000 lbs or maintain a 2:1 safety factor. Never work with the harness D-ring above the anchor unless the application specifically permits it.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.3-17
This product is compliant with ANSI Z359.3-17 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian lanyard instruction manual. The sequence below is an overview only.
- Inspect first. Check webbing, stitching, energy absorber, and hooks before every use.
- Connect the absorber end. Attach the energy absorbing end to the dorsal D-ring of the full body harness.
- Connect the anchor end. Attach the free end to a compliant anchorage connector rated 5,000 lbs or engineered with a 2:1 safety factor.
- Verify the gates. Confirm every hook gate is fully closed and locked, with no side loading.
- Check clearance. Verify fall clearance below the work surface including free fall, deployment, and harness stretch.
- Limit free fall. Position the anchor to keep free fall at 6 ft or less and minimize swing fall hazards.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the lanyard from service for any of the conditions below.
- Webbing: cuts, fraying, abrasion, burns, chemical damage, or UV fading.
- Stitching: broken, pulled, or abraded threads.
- Energy absorber: any deployment, torn cover, or elongation.
- Hooks: cracks, corrosion, deformation, or gates that do not close and lock automatically.
- Labels: missing or illegible.
Retirement triggers: any fall arrest event, any absorber deployment, or any condition where the inspector cannot positively verify the lanyard is fit for service.
