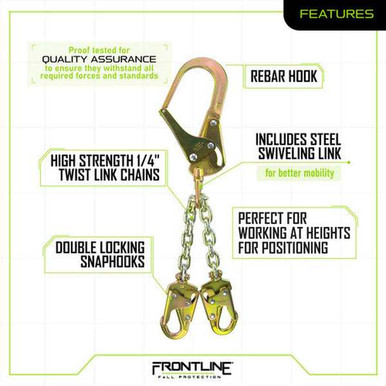

PSSW2R Rebar Positioning Chain Assembly with Swivel
The Frontline PSSW2R is the rodbuster's positioning workhorse: a double Y-shaped assembly of high tensile Grade 80 chain with a swivel rebar hook at the union and forged clevis snap hooks at the harness ends. The swivel kills chain twist as you work down the curtain.
Alloy steel throughout - zinc plated, deburred, and polished - with 0.31 in chain links and a minimum tensile strength of 5,000 lbs. SATRA tested to ANSI Z359.3-2017 for lanyard and positioning lanyard performance, aligning with OSHA 1926.502 and 1910.66.
Who Needs This Product
This product is a rebar positioning chain assembly - the ironworker's third hand. Clip the swivel rebar hook to the curtain, lean back into the harness side D-rings, and both hands are free to tie. Chain shrugs off the hot, abrasive, torch-adjacent work that destroys webbing positioning devices. Use with a harness positioning system; a separate fall arrest system is still required.
Features
Swivel union
The rebar hook swivels, so the chain never winds up as you move.
Grade 80 chain
0.31 in high tensile links - the strength class rigging chains use.
Forged clevis snap hooks
Positive harness connections at both side D-rings.
Deburred and polished
No sharp edges chewing gloves or webbing.
Chain beats webbing here
Slag, torch heat, and rebar abrasion cannot retire it early.
SATRA tested
Independent lab testing to ANSI Z359.3-2017.
Technical Specifications
| SKU | PSSW2R |
|---|---|
| Type | Rebar positioning chain assembly, double Y-shape with swivel |
| Chain | Grade 80, 0.31 in links, high tensile strength |
| Union | Swivel rebar hook |
| Harness ends | Forged clevis snap hooks |
| Material | Alloy steel, zinc plated, deburred and polished |
| Min tensile strength | 5,000 lbs |
| User capacity | 310 lbs |
| Standards | ANSI Z359.3-2017 (SATRA tested); OSHA CFR 1926.502; OSHA CFR 1910.66 |
Positioning is not fall arrest. A positioning chain holds you in place at the work - it does not catch a fall. OSHA requires an independent personal fall arrest system in addition to positioning. Inspect the chain, hooks, and swivel before each use, and connect only per the Frontline manual.
Compliance Standards
ANSI Z359.3-2017
American National Standard for positioning and travel restraint - SATRA third-party test report linked in Submittals.
OSHA 29 CFR 1926.502
Federal construction fall protection criteria, including positioning device requirements.
OSHA 29 CFR 1910
General industry requirements (CFR 1910.66 per spec sheet).
Typical Applications
How to Use the PSSW2R
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check chain, hooks, swivel, and gates before each use.
- Connect to the work. Clip the swivel rebar hook over the rebar or member.
- Connect to the harness. Snap the side hooks to both positioning D-rings.
- Load and lean. Set your stance and lean into the system - hands free.
- Keep arrest separate. Maintain your independent fall arrest connection at all times.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Chain links: stretch, deformation, nicks, gouges, or corrosion.
- Hooks: deformation, cracks, corrosion, or gates that fail to close and double-lock.
- Swivel: free rotation, no play or cracking at the bearing.
- Connection points: wear at the union and end fittings.
- Markings: labels must be present and legible.
Retire the assembly immediately after any fall event, any dropped-load shock, or if any inspection point fails. Destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Frontline PSSW2R Submittals and Documentation
Frontline PSSW2R Spec Sheet (PDF)Chain grade, hardware, strength, and standards. Frontline PSSW2R User Manual (PDF)Work positioning device use, limitations, inspection, and retirement. Frontline PSSW2R Test Report (PDF)SATRA third-party test results to ANSI Z359.3-2017. Frontline Catalog (PDF)The full Frontline Fall Protection product catalog.Compatible and Related Products
- Frontline PSSW2R-US Patriot Positioning Chain (Made in USA). The Made-in-USA Patriot version.
- Frontline LIS62R Twin Leg Rebar Lanyard. The fall arrest connection to pair with positioning.
- Frontline 100CTB Combat Construction Harness. The construction harness to complete the system.
Outfitting Rodbusters?
Positioning chains, twin leg lanyards, and harnesses work as a system. Confirm your application, anchorage, and clearance with us and we will walk through the kit list so the right equipment ships together.
Call 863-703-4522 to talk to a fall protection specialist.
