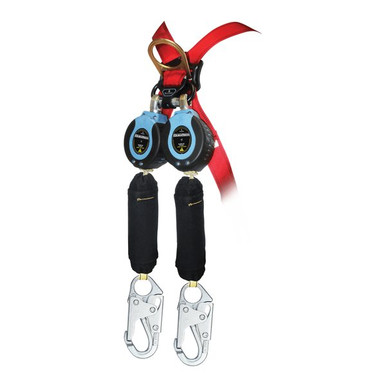

FallTech 9' Arc Flash MAX Personal SRL, Twin-Leg
The 82909 9 ft Arc Flash MAX SRL, Twin-Leg is a 9' Arc Flash MAX personal self-retracting device (SRL-P), a twin-leg 100 percent tie-off SRD whose arc-rated Kevlar web lifeline retracts and pays out as you move and locks to arrest a fall quickly.
It is certified to ANSI Z359.14-2012, for one worker up to 310 lb. Choose the connector configuration for your anchor and harness. It is arc-rated for electrical and arc-flash work.
Who Needs This Product
This product is a personal self-retracting device (SRL-P), the connecting component of a personal fall arrest system. A worker wears the SRD on the harness dorsal (or ties it off overhead) and the retractable arc-rated Kevlar web lifeline pays out and retracts, locking to arrest a fall. This twin-leg version gives 100 percent tie-off for continuous connection while moving between anchor points. It is arc-rated for work near electrical and arc-flash hazards. You still need a certified full-body harness and a rated anchorage.
Features
Retractable Kevlar lifeline
The 9' lifeline pays out and retracts with movement and locks to arrest a fall quickly.
ANSI Z359.14-2012
Certified self-retracting device, Class A.
100 percent tie-off
Two retractable legs keep you connected while moving between anchors.
Choose your connectors
Configure the housing and anchor-end connectors for your setup.
Arc-rated Kevlar lifeline
The Kevlar web lifeline resists heat and arc-flash exposure far better than standard web, for electrical work.
Standard overhead use
A non-leading-edge SRD for overhead anchorage; use an edge-rated device for sharp edges.
Arc-rated, Class A, non-leading-edge. The Kevlar web resists arc flash but is not fireproof; follow your arc-flash and electrical safety program. Anchor overhead or up to 5 ft below the dorsal D-ring with no edge hazard; use an edge-rated device for sharp edges. Confirm required fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.14-2012
Self-retracting device standard (Class A).
ANSI A10.32
Construction fall protection standard.
OSHA 29 CFR 1926.502
Federal construction fall protection requirements.
Non-leading-edge
For overhead anchorage; not for sharp edges.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the lifeline, retraction, lock, housing, and connectors before each use.
- Mount the SRD. Connect the housing to your harness dorsal (SRL-P) or a rated overhead anchor.
- Connect the lifeline. Attach the lifeline connector(s) to a rated anchor.
- Check the lock. Pull the lifeline sharply to confirm it locks, then let it retract smoothly.
- Confirm clearance. Verify required fall clearance and swing-fall with the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Lifeline: cuts, fraying, burns, chemical damage.
- Retraction and lock: a lifeline that will not retract or lock on a sharp pull.
- Housing and hardware: cracks, deformation, or corrosion.
- Connectors and hooks: bent gates, corrosion, or gates that will not lock.
- Labels: illegible or missing markings.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 9' Arc Flash MAX personal SRL-P (twin-leg) |
|---|---|
| Standard | ANSI Z359.14-2012 |
| Classification | Class A |
| Edge rating | Non-leading-edge (standard overhead) |
| Lifeline | 9' arc-rated Kevlar web |
| Capacity | 130 to 310 lb (ANSI); higher OSHA capacity per manual |
| Configuration | Twin-leg, 100 percent tie-off |
| Arc rating | Arc-rated Kevlar web for electrical and arc-flash work |
| Standards | ANSI Z359.14-2012; ANSI A10.32; OSHA 1926.502 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech twin Submittals and Documentation
82909 Instruction Manual (PDF)Use, capacity, arrest distance, and inspection. 82909 Declaration of Conformity (PDF)Certification to ANSI Z359.14-2012 (FallTech test lab). 82909 Spec Sheet (PDF)One-page specifications and compliance summary.Related Anchors
