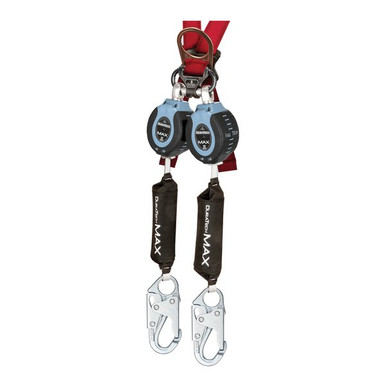

FallTech 9' DuraTech MAX Personal SRL, Twin-Leg
The 82709 9 ft DuraTech MAX SRL is a 9' DuraTech MAX web personal self-retracting device (SRL-P), a twin-leg 100 percent tie-off SRD whose web lifeline retracts and pays out as you move and locks to arrest a fall in a short distance.
It is certified to ANSI Z359.14-2012 (Class A) for standard overhead use, for one worker up to 310 lb. Choose the connector configuration for your anchor and harness. This is a non-leading-edge device; use an edge-rated SRL for sharp edges.
Who Needs This Product
This product is a personal self-retracting device (SRL-P), the connecting component of a personal fall arrest system. A worker wears the SRD on the harness dorsal (or ties it off overhead) and the retractable web lifeline pays out and retracts, locking to arrest a fall. This twin-leg version gives 100 percent tie-off for continuous connection while moving between anchor points. You still need a certified full-body harness and a rated anchorage.
Features
Retractable web lifeline
The 9' web lifeline pays out and retracts with movement and locks to arrest a fall quickly.
ANSI Z359.14-2012
Certified self-retracting device meeting the Class A 24-inch maximum arrest distance.
100 percent tie-off
Two retractable legs keep you connected while moving between anchors.
Choose your connectors
Configure the housing and anchor-end connectors (swivel eye, carabiner, snap, or rebar hooks) for your setup.
Steel or aluminum options
Aluminum hook options cut weight; steel options maximize durability. Both are rated.
Standard overhead use
A non-leading-edge SRD for overhead anchorage; use an edge-rated device for sharp edges.
Non-leading-edge SRD, twin-leg 100 percent tie-off. This device is certified to ANSI Z359.14-2012 (Class A) for standard overhead use and is NOT rated for sharp or leading edges. Anchor overhead or up to 5 ft below the dorsal D-ring where no edge hazard exists; for edges use a leading-edge (Class 2) device. Confirm required fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.14-2012
Self-retracting device standard (Class A, 24-inch max arrest distance).
ANSI A10.32
Construction fall protection standard.
OSHA 29 CFR 1926.502
Federal construction fall protection requirements.
Non-leading-edge
For overhead anchorage; not rated for sharp edges.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the web lifeline, retraction, lock, housing, and connectors before each use.
- Mount the SRD. Connect the housing to your harness dorsal (SRL-P) or a rated overhead anchor.
- Connect the lifeline. Attach the lifeline hook(s) to a rated anchor (or the harness if anchor-mounted).
- Check the lock. Pull the lifeline sharply to confirm it locks, then let it retract smoothly.
- Confirm clearance. Verify required fall clearance and swing-fall with the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Web lifeline: cuts, fraying, burns, or chemical damage.
- Retraction and lock: a lifeline that will not retract or lock on a sharp pull.
- Housing and hardware: cracks, deformation, or corrosion.
- Connectors and hooks: bent gates, corrosion, or gates that will not lock.
- Labels: illegible or missing markings.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 9' DuraTech MAX web personal SRL-P (twin-leg) |
|---|---|
| Standard | ANSI Z359.14-2012 (Class A, 24-inch max arrest distance) |
| Edge rating | Non-leading-edge (standard overhead use) |
| Lifeline | 9' web |
| Capacity | 130 to 310 lb (ANSI); higher OSHA capacity per manual |
| Configuration | Twin-leg, 100 percent tie-off |
| Standards | ANSI Z359.14-2012; ANSI A10.32; OSHA 1926.502 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 82709 Submittals and Documentation
82709 Instruction Manual (PDF)Use, capacity, arrest distance, and inspection. 82709 Declaration of Conformity (PDF)Certification to ANSI Z359.14-2012 (FallTech test lab). 82709 Spec Sheet (PDF)One-page specifications and compliance summary.Related Anchors
- FallTech steel and beam anchors. See the full beam clamp and steel anchor line.
- FallTech fall protection equipment. Harnesses, SRLs, lanyards, and anchors.
Specifying SRLs for Your Crew?
The right SRD depends on the anchor position, the edge, the connectors, and the fall clearance below. Confirm your application with us and we will help you pick the leg count and connector configuration.
Call 863-703-4522 to talk to a fall protection specialist.
