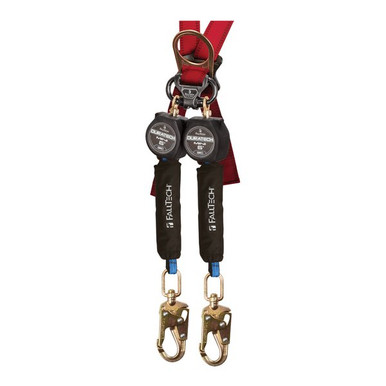

FallTech 6' DuraTech Mini Personal SRL, Twin-Leg
The FallTech 72706 twin-leg is a 6-foot DuraTech Mini personal self-retracting device (SRL-P) with two retractable web legs for 100 percent tie-off. As you move between anchor points, one leg stays connected at all times, so you are never unprotected.
It is certified to ANSI Z359.14-2021 as a Class 1 SRL-P for one worker up to 310 lb. Choose the connector configuration (steel SRD connector or carabiner at the dorsal, with steel or aluminum rebar or snap hooks at the anchors).
Who Needs This Product
This product is a personal self-retracting device (SRL-P), the connecting component of a personal fall arrest system. A worker wears the compact SRD on the harness dorsal connection (or ties it off overhead) and the retractable web lifeline pays out and retracts with movement, locking to arrest a fall. This twin-leg version gives 100 percent tie-off for continuous connection while moving between anchor points. You still need a certified full-body harness and a rated anchorage.
Features
100 percent tie-off
Two retractable legs keep you connected while moving between anchors.
Compact personal SRD
Twin DuraTech Mini SRL-P mounts at the harness dorsal for hands-free protection.
Retractable web legs
Each leg pays out and retracts with movement and locks to arrest a fall quickly.
Class 1 rated
Certified to ANSI Z359.14-2021 for overhead or up to 5 ft below-D-ring tie-off without edges.
Choose your connectors
Steel SRD connector or carabiner at the dorsal, with steel or aluminum rebar or snap hooks at the anchors.
Aluminum options
Lightweight aluminum hook options reduce the twin-leg weight you carry all day.
Class 1 SRL-P, mind the tie-off position and edges. This device is certified Class 1. It may be anchored overhead or up to 5 ft below the dorsal D-ring where no edge hazard exists; below-D-ring or leading-edge use outside that range requires an edge-rated device. Confirm required fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.14-2021
American National Standard for self-retracting devices. Class 1 SRL-P.
ANSI A10.32-2012
Construction fall protection standard.
OSHA 29 CFR 1926.502
Federal construction fall protection requirements.
Class 1
Rated for overhead or up to 5 ft below-D-ring tie-off without edge hazards.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the web lifeline, retraction, lock, housing, and connectors before each use.
- Mount the SRD. Connect the housing to your harness dorsal connector (SRL-P) or to a rated overhead anchor.
- Connect the lifeline. Attach the lifeline hook to a rated anchor (or to the harness if anchor-mounted).
- Check the lock. Give the lifeline a sharp pull to confirm it locks, and let it retract smoothly.
- Confirm clearance. Verify required fall clearance and swing-fall with the calculator below before working.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Web lifeline: cuts, fraying, burns, or chemical damage.
- Retraction and lock: lifeline that will not retract or lock up on a sharp pull.
- Housing and hardware: cracks, deformation, or corrosion.
- Connectors and hooks: bent gates, corrosion, or gates that will not lock.
- Labels and RFID: illegible or missing markings.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 6 ft DuraTech Mini personal SRL-P (twin-leg) |
|---|---|
| Class | ANSI Z359.14-2021 Class 1 |
| Lifeline | 6 ft web |
| Capacity | 130 to 310 lb (ANSI); higher OSHA capacity per manual |
| Mounting | SRL-P: harness dorsal or overhead anchor; up to 5 ft below-D-ring where no edge hazard |
| Connector options | Steel SRD connector or steel carabiner/clip (dorsal); steel or aluminum rebar/snap hooks (anchors) |
| Configuration | Twin-leg, 100 percent tie-off |
| Standards | ANSI Z359.14-2021; ANSI A10.32-2012; OSHA 1926.502 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 72706 Submittals and Documentation
72706 Instruction Manual (PDF)Use, capacity, arrest distance, and inspection. 72706 Declaration of Conformity (PDF)Certification to ANSI Z359.14-2021 (FallTech test lab). 72706 Spec Sheet (PDF)One-page specifications and compliance summary.Related Anchors
- FallTech steel and beam anchors. See the full beam clamp and steel anchor line.
- FallTech fall protection equipment. Harnesses, SRLs, lanyards, and anchors.
Specifying SRLs for Your Crew?
The right SRD depends on the anchor position, the edge, the connectors, and the fall clearance below. Confirm your application with us and we will help you pick the leg count and connector configuration.
Call 863-703-4522 to talk to a fall protection specialist.
