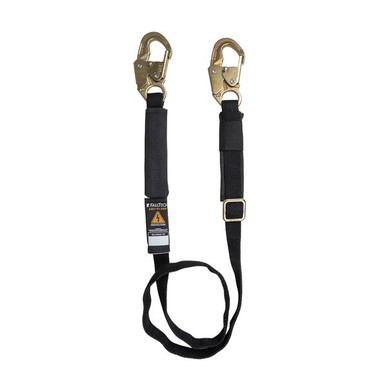

FallTech 8209AFB Arc Flash Adjustable Restraint Lanyard, 4 to 6 ft
FallTech

FallTech Arc Flash Adjustable Restraint Lanyard, 4 to 6 ft

(No reviews yet) Write a Review
$147.00
Brand:
FallTech
SKU:
8209AFB
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Restraint

FallTech Arc Flash Adjustable Restraint Lanyard, 4 to 6 ft

Features Nomex and Kevlar webbing for Arc Flash protection. Includes steel snap hook for dorsal and anchorage attachment.

Restraint lanyard effectively restricts users from reaching identified fall hazards. Complies with ANSI Z359.3-2017 and ASTM F887.

FallTech 8209AFB Arc Flash Adjustable Restraint Lanyard, 4 to 6 ft
5,000 lbStatic Strength
310 lbANSI User Capacity
425 lbOSHA User Capacity
KevlarWebbing

Who Needs This Product

Restraint is the smartest fall protection there is: rig the lanyard short enough that the worker cannot reach the edge, and the fall never starts. Crews use fixed and adjustable restraint lanyards on roofs, aerial lifts, and elevated platforms where the work zone can be defined. Restraint lanyards have no energy absorber because they are never exposed to free fall.

Features

Features Nomex and Kevlar webbing

Features Nomex and Kevlar webbing for Arc Flash protection.

Includes steel snap hook for

Includes steel snap hook for dorsal and anchorage attachment.

Restraint lanyard effectively restricts users

Restraint lanyard effectively restricts users from reaching identified fall hazards.

Complies

Complies with ANSI Z359.3-2017 and ASTM F887.

⚠

Restraint only works if the edge stays out of reach. This lanyard has no energy absorber and is never rated for free fall. Rig it so the worker cannot reach the fall hazard at full extension, or use a fall arrest connector instead.

Compliance Standards

OSHA 1926.502

Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.

1910.66

Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.

OSHA 1926.502

Construction fall protection criteria for personal fall arrest system components, including connectors, lanyards, and lifelines.

Typical Applications

Aerial liftsRestraint inside boom lift baskets per manufacturer rules.
Low-slope roofsKeeping workers back from unprotected edges.
Elevated platformsDefined work zones short of the edge.
Rail and dock edgesFixed-length restraint at repetitive stations.
Utility and telecomPositioning short of the hazard.

How to Use

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Measure the zone. The lanyard length, plus your reach, must stop short of the fall hazard.
  2. Connect both ends. Harness attachment to a rated anchor with the hooks or loop provided.
  3. Set adjustable models. Dial the length so the edge is out of reach even at full stretch.
  4. Keep it restraint. If the geometry allows any free fall, switch to an energy absorbing lanyard or SRL.
  5. Inspect and log. Webbing, hardware, and stitching before each use.

Inspection and Retirement

Inspect before each use, with a documented competent person inspection at least annually.

  • Webbing, rope, or cable: cuts, fraying, kinks, corrosion.
  • Adjusters: hold position under load; no slipping.
  • Hooks: gates close and lock; no deformation.
  • Labels: legible and logged.

Retirement triggers: any fall loading, damaged line or hardware, or a failed inspection.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypeRestraint Lanyard
SKU8209AFB
Static Strength5,000 lbs. Min.
ANSI User Capacity130 to 310 lbs. Max.
OSHA User Capacity130 to 425 lbs. Max.
WebbingKevlar; 7,000 lbs. Min. Static Strength
ConnectorsPlated alloy steel; 5,000 lbs. Min. static strength with 3,600 lbs. gate strength
AdjusterPlated alloy steel; 3,375 lbs. Min. static strength
StandardsOSHA 1926.502 and 1910.66; ANSI Z359.3-2017; ASTM F887
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What is the difference between restraint and fall arrest?
Restraint prevents the fall: the lanyard is rigged short enough that you cannot reach the edge. Fall arrest catches you after a fall and requires an energy absorber and clearance. This lanyard is for restraint and positioning only, never free fall.
Why is there no shock absorber?
Because a properly rigged restraint system never sees free fall, there are no arrest forces to absorb. If your geometry allows any free fall, use an energy absorbing lanyard or SRL instead.
Can I use this in an aerial lift?
Restraint lanyards are the standard connection in boom lifts where the manufacturer requires occupants to be restrained from ejection. Verify your lift manufacturer's requirements for restraint versus arrest.
What standard applies?
ANSI Z359.3 covers positioning and travel restraint lanyards, along with OSHA 1926.502. The DoC is linked in the submittals section. FallTech DoC #C1011083 documents ANSI Z359.3-2017 and ASTM F887-20 arc flash testing for this model.
Who is Fall Protection Distributors?
Fall Protection Distributors, LLC is an authorized FallTech dealer. Every product ships new, boxed, and warrantied.
How quickly does this ship?
Usually ships in 1 business day from our warehouse. Delivery time is based on the delivery location.
What warranty applies?
FallTech provides a 2-year limited warranty against defects in materials and workmanship, and Fall Protection Distributors passes that warranty through to you.

FallTech 8209AFB Submittals and Documentation

8209AFB Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 8209AFB Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 8209AFB Spec Sheet (PDF)Full specifications, features, and compliance summary for submittal packages.

Complete Your Fall Protection System

Specifying Lanyards and Connectors for Your Crew?

Hook styles, free fall ratings, webbing families, and clearances: call us and we will match the connector to the trade before it ships. Confirm your application with us and we will make sure every component matches before it ships.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech provides a 2-year limited warranty against defects in materials and workmanship on the FallTech product. The warranty is void if the product is altered, misused, or damaged by neglect, abuse, or accident, and it excludes normal wear. Fall Protection Distributors, LLC passes through the manufacturer warranty to the original purchaser.
