FallTech 65030CFS Flush-Mount Cast-In Fixed Davit Base with Stainless Steel
FallTech

FallTech Flush-Mount Cast-In Fixed Davit Base

(No reviews yet) Write a Review
$1,121.00 - $2,146.00
Brand:
FallTech
SKU:
65030CF
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Davit Systems

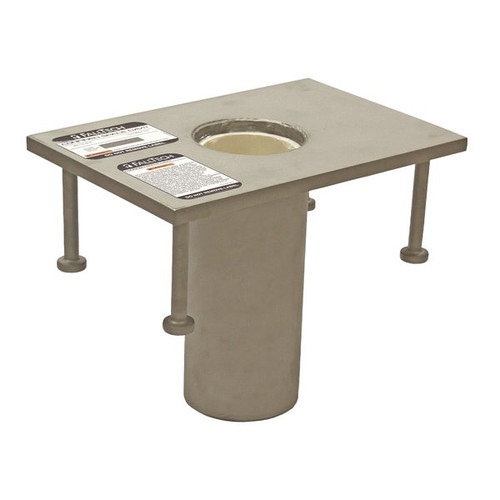

FallTech Flush-Mount Cast-In Fixed Davit Base

Permanently installed davit base solution for is ideally suited for recurrent access locations. Cast-in design for new concrete construction installation.

Rugged 8" x 12" plate with 4" support rods provide long lasting fixed base solution. 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment.

FallTech 65030CFS Flush-Mount Cast-In Fixed Davit Base
620 lbRated Capacity
4:1Min Design Factor
6,167 ft-lbMast Moment Proof
360Mast Rotation (deg)
8 x 12 inCast-In Plate
9 inSleeve Depth
4 inSupport Rods
SST or ZincMaterial Options

Who Needs This Product

Plants and municipalities with recurring entry points install fixed davit bases so crews can carry one davit arm between locations and be set up in minutes. A permanently installed base removes setup variables, keeps the anchor point in the engineered position, and dramatically speeds up routine entries at the same portal.

Features

Permanently installed davit base solution

Permanently installed davit base solution for is ideally suited for recurrent access locations.

Cast-in design for new concrete

Cast-in design for new concrete construction installation.

Rugged 8" x 12" plate

Rugged 8" x 12" plate with 4" support rods provide long lasting fixed base solution.

9" deep sleeve

9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment.

Flush floor profile is well-matched

Flush floor profile is well-matched for high traffic areas and helps reduce tripping hazards.

Stainless steel construction throughout; also

Stainless steel construction throughout; also available in plated carbon steel.

⚠

The installation is the anchor. A fixed base is only as strong as its concrete and fasteners. Install per the FallTech instructions and verify the completed installation per the manual before first use.

Compliance Standards

OSHA 1926.502

Applicable requirement for this equipment: OSHA 1926.502 and 1910.66 when used in a complete system.

1910.66 when used in a complete system

Applicable requirement for this equipment: OSHA 1926.502 and 1910.66 when used in a complete system.

OSHA 1910.146

Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.

Typical Applications

Treatment plantsScheduled entries at fixed portals across the facility.
Industrial tanksRecurring tank and vessel access points.
Pump stationsMunicipal lift and pump station entries.
Rooftop and pitsRepeatable anchor locations for edge and pit access.

How to Use

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Install per the manual. Follow the FallTech installation instructions for concrete strength, embedment, or fasteners.
  2. Verify the installation. Check the completed installation per the manual before first use, following site engineered drawings where applicable.
  3. Insert the mast. Seat the davit mast fully in the base sleeve and pin it in place.
  4. Cap when idle. Keep the sleeve clear of debris and replace the cap after each use.

Inspection and Retirement

Inspect the base before each use. Have a competent person inspect the installation at least annually.

  • Base body: cracks, corrosion, and deformation.
  • Fasteners: present, tight, and undamaged.
  • Sleeve: clean, unobstructed, and accepts the mast fully.
  • Anchorage: concrete or structure condition per the installation instructions.

Retirement triggers: structural damage, anchor deterioration, or any fall event loading the base.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypeFlush-mount Cast-in
SKU65030CF
Rated Capacity620 lb at minimum 4:1 design factor
Mast Moment Proof Load6,167 ft. lb
Mast Rotation360°
Davit Base304 Stainless Steel
Sleeve InsertPVC pipe
Available Configurations65030CFS (Stainless Steel), 65030CFZ (Zinc-Plated Steel)
StandardsOSHA 1926.502 and 1910.66 when used in a complete system
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What is the Flush-Mount Cast-In Fixed Davit Base used for?
Permanently installed davit base solution for is ideally suited for recurrent access locations It is part of the modular FallTech confined space davit family, which lets one davit arm serve many access points.
Is this component compatible with other FallTech davit parts?
Yes. The FallTech confined space davit system is fully modular. Arms, masts, extensions, bases, and brackets pin together, and one arm can move between portable, fixed, and vehicle hitch bases across your facility.
Does it work with other manufacturers' davit systems?
It is engineered and certified for the FallTech davit system. FallTech offers device receiver brackets for DBI-SALA and Miller devices, but structural components should stay within the FallTech system to preserve the certification.
What standards apply?
OSHA 1926.502 and 1910.66 when used in a complete system Verify your complete assembled system against your site's rescue plan requirements.
What inspection does it require?
Inspect for cracks, bends, corrosion, and full pin engagement before each use, and have a competent person perform a documented inspection at least annually.
How do I choose between fixed base styles?
Flush-mount and core-mount bases sit at or below grade for locations where a trip-free surface matters, center-mount and floor-mount bases bolt to sound concrete, and wall-mount bases attach to vertical structure. Choose based on the portal location and the concrete available, and cap the sleeve when not in use.
Who is Fall Protection Distributors?
Fall Protection Distributors, LLC is an authorized FallTech dealer. Every product ships new, boxed, and warrantied, and our team helps you match components into a compliant confined space system.

FallTech 65030CFS Submittals and Documentation

65030CF Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 65030CF Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 65030CF Brochure (PDF)Specifications, dimensions, and feature summary. 65030CF Instruction Manual (PDF)Installation, use, capacity, and inspection procedures.

Complete Your Confined Space System

Specifying Confined Space Equipment for Your Crew?

The right system depends on the portal, the depth, and your rescue plan. Confirm your application with us and we will make sure every component matches before it ships.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech provides a 2-year limited warranty against defects in materials and workmanship on the FallTech product. The warranty is void if the product is altered, misused, or damaged by neglect, abuse, or accident, and it excludes normal wear. Fall Protection Distributors, LLC passes through the manufacturer warranty to the original purchaser.
