FallTech FR84106TP3S 6' FT-X EdgeCore Class 2 leading edge twin-leg SRL-P with SpeedLink field-replaceable legs and steel swivel rebar hooks
FallTech

FallTech FR84106TP3S 6 ft FT-X EdgeCore LE SRL, Twin-Leg

(No reviews yet) Write a Review
$841.50
Brand:
FallTech
SKU:
FR84106TP3S
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Self-Retracting Devices

FallTech 6' FT-X EdgeCore LE SRL-P, Twin-Leg, Field Replaceable

The FR84106TP3S 6 ft FT-X EdgeCore LE SRL, Twin-Leg is a Class 2 leading edge personal self-retracting device with SpeedLink field replaceability. The innovative EdgeCore lifeline is made from Kevlar cables and a UV-resistant composite jacket, weighing far less than steel cable while staying edge-rated, and each steel swivel rebar hook leg replaces in the field with part FR84106RP3S.

It is certified to ANSI Z359.14-2021 as a Class 2 SRL-P and to CSA Z259.2.2-2017 under FallTech CSA Declaration of Conformity DC1011056j, for one worker from 130 to 310 lb under ANSI and up to 420 lb under OSHA. It is suitable for below D-ring tie-off up to five feet and leading edge exposures.

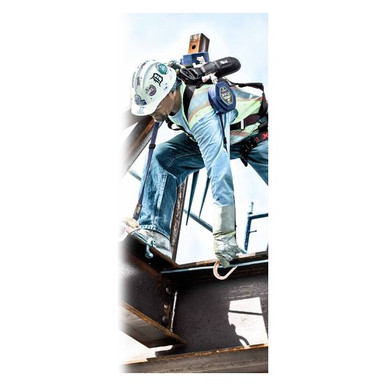

FallTech FT-X EdgeCore twin-leg SRL-P in use during steel erection; harness sold separately
Class 2ANSI Z359.14-2021
CSAZ259.2.2-2017
2 x 6'EdgeCore Legs
Up to 420 lbOSHA Capacity
SpeedLinkField Replaceable
1,800 lbMax Arrest Force
42 inMax Arrest Distance
100%Tie-Off Capable

Who Needs This Product

This product is a leading edge twin-leg personal self-retracting device (SRL-P) for workers who tie off at or below the D-ring near sharp or leading edges, such as deck and steel work. The SpeedLink system lets your competent person replace a damaged retractable leg in the field instead of retiring the whole device. What is included: the twin-leg SRL-P assembly only; the harness shown in photos is sold separately. You still need a certified full-body harness and rated anchorages.

Features

EdgeCore lifeline

Kevlar cable cores with a UV-resistant composite jacket weigh far less than steel cable while staying edge-rated.

SpeedLink field replaceability

Replace a damaged retractable leg in the field with part FR84106RP3S, lowering the total cost of ownership.

Class 2 leading edge rating

Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards.

CSA certified

Certified to CSA Z259.2.2-2017 under declaration DC1011056j for Canadian jobsites.

Elevated compact design

The compact housings align optimally with worker motion, increasing comfort and mobility.

Built-in clearance charts

Comprehensive fall clearance charts and tables print inside the energy absorber cover.

⚠

Class 2 leading edge SRL-P (SRL-LE). This device is edge-rated for tie-off at or below the D-ring, up to five feet below, over qualifying leading edges; follow the manual's edge, setback, and clearance requirements. The maximum arrest distance is 42 inches, which is one part of your Minimum Required Fall Clearance (MRFC). Confirm required fall clearance and swing-fall with the Fall Protection Calculator below.

Compliance Standards

ANSI Z359.14-2021

Self-retracting device standard, Class 2 SRL-P, documented in declaration D0302046n.

CSA Z259.2.2-2017

Canadian self-retracting device standard, documented in declaration DC1011056j.

OSHA 29 CFR 1926.502

Federal construction fall protection requirements.

OSHA 1910.66

General industry powered platform fall protection.

Typical Applications

Steel erectionTwin-leg leading edge tie-off on the iron.
Decking and flooringFoot-level tie-off at the leading edge.
Bridge workEdge-rated 100 percent tie-off.
Precast concreteClass 2 protection near slab edges.
Canadian jobsitesCSA Z259.2.2 certified SRL-P.
General leading edge workWherever edges enter the fall path.

How to Use

Follow the FallTech instruction manual (MSRD32). The sequence below is an overview only.

  1. Inspect. Check both EdgeCore lifelines, retraction, locks, housings, SpeedLink connections, and hooks before each use.
  2. Mount the SRD. Attach the dorsal connector to the harness dorsal D-ring.
  3. Connect the first leg. Attach one steel swivel rebar hook to a rated anchor, at or below the D-ring per the manual's limits.
  4. Alternate legs to move. Connect the second leg to the next anchor before releasing the first, keeping 100 percent tie-off.
  5. Confirm clearance. Verify required fall clearance, setback, and swing-fall with the calculator below.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least annually. Remove the SRD from service for any of the conditions below.

  • EdgeCore lifeline: cuts, broken jacket strands, kinks, burns, chemical damage.
  • Retraction and lock: a lifeline that will not retract or lock on a sharp pull.
  • Energy absorber: a deployed or torn tear-away cover.
  • SpeedLink connection, housing, and hardware: cracks, deformation, or corrosion.
  • Hooks: bent gates, corrosion, or gates that will not lock.
  • Labels: illegible or missing markings.

Remove the SRD from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Type6' FT-X EdgeCore Class 2 leading edge personal SRL-P (twin-leg, field replaceable)
StandardANSI Z359.14-2021 Class 2 SRL-P; CSA Z259.2.2-2017
LifelineEdgeCore Kevlar cable core with UV-resistant composite jacket; 5,000 lb minimum
ConnectorsSteel swivel rebar hooks; 5,000 lb minimum with 3,600 lb gate strength
Dorsal connectorAluminum alloy; 3,600 lb minimum
Field replaceabilitySpeedLink retractable legs; replacement part FR84106RP3S
Static strength3,600 lb minimum
Average arrest force1,350 lb maximum
Maximum arrest force1,800 lb
Maximum arrest distance42 in
Capacity130 to 310 lb ANSI; 130 to 420 lb OSHA
StandardsANSI Z359.14-2021; CSA Z259.2.2-2017; OSHA 1926.502 and 1910.66
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What does field replaceable mean on this SRL?
The SpeedLink connection lets your competent person swap a damaged retractable leg in the field using replacement part FR84106RP3S, so one damaged leg no longer retires the whole twin-leg device.
Is this SRL CSA certified for Canada?
Yes. It is certified to CSA Z259.2.2-2017 under FallTech CSA Declaration of Conformity DC1011056j, which lists FR84106TP3S and FR84106RP3S, in addition to ANSI Z359.14-2021 certification.
What is the EdgeCore lifeline?
EdgeCore uses Kevlar cable cores inside a UV-resistant composite jacket. It carries a 5,000 lb minimum static strength and stays edge-rated at a fraction of the weight of galvanized steel cable.
Can I tie off at foot level?
Yes, within limits. The Class 2 rating allows tie-off below the D-ring up to five feet, including leading edge exposures, when you follow the manual's edge, setback, and clearance requirements.
What is the capacity?
One worker from 130 to 310 lb for ANSI compliance, and from 130 to 420 lb under OSHA, including clothing, tools, and gear.
Which hooks does it come with?
This configuration ships with steel swivel rebar hooks on both legs, rated at 5,000 lb minimum with 3,600 lb gate strength, sized for rebar and angle steel connections.
How much clearance do I need below the edge?
The maximum arrest distance is 42 inches, and leading edge falls add setback and deflection factors to the Minimum Required Fall Clearance (MRFC). Use the charts inside the energy absorber cover or our Fall Protection Calculator to confirm the total.

FallTech FR84106TP3S Submittals and Documentation

FR84106TP3S Instruction Manual (PDF)FT-X EdgeCore SRL-P manual (MSRD32): use, edge requirements, and inspection. FR84106TP3S ANSI Declaration of Conformity (PDF)Certification to ANSI Z359.14-2021 under declaration D0302046n, which lists FR84106TP3S. FR84106TP3S CSA Declaration of Conformity (PDF)Certification to CSA Z259.2.2-2017 under declaration DC1011056j. FR84106TP3S Spec Sheet (PDF)One-page specifications and compliance summary. FT-X EdgeCore 6 ft Brochure (PDF)Family overview of the 6 ft field-replaceable EdgeCore line.

Related Products

Specifying Leading Edge SRLs for Your Crew?

The right leading edge SRL-P depends on the edge type, the setback, the tie-off height, and the fall clearance below. Confirm your application with us and we will help you pick the leg count and configuration.

Call 863-703-4522 to talk to a fall protection specialist.
