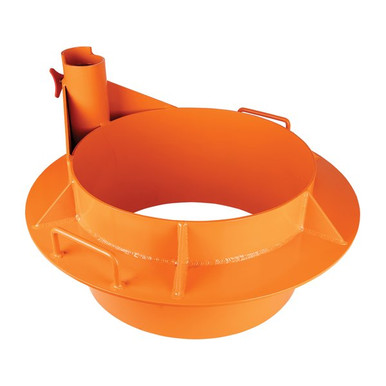

FallTech Manhole Sleeve for Confined Space Davits, 22 to 24 in
Collar base is ideally suited for manholes, sewer openings and tank hatches. Designed for use with FallTech 29" Offset Davit Arm and one of four lower mast extensions.
Powder coated aluminum construction with PVC sleeve insert. Features mast-securing hand-screw and integrated carry handles.
Who Needs This Product
Plants and municipalities with recurring entry points install fixed davit bases so crews can carry one davit arm between locations and be set up in minutes. A permanently installed base removes setup variables, keeps the anchor point in the engineered position, and dramatically speeds up routine entries at the same portal.
Features
Collar base is ideally suited
Collar base is ideally suited for manholes, sewer openings and tank hatches.
Designed for use
Designed for use with FallTech 29" Offset Davit Arm and one of four lower mast extensions.
Powder coated aluminum construction
Powder coated aluminum construction with PVC sleeve insert.
Features mast-securing hand-screw and integrated
Features mast-securing hand-screw and integrated carry handles.
No tools required for set-up
No tools required for set-up.
Meets OSHA 1926.502 regulations only
Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions.
The installation is the anchor. A fixed base is only as strong as its concrete and fasteners. Install per the FallTech instructions and verify the completed installation per the manual before first use.
Compliance Standards
OSHA 1926.502
Applicable requirement for this equipment: OSHA 1926.502 and 1910.66 when used in a complete system.
1910.66 when used in a complete system
Applicable requirement for this equipment: OSHA 1926.502 and 1910.66 when used in a complete system.
OSHA 1910.146
Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Install per the manual. Follow the FallTech installation instructions for concrete strength, embedment, or fasteners.
- Verify the installation. Check the completed installation per the manual before first use, following site engineered drawings where applicable.
- Insert the mast. Seat the davit mast fully in the base sleeve and pin it in place.
- Cap when idle. Keep the sleeve clear of debris and replace the cap after each use.
Inspection and Retirement
Inspect the base before each use. Have a competent person inspect the installation at least annually.
- Base body: cracks, corrosion, and deformation.
- Fasteners: present, tight, and undamaged.
- Sleeve: clean, unobstructed, and accepts the mast fully.
- Anchorage: concrete or structure condition per the installation instructions.
Retirement triggers: structural damage, anchor deterioration, or any fall event loading the base.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Collar fits 22" to 24" manholes |
|---|---|
| SKU | 650124MH |
| Rescue Static Strength | 4,000 lb min. |
| Entry/Egress Static Strength | 1,800 lb min. |
| Rescue User Capacity | 2 users, 310 lb max. for each person |
| Entry/Egress Capacity | 1 user, 310 lb max. |
| Davit Base | Powder Coated 6061 aluminum |
| Sleeve Insert | PVC pipe |
| Standards | OSHA 1926.502 and 1910.66 when used in a complete system |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 650124MH Submittals and Documentation
650124MH Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 650124MH Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 650124MH Brochure (PDF)Specifications, dimensions, and feature summary.Complete Your Confined Space System
