Malta Dynamics A6103 Beam Walker Super Slider 3.5″ – 14″: Lightweight, Versatile Fall Protection Anchor
The Malta Dynamics A6103 Beam Walker Super Slider is the perfect combination of strength, mobility, and ease of use for workers operating at height. Purpose-built for steel beam applications, this adjustable fall protection anchor provides reliable safety for rope access, fall arrest, and work positioning. With its compact and lightweight design, weighing only 3.81 lbs, the Beam Walker Super Slider supports workers across various industries, including construction, oil & gas, and utilities.
Ultra-Lightweight Mobility.
Watch the A6103 Super Slider in action and see how the 360° swivel D-ring prevents lifeline tangling during movement.
Enhanced Mobility with the A6103 Beam Walker Super Slider

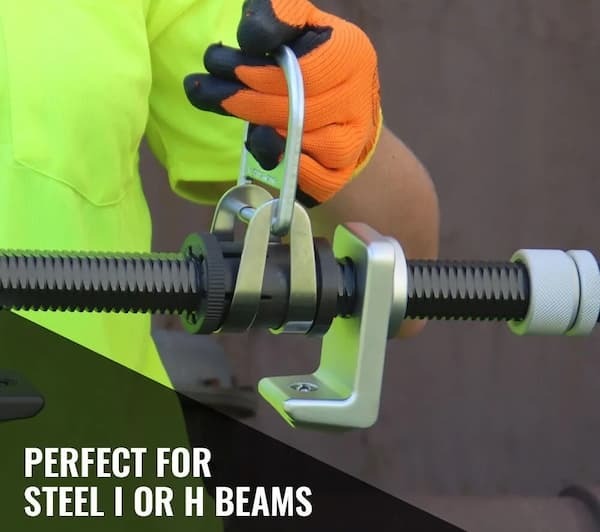

The A6103 features a 360° swivel D-ring centered on the anchor, allowing lifelines to rotate freely without tangling. Its smooth, gliding motion along steel I-beams and H-beams ensures workers remain securely tied off while moving effortlessly to complete tasks. This advanced mobility eliminates the need for constant re-anchoring, boosting productivity and reducing worker fatigue.
Durable Construction and Adjustable Fit

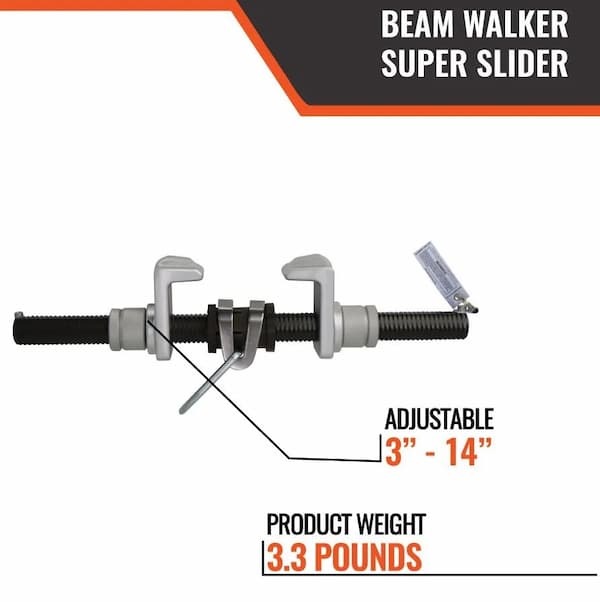

Crafted with aircraft-grade aluminum bars and high-strength alloy steel components, the Beam Walker Super Slider is the perfect solution for demanding environments. The adjustable hooks and lock nut system ensure a snug fit on beam flanges ranging from 3.5″ to 14″ wide and 0.25″ to 1.25″ thick. Its static tensile strength of 5,000 lbs provides unmatched reliability for fall arrest or restraint applications.
Simple Installation and Rigorous Compliance
Setting up the A6103 is straightforward. Confirm the beam meets the 5,000-lbf static load capacity, adjust the hooks using the latch handle, and secure the anchor by tightening the lock nut. The A6103 meets or exceeds ANSI Z359.18-2017, ANSI A10.32-12, CE-EN 795, OSHA 1926.502, and OSHA 1910.66 standards.
Specifications for the Malta Dynamics A6103 Beam Walker:
- Weight: 3.81 lbs (Ultra-lightweight aluminum)
- Dimensions: 21.5 x 5 x 4 in
- Beam Flange Width: 3.5″ – 14″
- Beam Flange Thickness: 0.25″ – 1.25″
- Static Tensile Strength: 5,000 lbs / 22 kN
- Material: Aircraft-grade aluminum, alloy steel, and stainless steel
Malta Dynamics A6103 Supporting Documentation:
Malta Dynamics A6103 Beam Walker FAQ
1. What is the difference between a Beam "Trolley" and a Beam "Slider"?
A Beam Trolley (like the A6101) uses wheels to roll, while the A6103 Super Slider uses high-strength composite pads to glide. The Slider is much lighter (3.8 lbs vs 9.2 lbs) and easier to transport, but a Trolley with rollers may be preferred for finished or painted beams to reduce surface friction.
2. Can I use the A6103 on a vertical I-beam?
No. The A6103 is designed strictly for horizontal beams. It is meant to slide following the user; on a vertical beam, it would simply slide down, creating dangerous slack in your fall protection system.
3. Will this fit a 12-inch wide beam flange?
Yes. The A6103 is adjustable for beam flanges from 3.5 inches up to 14 inches wide. This covers most standard structural steel applications.
4. Does the slider damage the paint or coating on the beam?
The slider hooks have smooth contact points, but because it is a metal-on-metal sliding anchor, minor surface wear is possible. For finished beams where cosmetic integrity is critical, we recommend a trolley with rollers.
5. Is a tool required for adjustment or installation?
No heavy tools are required. The hooks are adjusted via an integrated latch handle, and the anchor is secured by hand-tightening the lock nut per the instruction manual.
6. Can the A6103 be used at foot level?
The A6103 is primarily intended for overhead use. If you must attach at foot level, you must use a Leading Edge (LE) rated lanyard or SRL and ensure you have calculated the required fall clearance depth.
7. How do I maintain the A6103 for long-term safety?
- 1. Check the D-Ring: Ensure the 360° swivel moves freely without sticking.
- 2. Inspect the Hooks: Look for any signs of bending or cracks in the steel hooks.
- 3. Clean the Bar: Wipe away dirt and grease from the aluminum crossbar to keep the adjustment sliding smoothly.
