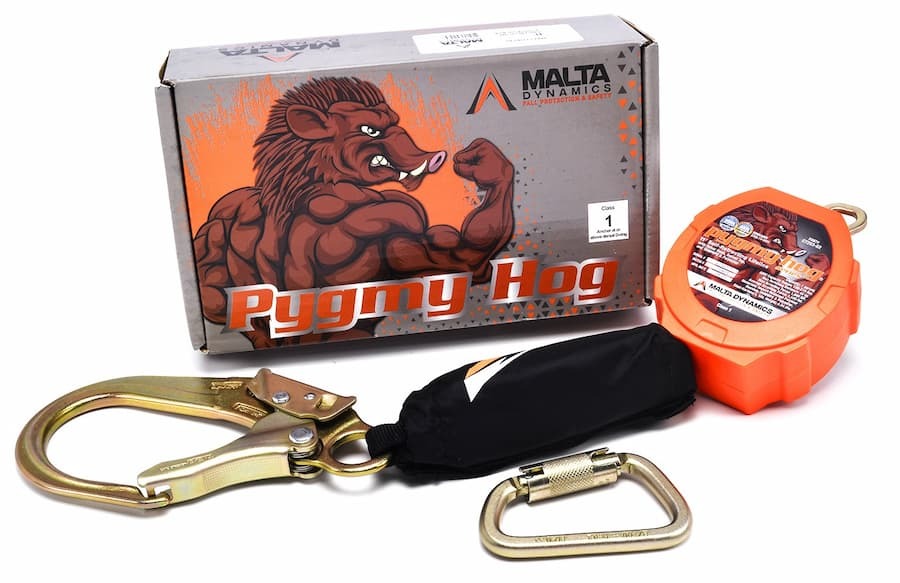

Malta Dynamics C7203-G2 11-foot Pygmy Hog SRL with Rebar Hook – Extended Reach & Versatile Anchoring
The Malta Dynamics C7203-G2 11-foot Pygmy Hog SRL features a heavy-duty rebar hook, providing a significantly larger gate opening than the standard C7201-G2 snap hook model. This single-leg self-retracting lifeline is engineered for workers who require secure connections to larger structural elements, such as scaffolding, rebar cages, and steel beams. If your application is better suited for a traditional connector, consider the Malta Dynamics C7201-G2 for identical performance with a standard snap hook.
Long Reach and Lightweight Design.
Watch this technical overview to see the Pygmy Hog's internal braking mechanism and learn why the swivel top is critical for unrestricted movement at height.
Enhanced Durability for Demanding Job Sites

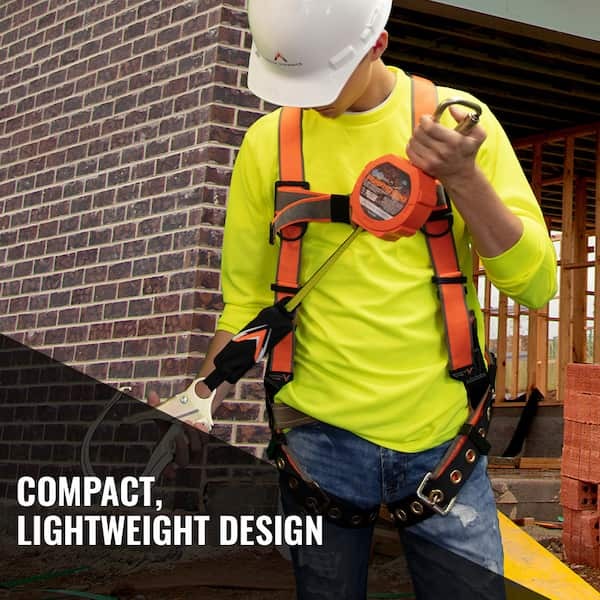

The C7203-G2 combines a lightweight 5 lb design with an 11-foot reach, ensuring mobility across various heights and lateral distances. The lifeline is crafted from a high-strength blend of UHMWPE and polyester, specifically chosen for its abrasion resistance and durability in harsh industrial settings. Encased in a high-impact thermoplastic housing, this single-leg SRL is built to withstand the rigors of construction, maintenance, and utility work while keeping the user agile.
360-Degree Swivel Top with Large-Gate Rebar Hook
Like the entire Pygmy Hog series, the C7203-G2 features a 360-degree swivel top that allows for unrestricted movement without the risk of lifeline tangling. The self-locking rebar hook is a game-changer for tie-offs on oversized structures where a standard hook simply won't fit. For professionals requiring 100% tie-off during transitions, the Malta Dynamics C7203D-G2 Twin-Leg SRL offers the ultimate solution for continuous fall protection.
Ergonomic Design for Comfort and Rapid Inspection
The Pygmy Hog series simplifies safety compliance with a high-visibility yellow lifeline and contrasting black edges, allowing users to spot frays or damage instantly. The ergonomic, compact housing prevents shoulder strain during long shifts. Before each use, inspect the integrated fall indicator; if the red marker is visible, the unit has arrested a fall and must be retired. For detailed documentation, download the Pygmy Hog SRL Inspection Form.
Malta Dynamics C7203-G2 Technical Submittal Data & Compliance Docs:
- C7203-G2 Technical Spec Sheet – Full dimensional data and load ratings.
- C7203-G2 Declaration of Conformity – OSHA/ANSI compliance certification.
- C7203-G2 Owner's Manual – Detailed guide on overhead use and maintenance.
Malta Dynamics C7203-G2 Pygmy Hog FAQ
1. When is a rebar hook necessary instead of a standard snap hook?
A rebar hook is designed with a wider gate opening to accommodate larger anchor points, such as structural rebar, scaffold pipes, and large-angle iron. If your anchor points are smaller, the C7201-G2 Snap Hook model may be a more efficient choice.
2. What does ANSI Class 1-P mean for the C7203-G2?
Class 1 indicates the SRL is designed for overhead anchorages at or above the dorsal D-ring. The "P" stands for Personal, meaning it is designed specifically to be attached directly to the worker's harness.
3. Can I use the 11-foot single-leg Pygmy Hog for 100% tie-off?
A single-leg unit does not allow for 100% tie-off during transitions. For continuous protection while moving between anchors, you should use the C7203D-G2 Twin-Leg version, which allows you to remain anchored at all times.
4. Is the UHMWPE lifeline resistant to welding sparks?
While UHMWPE is incredibly strong, it is a synthetic fiber that can be damaged by high heat. For welding or grinding applications, steel cable SRLs are recommended. Refer to the Owner's Manual for complete safety precautions.
5. How do I properly perform a strike test?
Pull the lifeline sharply and quickly downward before every use. The centrifugal braking mechanism must engage instantly. If the line continues to payout without locking, remove the unit from service immediately.
6. What should I do if the fall indicator shows red?
If the red marker is visible at the connection point, the SRL has been subjected to fall forces and must be retired. Document the unit's removal from service using the official Malta Dynamics Inspection Form.
7. How do I avoid common mistakes when using an 11-foot SRL?
- 1. Swing Fall Radius: Stay as close to directly beneath the anchor as possible to prevent a pendulum swing during a fall.
- 2. Snap-Back Damage: Always walk the line back in manually; never allow the hook to snap back into the housing uncontrolled.
- 3. Sharp Edge Contact: Synthetic lifelines should not pass over sharp edges. Use a Class 2 Leading Edge rated SRL if edges are present.
