1050-GC Galvanized HLL Rigging Kit for CRO Anchors
The Super Anchor 1050-GC supplies the factory-specified rigging for CRO anchors built with No. 1093/1093-S 2.0 inch loop tops. Every component matches the 02-2021 CRA HLL Rigging Manual, so the hardware chain (couplers, energy absorber, turnbuckle, thimbles, and clamps) assembles in the engineered order without substitutions.

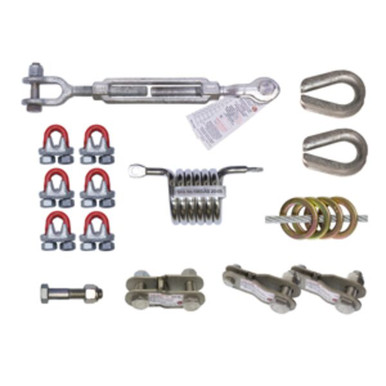

What is included: 4 No. 5010-SM O-rings, 1 No. 1058 galvanized turnbuckle with 5/8 x 3 inch bolts, 2 No. 1087-SC absorber couplers with bolts, 1 No. 1065-AS spring energy absorber, 2 No. 1086-S couplers with bolts, 2 No. 1057 eye thimbles, 6 No. 1056 cable clamps, and the 4-way top 9/16 x 3 inch bolt. Cable is ordered separately by the foot (No. 1055-X galvanized), cut to your run length. Engineered runs carry 2 workers in fall arrest or 4 in fall restraint per the rigging manual performance specification.
Who Needs This Product
This hardware is for crews building engineered horizontal lifelines on Super Anchor CRA and CRO anchor systems: typically a 120 ft run with end anchors, pass-thru intermediates every 20 to 30 ft, and this rigging at the terminations. The system requires design by a qualified or competent person, and Super Anchor plan service and third-party engineering are available. Every worker on the line wears a full body harness with a personal energy absorber or an SRL with an internal absorber.
Features
Factory-specified components
Exactly the parts the 02-2021 rigging manual calls out, in the specified order of assembly.
Spring energy absorber with gauge
The 1065-AS tension indicator gauge closes at approximately 250 to 300 lb of turnbuckle tension, showing correct line tension at a glance.
Stainless couplers
11 gauge 304 stainless coupler links with certified bolts and lock nuts.
Field swage hardware
Eye thimbles and cable clamps build the A-end termination on site with a 45 ft-lb torque specification.
O-ring travel
No. 5010-SM O-rings ride the cable through pass-thru tops so workers never disconnect mid-run.
Turnbuckle tensioning
The included turnbuckle takes out line slack with up to 11 inches of adjustment.
Technical Specifications
| Kit | 1050-GC HLL Rigging Kit for CRO Anchors |
|---|---|
| What Is Included | 4 No. 5010-SM O-rings, 1 No. 1058 galvanized turnbuckle with 5/8 x 3 inch bolts, 2 No. 1087-SC absorber couplers with bolts, 1 No. 1065-AS spring energy absorber, 2 No. 1086-S couplers with bolts, 2 No. 1057 eye thimbles, 6 No. 1056 cable clamps, and the 4-way top 9/16 x 3 inch bolt |
| Fits | CRO anchors built with No. 1093/1093-S 2.0 inch loop tops |
| Cable | Order No. 1055-X galvanized by the foot, cut to length |
| System Performance | 2-person fall arrest or 4-person fall restraint per run; 310 lb per user; 6 ft max free fall; 1,200 lb average peak force |
| Energy Absorber | 1065-AS 304 SST spring type with tension gauge; 52 inch maximum deployment |
| Run Geometry | Typically 120 ft (130 ft max engineered); anchors 20 to 30 ft on center |
| Torque Specifications | Cable clamp nuts 45 ft-lb; bolt threads minimum 1/8 inch past lock nuts |
| Compliance | Components comply with ANSI Z359.1-07 and OSHA 1926.502 per the 02-2021 rigging manual |
Engineered system only. HLL layouts, anchor spacing, and run lengths must be designed by a qualified or competent person, with Super Anchor third-party engineering available. Rig the B-end first, torque cable clamps to 45 ft-lb, and adjust the turnbuckle until the absorber tension gauge deploys fully with no line slack. After any fall, remove the system from service and tag it DO NOT USE.
Compliance Standards
ANSI Z359.1-07 / OSHA 1926.502
All components specified in the 02-2021 HLL Rigging Manual comply per Super Anchor.
Engineered System Basis
HLL runs typically 120 ft (130 ft maximum with third-party engineering) with anchors 20 to 30 ft on center.
2-Person Arrest / 4 Restraint
Per-run performance rating with 310 lb users and 1,200 lb average peak force.
304/316 Stainless Hardware
Couplers in 11 gauge 304 stainless; spring energy absorber in stainless with tension gauge.
Typical Applications
Installation Overview
Rigging sequence per the 02-2021 manual (B-end first):
- Rig the B-end first: factory swaged eye thimble to the coupler narrow end, coupler wide end to the loop top or 4-way with the specified bolts.
- Feed the cable through all pass-thru tops, installing the 4 No. 5010-SM O-rings on the cable before the clamps.
- Field swage the A-end: 3 cable clamps on saddles on the live side, 10 inch dead side, clamps at 2.0 and 4.0 inch centers.
- Attach the A-end coupler, spring energy absorber, and turnbuckle to the end anchor loop top.
- Tighten clamp bolts alternately with a 3/4 inch socket and torque each nut to 45 ft-lb.
- Adjust the turnbuckle until the energy absorber tension gauge is fully deployed with no line slack, and confirm 1/8 inch bolt thread penetration everywhere.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- Any component was subjected to a fall; the HLL must be removed from service and tagged DO NOT USE.
- The energy absorber shows deployment or the tension gauge will not close.
- Couplers, turnbuckles, or clamps are bent, cracked, or corroded.
- Cable shows broken wires, kinks, or crushed sections.
- Bolt thread penetration is under 1/8 inch past the lock nut.
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Super Anchor 1050-GC Submittals and Documentation
CRA HLL Rigging Manual 02-2021 (PDF)Complete rigging procedures, component specifications, torque values, and roof plan examples. CRA Instruction/Specification Manual 01-2023 (PDF)Anchor specifications and installation for the posts this rigging attaches to. Super Anchor Warranty and Compliance Statement (PDF)Manufacturer warranty terms for Super Anchor fall protection equipment.Compatible and Related Products
- Super Anchor 1050-G HLL Rigging Kit. Galvanized rigging kit for CRA loop top anchors.
- Super Anchor 1031-PG Pass-Thru Anchor. HLL intermediate anchor for cable travel.
- Super Anchor 1032-W CRA 12" Anchor Post. Loop top end anchor post for HLL runs.
- Super Anchor 120 ft Standing Seam HLL Kit. Complete engineered system for standing seam roofs.
Building an Engineered Lifeline?
Send us the roof plan, run lengths, and anchor types and we will spec the kits, cable footage, and anchors so the complete system ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
Super Anchor Safety Manufacturer Warranty
Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.
Permanent Anchor Warranty
Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.
See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
