Name: Super Anchor MAX-X X-Line Fall Protection Kit with ADP Grab, 4078 Series
Brand: Super Anchor
SKU: 4078
Price: 525.6 USD
Availability: InStock

Description
Warranty Information
Reviews

Super Anchor Lanyards and Connectors

Super Anchor MAX-X X-Line Fall Protection Kit with ADP Grab, 4078 Series

The Super Anchor MAX-X 4078 is a premium bucket kit built around the pneumatic X-Line lifeline and an ADP panic-grab rope grab, pairing them with a Value harness and a Hinge-2 roof anchor for a self-tending vertical fall arrest system.

Every component is certified to the applicable ANSI Z359 standard and OSHA 1926.502, and ships ready to use. Choose your configuration at checkout.

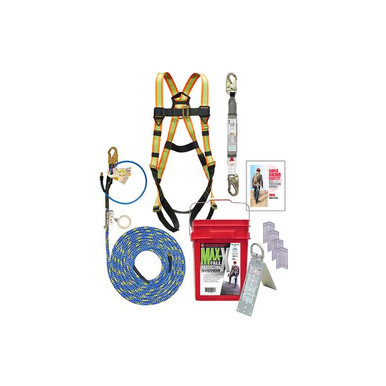

Super Anchor MAX-X ADP Kit complete fall protection kit

310 lbMax User Weight

30/50 ftLifeline Length

X-LinePneumatic Lifeline

ADPPanic Grab

5-PointValue Harness

ANSI Z359Compliant

Hinge-2Roof Anchor

ReusableBucket

Who Needs This Product

This is a complete, ready-to-use fall protection kit for roofers and contractors who want every component in one package. Install the included anchor per its manual, don the harness, and connect to the lifeline. Confirm the anchor structure and fall clearance before use.

Features

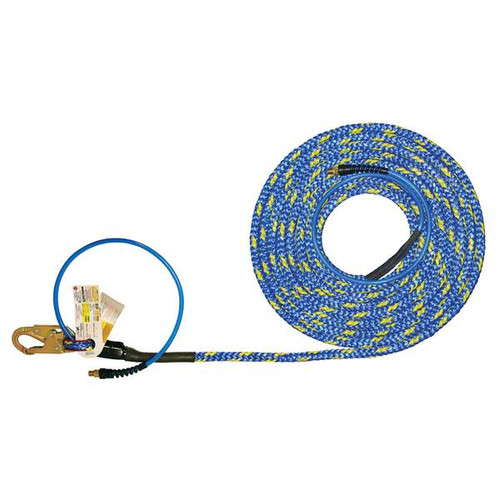

X-Line pneumatic lifeline

A self-tending pneumatic vertical lifeline in 30 or 50 foot lengths.

ADP panic grab

A rope grab with an Automatic Dorsal Panic feature, No. 4015-Z.

Value 5-point harness

A universal Hi-Viz full body harness, No. 6069.

Hinge-2 roof anchor

A reusable adjustable roof anchor, No. 3013-D.

Reusable bucket

Everything ships in a reusable bucket.

ANSI Z359

All components meet the applicable ANSI Z359 standards.

⚠

This is one component of a personal fall-arrest system. Install the included anchor onto structure capable of the rated load per its manual, inspect every component before each use, keep the user within the rated weight, and confirm fall clearance. Inspect before each use and confirm compatibility, capacity, and fall clearance. Run the Fall Protection Calculator below before you tie off.

Compliance Standards

ANSI Z359

American National Standards for connecting components and energy absorbers.

OSHA 29 CFR 1926.502

Federal construction fall protection requirements.

Typical Applications

Residential roofingComplete fall arrest kit.

Commercial roofingReady-to-use tie-off system.

ConstructionVertical access on a lifeline.

ContractorsOne-package compliant kit.

How to Use the MAX-X ADP Kit

Follow the Super Anchor Safety instruction manual. The sequence below is an overview only.

Inspect. Check for wear, cuts, distortion, corrosion, and gate or hardware function before each use.
Confirm compatibility. Verify the component, harness, and anchor are compatible and rated.
Connect. Make the connection and confirm every gate is fully closed and locked.
Verify. Confirm the full system, capacity, and fall clearance.
Use. Work within the rated limits of the system.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least annually. Remove the product from service for any condition below.

Webbing or body: cuts, frays, abrasion, burns, corrosion, or distortion.
Stitching: pulled, cut, or broken threads.
Gates and locks: proper close and lock function.
Fall indicators: any sign of deployment.
Labels: illegible or missing markings.

Retire the anchor immediately after any fall-arrest event, or if any inspection point fails.

Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

SKU	4078-30/50
Type	MAX-X X-Line kit with ADP grab
Lifeline	X-Line pneumatic vertical lifeline, 30/50 ft
Rope grab	ADP panic grab, No. 4015-Z
Harness	Value 5-point Hi-Viz (No. 6069)
Anchor	Hinge-2 (No. 3013-D)
Capacity	310 lb
Standards	ANSI Z359; OSHA 1926.502
Warranty	Super Anchor Safety manufacturer warranty; see Warranty tab

Frequently Asked Questions

What is the X-Line lifeline?

A self-tending pneumatic vertical lifeline that keeps tension as the worker moves. Pair it only with connectors and equipment that are approved for use together so the complete system performs as designed. Before every use, confirm the product is compatible with the rest of your fall protection system and that you have adequate fall clearance below the work area.

What is the ADP grab?

A rope grab with an Automatic Dorsal Panic feature, No. 4015-Z, that locks if grabbed in a fall. Confirm each component in the system is compatible and rated for the intended use before connecting to it. Keep the manufacturer instructions with the equipment so anyone using it can reference the approved procedures.

What lifeline lengths are available?

30 and 50 foot. Pair it only with connectors and equipment that are approved for use together so the complete system performs as designed. Store it in a clean, dry place away from heat and chemicals to help preserve its condition between uses. Keep the manufacturer instructions with the equipment so anyone using it can reference the approved procedures.

What harness is included?

The Value 5-point Hi-Viz harness, No. 6069. Confirm each component in the system is compatible and rated for the intended use before connecting to it. Store it in a clean, dry place away from heat and chemicals to help preserve its condition between uses. Keep the manufacturer instructions with the equipment so anyone using it can reference the approved procedures.

What anchor is included?

The Hinge-2 reusable roof anchor, No. 3013-D. Confirm the surface, slope, and conditions at your work area match the intended application before installation. Store it in a clean, dry place away from heat and chemicals to help preserve its condition between uses. Keep the manufacturer instructions with the equipment so anyone using it can reference the approved procedures.

What is the maximum user weight?

310 pounds including tools. Refer to the specification table above for full details on construction, finish, and sizing. Store it in a clean, dry place away from heat and chemicals to help preserve its condition between uses. Keep the manufacturer instructions with the equipment so anyone using it can reference the approved procedures.

Is it complete?

Yes; confirm the anchor structure and fall clearance. Confirm each component in the system is compatible and rated for the intended use before connecting to it. Always inspect the product before each use and take it out of service if you notice any damage, deformation, or excessive wear.

MAX-X ADP Kit Submittals and Documentation

Super Anchor Full Body Harness Manual 2025 (PDF)Harness use, fitting, capacity, and inspection.Super Anchor Lifeline Instruction Manual 2024 (PDF)Vertical lifeline and rope grab use and inspection.Super Anchor Energy Absorber Manual 2025 (PDF)Energy absorber use and inspection.Super Anchor Lifeline Buying Guide (PDF)Lifeline and rope grab selection guide.Super Anchor Warranty and Compliance Statement (PDF)Manufacturer warranty and standards compliance.

Related Super Anchor Products

Outfitting Crews with Complete Kits?

Lifeline length and grab type affect the kit. Confirm your setup with us and we will help match the right MAX-X kit.

Call 863-703-4522 to talk to a fall protection specialist.

Super Anchor Safety Manufacturer Warranty

Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.

Permanent Anchor Warranty

Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.

See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
