Super Anchor 8501 G-Clamp Fall Protection System: Zero-Penetration Reusable Roof Anchorage
The Super Anchor 8501 G-Clamp Fall Protection System creates an OSHA-compliant anchor point with no nails, no screws, and no holes in the roof. The system wraps the structure itself: a ridgetop anchor sits at the peak while two G-Clamps hook opposite roof edges, connected by ratchet straps under constant tension. On pitched roofs the clamps grip through a twisting "grappling" effect, and on flat or parapet roofs the system clamps around the edges, making it a favorite for finished roofs, tile, and standing seam where penetrations are not an option.
What is included: 1 Ridgetop Anchor, 2 G-Clamps, 2 35" Ratchet Straps, and 6 T-Bars, delivered in 2 heavy duty carry bags for easy transport.
Who Needs This Product
Contractors and building owners who need temporary fall protection on roofs that cannot be penetrated: clay and ceramic tile, slate, standing seam metal, high-end architectural shingle, and flat roofs with overhanging parapet walls. Because the system installs with friction and tension only, there are no holes to patch, no flashing repairs, and no voided roofing warranties. It is equally useful for solar surveys, inspections, and repair work where the crew will only be on the roof for a day.
Features
Zero-Penetration Grappling Design

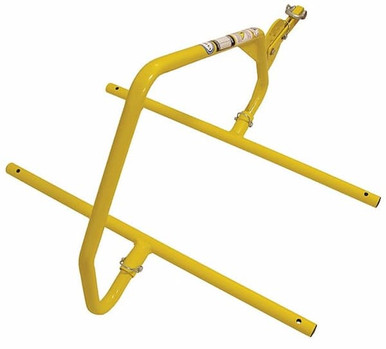

On pitched roofs the G-Clamps use a twisting, gripping motion known as a grappling effect to adhere to the roof under load. No fasteners ever touch the roofing material.
Parapet and Flat Roof Capability
On flat roofs or roofs with overhanging parapet walls, the system clamps around the roof edges with the anchor raised on extensions in the center, creating a pitched-roof geometry for the straps.
Four Dedicated Tie-Off Points
The ridgetop anchor provides four connection points, two extending from each side. These are the only points rated for PPE connection; never tie off to the G-Clamps or straps.
Constant-Tension Ratchet Straps
Two heavy duty ratchet straps hold the anchor and clamps in a straight line over the peak with constant tension, keeping the system tight through temperature and load changes.
Adjustable T-Bars for Any Rafter Layout
Six T-Bars center the clamps on the rafters. If rafters are wider than 36", additional extensions pin onto the T-bar ends, and enclosed soffits can be centered using the soffit cover nail lines.
Roof-Friendly Riser Blocks
For standing seam and ceramic or clay tile, Velcro-backed riser blocks with friction pads elevate the system so no seam or tile is crushed. Replace pads when compressed to less than 50% thickness.
Technical Specifications
| Part Number | 8501 (G-Corp Clamp System) |
|---|---|
| System Type | Temporary, reusable, non-invasive friction and tension anchorage |
| Fall Arrest Capacity | 1 user, maximum 6 ft free fall |
| Fall Restraint Capacity | 2 users |
| Tie-Off Points | 4, on the ridgetop anchor only |
| Components | 1 Ridgetop Anchor, 2 G-Clamps, 2 35" Ratchet Straps, 6 T-Bars, 2 carry bags |
| Required Structure Strength | 5,000 lb |
| Compatible Roofs | Asphalt shingle, shake, slate, tile and standing seam (riser blocks with friction pads required), flat roofs with parapet walls |
| Rafter Width | T-Bars center on rafters up to 36"; pin-on extensions for wider spans |
| Required PPE | Full body harness with shock absorbing lanyard or self retracting lifeline |
| Inspection | Competent person inspection before each use and each work shift, signed and recorded |
| Compliance | OSHA 1926.502 personal fall arrest criteria |
Never connect a lanyard to the G-Clamps, straps, or strap connection points; the four tie-off points on the ridgetop anchor are the only rated connections. All three pieces must align in a straight line over the peak to two opposite roof edges, and the structure must be capable of withstanding 5,000 lb. Do not use on rotten or deteriorating roofs or supports. Remove the system from use immediately in the event of a fall.
Compliance Standards
OSHA 1926.502
Meets personal fall arrest system criteria when used with a full body harness and shock absorbing lanyard or SRL and a 5,000 lb capable structure.
OSHA 1926.501
Provides the anchorage component required for fall protection at 6 ft or more above a lower level in construction.
Fall Restraint Use
Rated for two users in restraint applications where no vertical free fall is permitted.
Documented Inspections
Manufacturer requires signed, dated inspection records before each use and each shift, supporting your written fall protection program.
Typical Applications
Installation Overview
Overview only; the complete G-Clamp manual ships with the system and governs installation.
- Walk the perimeter and select anchor locations that put the two G-Clamps and ridgetop anchor in a straight line over the peak to two opposite roof edges.
- Verify roof and support condition; never install on rotten or deteriorating structure.
- Set the protractor arm to the roof pitch so the arm remains vertical.
- Center the T-Bars on the rafters, adding pin-on extensions when rafters exceed 36".
- On tile or standing seam, attach the Velcro-backed riser blocks with friction pads so no seam or tile is crushed.
- Hook the G-Clamps under opposite eave edges and connect the ratchet straps to the ridgetop anchor.
- Tension both ratchet straps evenly until the system holds constant tension over the peak.
- Connect PPE only to the four tie-off points on the ridgetop anchor and inspect the complete system before each shift.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- Deformation or bending of the anchor, G-Clamps, or T-Bars
- Cracks in the protective finish or welds
- Wire locking pins connecting T-Bars to the G-Clamps are missing or unlocked
- Riser blocks are damaged, dented, or not securely attached
- Friction pads compressed to less than 50% of original thickness
- Ratchet straps show cuts, fraying, UV damage, or slipping ratchets
- Any part is missing, or replacement parts were not obtained from the manufacturer
- The system arrested a fall
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
