3013-D Hinge-2 Adjustable Reusable Anchor, 3-Pack

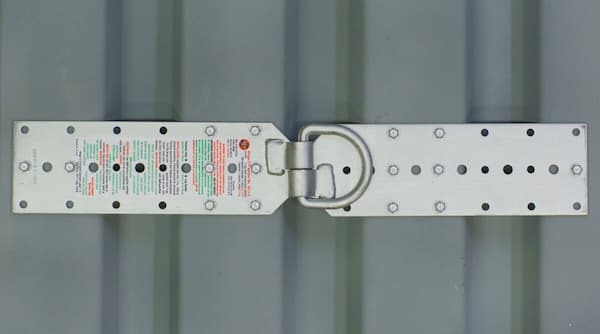

The Super Anchor 3013-D Hinge-2 is the adjustable, reusable temporary anchor: 19 inches of 11 gauge steel with hinge shackles that adjust to the pitch, a forged dacromet coated D-ring, and a 5,000 lb minimum tensile strength. It mounts at the ridge or in the field, and unlike basic hinged anchors it can also anchor a self-retracting lifeline when attached with WS 3.0 hex head screws. This listing is a 3-pack.
One worker at up to 310 lb including tools, 6 ft maximum free fall, on slopes to 24/12 with WS 3.0 wood screws or 12/12 with 16d nails and #12 screws. Temporary only, removed after use. Compliant with OSHA 1926.502 and ANSI Z359.1-07 per the 2024 Hinge-2 manual.
Who Needs This Product

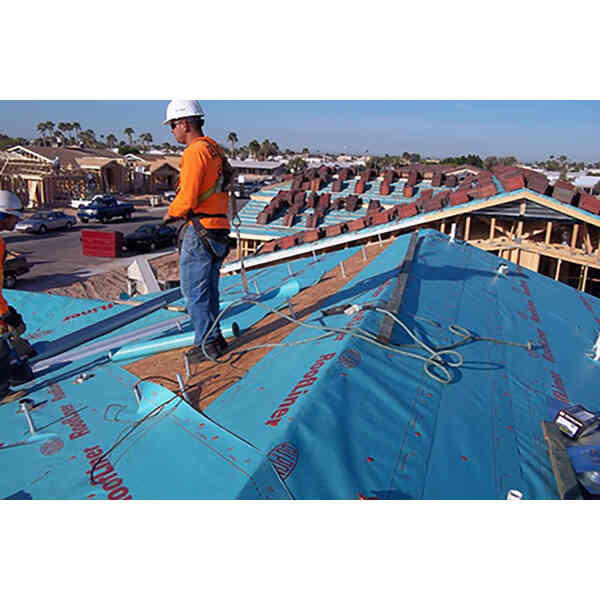

The Hinge-2 is for roofing and solar crews who want one adjustable anchor across every pitch they work: the shackle hinge articulates for ridge or field mounting a minimum of 6 ft from any gable edge, over a minimum 2x4 top chord with 7/16 inch OSB sheathing. Each worker wears a full body harness with connectors carrying 3,600 lb gate strengths per current ANSI and CSA standards. Not for window washing, work positioning, or scaffolding tie-off, and never rig an HLL from nail-attached anchors.
Features
Adjustable hinge shackles
Welded shackle hinges articulate so the D-ring loads correctly on ridge or field mounts across pitches.
Forged dacromet D-ring
Forged, dacromet coated D-ring on 11 gauge steel with a 5,000 lb minimum tensile strength; 3013-S stainless version available for special order.
SRL anchorage capable
Anchors a self-retracting lifeline when attached with WS 3.0 hex head screws per the manual figures.
24/12 slope rating
WS 3.0 wood screws carry it to 24/12; 16d nails and #12 screws to 12/12.
Perimeter fastener holes
Multiple fastener locations lock the anchor to the framing through the sheathing.
Reusable 3-pack
Remove after use, inspect, and move to the next job.
Technical Specifications
| Model | Hinge-2 No. 3013-D |
|---|---|
| Package | 3-pack |
| Material | 11 gauge steel with forged dacromet coated D-ring (3013-S: 430 SST with 304 SST D-ring) |
| Length | 19 inches |
| Minimum Tensile Strength | 5,000 lb |
| User Capacity | 1 person at 310 lb maximum including tools and equipment |
| Maximum Free Fall | 6 ft |
| Maximum Slope | 24/12 with WS 3.0 hex head wood screws; 12/12 with 16d nails or #12 screws |
| Mounting | Ridge or field, minimum 6 ft from any gable edge; minimum 2x4 top chord with 7/16 inch OSB sheathing |
| Service Zones | Fall arrest within 30 degrees of vertical center; fall restraint 360 degrees without free fall exposure |
| SRL Use | Permitted with WS 3.0 hex head screw attachment per manual figures |
| Horizontal Lifelines | Only when engineered per the Hinge-2 No. 1321 HLL manual; never with nail attachment |
| Compliance | OSHA 1926.502; ANSI Z359.1-07 |
| Structural Requirement | 2 times the intended load or 5,000 lb without engineering |
Sheathing required, and never HLL on nails. Do not attach the Hinge-2 directly to a top chord without sheathing installed. Horizontal lifelines require engineering per the Hinge-2 1321 HLL manual and must never run from nail-attached anchors. Match fasteners to slope, keep connectors at 3,600 lb gate strength, and remove the anchor after use.
Compliance Standards
ANSI Z359.1-07
Temporary anchorage compliance per the 2024 Hinge-2 manual.
OSHA 1926.502
Construction fall protection anchorage criteria with 5,000 lb structural support.
Forged Hardware
Forged dacromet D-ring with welded shackle hinges, inspection reference points marked.
SRL Rated Attachment
WS 3.0 hex head screw attachment rated for self-retracting lifeline anchorage.
Typical Applications
Installation Overview
Full figures and fastener specifications are in the manual linked below. The basics:
- Mount at the ridge or in the field, a minimum of 6 ft from any gable edge, over a minimum 2x4 top chord with 7/16 inch OSB sheathing installed.
- Choose fasteners for the slope: WS 3.0 hex head wood screws to 24/12, or 16d nails and #12 screws to 12/12.
- Drive fasteners through the perimeter holes into framing, with the shackle welds and D-ring oriented downslope.
- For SRL anchorage, attach with WS 3.0 hex head screws per the manual figures.
- Work within 30 degrees of vertical center for fall arrest, or rig 360 degree fall restraint without free fall exposure.
- Remove after use, inspect the shackle welds and D-ring, and redeploy on the next job.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- The D-ring or shackle is deformed, or shackle welds show cracks.
- The anchor body is bent or fastener holes are elongated.
- The anchor was subjected to a free fall.
- Corrosion is present that does not clean up.
- The wrong fastener type was used for the slope or application.
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
