3006 Hinged Temporary Roof Anchor, 4-Pack

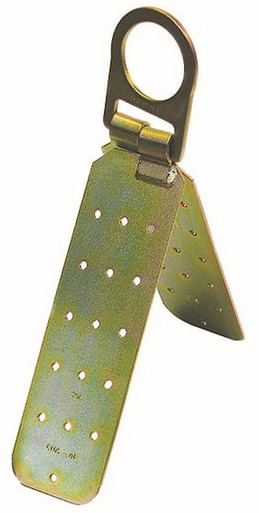

The Super Anchor 3006 SAS-Hinge is the workhorse temporary roof anchor: an 11 gauge steel hinged anchor, yellow zinc or dacromet plated, with a 5,000 lb minimum tensile strength and a permanent date of manufacture stamp. The hinge conforms to the ridge, fasteners drive through the leg holes into framing, and the anchor removes when the job is done. This listing is a 4-pack.
One worker at up to 340 lb including tools in a personal fall arrest system, on slopes to 20/12 with #12 wood screws or 12/12 with 16d nails. Horizontal lifelines may run between 3006 anchors when engineered by a qualified person per the Hinge HLLS manuals. Compliant with OSHA 1926.502 and 1910.66, ANSI Z359.1-07 and A10.32-2012, and certified for Quebec.
Who Needs This Product
The 3006 is the anchor roofing crews nail at the ridge on day one and pull when the last course is in: framers, roofers, gutter crews, and punch-out trades on wood framed residential and light commercial jobs. Each worker wears a full body harness with an ANSI or CSA compliant personal energy absorber connected by lifeline or SRL. It is temporary only, removed after use, and not intended for permanent installation.
Features
Hinged ridge design
The hinge folds over the ridge or works on the field of the roof, conforming to the pitch on either side.
5,000 lb, 11 gauge steel
Plated 11 gauge steel with a 5,000 lb minimum tensile strength and permanent date stamp.
Fast on, fast off
Nails or screws through the leg holes install it in a minute, and it removes clean at job end for the next roof.
Slope rated to 20/12
#12 wood screws carry it to 20/12; 16d nails to 12/12 per the 2022 manual.
HLL capable when engineered
Anchors horizontal lifelines between anchors when designed by a qualified person per the Hinge HLLS manuals.
Retail packaged 4-pack
Four anchors with instructions, ready for the crew truck.
Technical Specifications
| Model | SAS-Hinge No. 3006 |
|---|---|
| Package | 4-pack |
| Material | 11 gauge steel, yellow zinc or dacromet plated |
| Minimum Tensile Strength | 5,000 lb |
| User Capacity | 1 person at 340 lb maximum including tools |
| Maximum Slope | 20/12 with #12 wood screws; 12/12 with 16d nails |
| Duty Cycle | Temporary installation only, remove after use |
| Horizontal Lifelines | Permitted when engineered by a qualified person per Hinge HLLS manuals |
| PPE Requirement | ANSI or CSA compliant harness and personal energy absorber required |
| Compliance | OSHA 1926.502 and 1910.66; ANSI Z359.1-07; ANSI A10.32-2012; certified for use in Quebec |
| Traceability | Permanent date of manufacture stamp YYYY-MM |
Temporary anchor only. The 3006 is not intended for permanent installation. Match the fastener to the slope: #12 wood screws to 20/12, 16d nails only to 12/12. The framing must carry the fall protection load, sheathing follows the framing requirements in the manual, and every worker uses a personal energy absorber. Remove the anchor after use.
Compliance Standards
ANSI Z359.1-07 / A10.32-2012
Temporary anchorage compliance per the 2022 SAS-Hinge manual.
OSHA 1926.502 / 1910.66
Construction fall protection and powered platform anchorage criteria.
Quebec Certified
Certified by a member of l'Ordre des ingenieurs du Quebec.
Stamped Traceability
Permanent YYYY-MM date of manufacture stamp on every anchor.
Typical Applications
Installation Overview
Full figures and fastener specifications are in the manual linked below. The basics:
- Set the anchor at the ridge or on the field with the hinge conforming to the pitch, at locations per the job specific plan.
- Fasten through the leg holes into framing: #12 wood screws for slopes to 20/12, or 16d nails to 12/12.
- Confirm the framing carries the fall protection load and sheathing is installed per the manual before tie-off.
- Connect the lifeline or SRL with ANSI or CSA compliant connectors and a personal energy absorber.
- Work within the fall protection service zones in the manual, rigging fall restraint where free fall exposure exists.
- Remove the anchors when the work is complete; they are reusable across jobs while they pass inspection.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- The anchor is bent, cracked, or deformed.
- Fastener holes are elongated or torn.
- The anchor was subjected to a fall.
- The date stamp is unreadable or plating is corroded through.
- Fasteners were reused or the wrong type was used for the slope.
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
