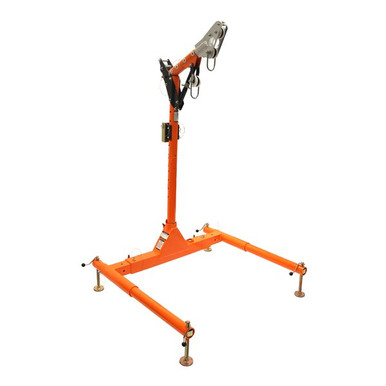

FallTech 5pc Confined Space Davit System, 12 in to 29 in
Davit arm adjusts from 12" to 29" offset reach to keep lifelines centered over access locations. Base width adjusts from 38" to 65" and fits a wide range of openings.
5pc system features 33" lower mast extension and device receiver bracket. SRL-Rs and Winches sold separately.
Who Needs This Product
Facilities that need adjustable-reach access over portals, edges, and offset openings use a davit system where a tripod cannot fit or cannot reach. Davit arms pair with portable or fixed bases, which lets one arm serve many locations across a plant, and the offset reach places the anchor point directly over the work.
Features
Davit arm adjusts from 12"
Davit arm adjusts from 12" to 29" offset reach to keep lifelines centered over access locations.
Base width adjusts from 38"
Base width adjusts from 38" to 65" and fits a wide range of openings.
5pc system features 33" lower
5pc system features 33" lower mast extension and device receiver bracket.
SRL-Rs and Winches sold separately
SRL-Rs and Winches sold separately.
Offset davit arm features two
Offset davit arm features two pulleys and secondary 5,000 lb anchor point.
3pc base includes integral bullseye
3pc base includes integral bullseye level and tool-free height adjustment.
Pins and reach settings matter. Every davit connection must be fully pinned at an approved reach setting before an entrant connects. Follow the FallTech manual for base anchoring and allowable configurations.
Compliance Standards
OSHA 1926.502
Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.
1910.66
Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.
OSHA 1910.146
Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Set the base. Install the davit base or position the portable base at the entry point.
- Assemble the davit. Insert the mast and davit arm, and pin all components at the required reach setting.
- Mount your device. Attach the SRL-R or winch to the device bracket and route the line over the arm sheave.
- Verify the system. Confirm all pins are seated and the system is stable before connecting an entrant.
- Operate per the manuals. Run the devices per their instructions for entry, work, and retrieval.
Inspection and Retirement
Inspect the davit components before each use. A qualified person must inspect the system at least annually and record the inspection, per the FallTech manual.
- Arm and mast: bends, cracks, corrosion, and weld condition.
- Pins: full engagement at every connection point.
- Sheaves: turn freely with no cable wear grooves.
- Base: anchor or ballast integrity per the installation instructions.
Retirement triggers: any fall arrest load on the system, structural damage, or missing hardware.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 5pc Davit System |
|---|---|
| SKU | 6050X28 |
| Rescue Static Strength | 5,000 lb min. |
| Entry/Egress Static Strength | 1,800 lb min. |
| Rescue User Capacity | 2 users, 310 lb max. for each person |
| Entry/Egress Capacity | 1 user, 310 lb max. |
| Davit System | Powder coated 6061 aluminum and plated steel |
| Available Configurations | 6050128 (System Only), 6050228W (With 60 ft Winch), 6050328R (With 60 ft SRL-R), 6050428WR (With Winch and SRL-R) |
| Standards | OSHA 1926.502 and 1910.66 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 6050128 Submittals and Documentation
6050X28 Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 6050X28 Declaration of Conformity (6050128) (PDF)Manufacturer conformity certification for compliance files and submittal packages. 6050X28 Brochure (PDF)Specifications, dimensions, and feature summary. 6050X28 Declaration of Conformity (6050228W) (PDF)Manufacturer conformity certification for compliance files and submittal packages. 6050X28 Declaration of Conformity (6050428WR) (PDF)Manufacturer conformity certification for compliance files and submittal packages.Complete Your Confined Space System
- FallTech Offset Davit Arm with Device Receiver Bracket. The adjustable-reach davit arm.
- FallTech 3pc Portable Base for Offset Davit Arms. Portable 3pc base for davit arms.
- FallTech Flush-Mount Cast-In Fixed Davit Base. Cast-in flush base for new concrete.
- FallTech Davit Arm Device Receiver Bracket for Winch and SRL-R. Mounts winches and SRL-Rs to the davit arm.
- FallTech 5pc Confined Space Davit System, FT-R SRL-R and Bags. The updated configuration with the FT-R series SRL-R and included device storage bags.
