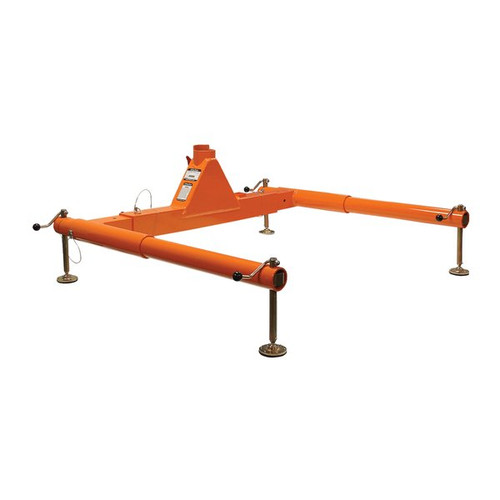

FallTech 3pc Portable Base for Offset Davit Arms
Base width adjusts from 38" to 65" to fit a wide range of openings. Modular design compatibility with offset davit arms and mast extensions.
3pc base includes integral bullseye level and tool-free height adjustment. Lightweight powder coated aluminum combined with alloy steel for long life and durability.
Who Needs This Product
Facilities that need adjustable-reach access over portals, edges, and offset openings use a davit system where a tripod cannot fit or cannot reach. Davit arms pair with portable or fixed bases, which lets one arm serve many locations across a plant, and the offset reach places the anchor point directly over the work.
Features
Base width adjusts from 38"
Base width adjusts from 38" to 65" to fit a wide range of openings.
Modular design compatibility
Modular design compatibility with offset davit arms and mast extensions.
3pc base includes integral bullseye
3pc base includes integral bullseye level and tool-free height adjustment.
Lightweight powder coated aluminum combined
Lightweight powder coated aluminum combined with alloy steel for long life and durability.
Meets OSHA 1926.502 and 1910.66
Meets OSHA 1926.502 and 1910.66 regulations only when used with offset davit arms and mast extensions.
Pins and reach settings matter. Every davit connection must be fully pinned at an approved reach setting before an entrant connects. Follow the FallTech manual for base anchoring and allowable configurations.
Compliance Standards
OSHA 1926.502
Applicable requirement for this equipment: OSHA 1926.502 and 1910.66 when used in a complete system.
1910.66 when used in a complete system
Applicable requirement for this equipment: OSHA 1926.502 and 1910.66 when used in a complete system.
OSHA 1910.146
Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Set the base. Install the davit base or position the portable base at the entry point.
- Assemble the davit. Insert the mast and davit arm, and pin all components at the required reach setting.
- Mount your device. Attach the SRL-R or winch to the device bracket and route the line over the arm sheave.
- Verify the system. Confirm all pins are seated and the system is stable before connecting an entrant.
- Operate per the manuals. Run the devices per their instructions for entry, work, and retrieval.
Inspection and Retirement
Inspect the davit components before each use. A competent person must inspect the system at least annually.
- Arm and mast: bends, cracks, corrosion, and weld condition.
- Pins: full engagement at every connection point.
- Sheaves: turn freely with no cable wear grooves.
- Base: anchor or ballast integrity per the installation instructions.
Retirement triggers: any fall arrest load on the system, structural damage, or missing hardware.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 3pc Adjustable Davit Base |
|---|---|
| SKU | 6500PB |
| Rescue Static Strength | 5,000 lb min. |
| Entry/Egress Static Strength | 1,800 lb min. |
| Rescue User Capacity | 2 users, 310 lb max. for each person |
| Entry/Egress Capacity | 1 user, 310 lb max. |
| Portable Base | Powder coated 6061 aluminum and plated steel |
| Sleeve Insert | PVC pipe |
| Available Configurations | 6500728 (For 12 in to 29 in Arm), 6500844 (For 24 in to 44 in Arm) |
| Standards | OSHA 1926.502 and 1910.66 when used in a complete system |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
