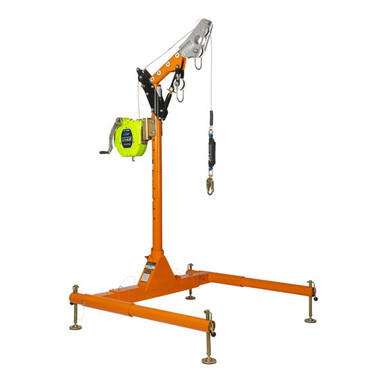

FallTech 5pc Confined Space Davit System with FT-R SRL-R and Bags
Portable, modular, and fully adjustable davit system with a 60 ft FT-R SRL-R to enable secure entry and retrieval in confined space environments. The adjustable 12 in to 29 in offset arm centers lifelines over access points and features dual pulleys with a secondary 5,000 lb anchor point.
Choose the system with the 60 ft FT-R SRL-R (6050328RB) or add the 60 ft personnel winch for dedicated entry and egress (6050428WRB). Both configurations include the 33 in lower mast extension, device receiver brackets, and storage bags for the devices.
Modular Davit Power with FT-R Retrieval
Lightweight powder-coated aluminum combines with alloy steel for longer life and durability, and the three-piece base with an integral bullseye level allows fast, tool-free height adjustment and stable placement across a broad range of openings. Per the FallTech documentation, rescue static strength is 5,000 lb minimum, entry and egress static strength is 1,800 lb minimum, and rescue capacity is two users at 310 lb each.
The included FT-R Class 1 SRL-R serves as both a self-retracting lifeline and a rapid-activation retrieval device, and the included storage bags keep the devices protected between entries. This configuration adds the FT-R series SRL-R and bags to the proven 5pc davit platform already carried in our store.
Key Features
Adjustable Offset Arm
The 12 in to 29 in arm centers the lifeline over the access point and includes dual pulleys with a secondary 5,000 lb anchor point.
FT-R 3-Way SRL-R
Pull the release pin to convert from fall arrest to raise or lower rescue mode. No extra tools needed.
Optional Personnel Winch
The 6050428WRB configuration adds a 60 ft personnel winch for entry and egress while the SRL-R provides fall arrest backup.
Tool-Free Base Adjustment
The wide-adjusting 38 in to 65 in three-piece base includes an integral bullseye level for fast, stable placement.
Corrosion-Resistant Build
Powder-coated aluminum and plated alloy steel deliver durable performance in wet, dirty confined space work.
Storage Bags Included
Device storage bags protect the SRL-R and winch in transit, the difference between this kit and the non-bag versions.
A davit system covers the equipment, not the program. OSHA 1910.146 still requires atmospheric testing, an attendant, and a written permit program for permit-required spaces. This system provides the anchor, lifting, and retrieval hardware that program calls for.
Compliance Standards
OSHA 1926.502 and 1910.66
The davit system meets OSHA 1926.502 and 1910.66 regulations per the FallTech declarations of conformity.
ANSI Z359.14-2021
The included FT-R SRL-R is a certified Class 1 SRL-R under ANSI Z359.14-2021.
ANSI Z359.4
The personnel winch in the 6050428WRB configuration complies with ANSI Z359.4; see the winch documentation.
OSHA 1910.146
Permit-required confined space regulation that drives retrieval equipment requirements for entrants.
Typical Applications
How to Use
Follow the FallTech MCS30 instruction manual. The sequence below is an overview only.
- Set the base and mast. Assemble the three-piece base, level it with the integral bullseye level, and install the mast and 33 in extension.
- Mount the devices. Attach the SRL-R and winch to the device receiver brackets and route the lines over the arm pulleys.
- Connect the entrant. Attach the winch line for entry and egress and keep the SRL-R connected to the dorsal D-ring as fall arrest backup.
Inspection and Retirement
Inspect each component before use following its manual. A competent person must inspect the full system at least annually.
- Arm, mast, and base: bends, cracks, hardware, detent pins, and level.
- SRL-R: housing, lifeline, snap hook, brakes, and retrieval mode.
- Winch: line, hook, crank, and automatic brake function.
- Pulleys and anchor points: free rotation, no deformation or corrosion.
Retirement triggers: an arrested fall, failed inspection, illegible labels, or damage found on any component. Remove the affected component from service immediately.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 5pc confined space davit system with FT-R SRL-R |
|---|---|
| SKU | 6050328RB (with SRL-R), 6050428WRB (with winch and SRL-R) |
| Arm offset | 12 in to 29 in, adjustable |
| Base width | 38 in to 65 in, three-piece with bullseye level |
| SRL-R | 60 ft FT-R Class 1 SRL-R |
| Rescue static strength | 5,000 lb min. |
| Entry/egress static strength | 1,800 lb min. |
| Capacity | Entry and egress: 1 user, 310 lb max. Rescue: 2 users, 310 lb each |
| Materials | Powder-coated aluminum and plated alloy steel |
| Standards | OSHA 1926.502, OSHA 1910.66; SRL-R: ANSI Z359.14-2021 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
