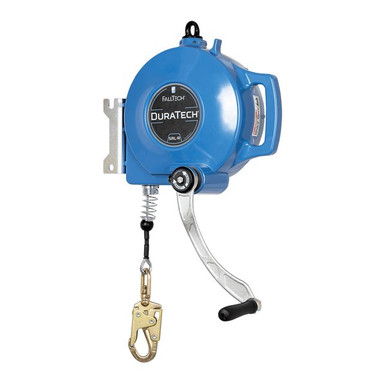

FallTech DuraTech 3-Way SRL-R for Tripods and Davits
Delivers reliable 3-way operation an SRL and a Retrieval Winch for emergency rescue. Heavy-duty, lightweight and corrosion resistant cast aluminum housing construction.
3/16" galvanized steel cable lifeline with load-indicating swivel snap hook. Features integrated proprietary mounting bracket for tripods and davits.
Who Needs This Product
Confined space entry supervisors, municipal utility crews, wastewater treatment operators, and industrial maintenance teams rely on a 3-way SRL-R as the heart of a compliant entry and rescue system. If your crew enters manholes, vaults, tanks, or vessels, OSHA 1910.146 requires a retrieval system for non-entry rescue, and a 3-way SRL-R provides fall arrest during the climb and mechanical retrieval when a rescue is needed.
Features
Delivers reliable 3-way operation an
Delivers reliable 3-way operation an SRL and a Retrieval Winch for emergency rescue.
Heavy-duty
Heavy-duty, lightweight and corrosion resistant cast aluminum housing construction.
3/16" galvanized steel cable lifeline
3/16" galvanized steel cable lifeline with load-indicating swivel snap hook.
Features integrated proprietary mounting bracket
Features integrated proprietary mounting bracket for tripods and davits.
Complies
Complies with ANSI Z359.14-2021 Class 1 SRL-R.
Rescue-ready means inspected and rigged. A 3-way SRL-R only enables non-entry rescue if it is mounted with the correct bracket, inspected, and the attendant knows how to shift it into retrieval mode. Verify your rescue plan before every entry, and confirm fall clearance with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.14-2021
Applicable requirement for this equipment: ANSI Z359.14-2021.
OSHA 1910.146
Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Mount the device. Attach the SRL-R to your tripod or davit using the correct mounting bracket, and route the lifeline through the head sheave or pulley.
- Connect the entrant. Attach the lifeline snap hook to the dorsal D-ring of the entrant's full-body harness.
- Verify SRL mode. Confirm the unit is in SRL mode for normal entry so the lifeline pays out and retracts with the entrant.
- Rescue when needed. Shift the unit into retrieval mode and crank the handle to raise the entrant, allowing one attendant to complete a non-entry rescue.
- Remove from service after events. After any rescue or fall arrest event, remove the device from service and send it for factory inspection.
Inspection and Retirement
Inspect the device before each use following the manual checklist. A competent person inspection is required at least annually.
- Housing: cracks, impact damage, loose fasteners, or corrosion.
- Lifeline: kinks, broken wires, corrosion, or cut or abraded fibers on rope models.
- Snap hook: proper gate action, locking function, and load indicator condition.
- Braking system: test with a sharp pull; the brakes must engage and hold.
- Retrieval mode: must engage cleanly and hold a load without slipping.
Retirement triggers: any fall arrest or rescue load on the device, a deployed load indicator, lifeline damage, or any condition where the inspector cannot verify the device is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | DuraTech 3-way SRL-R 85' |
|---|---|
| SKU | 7277X |
| Static Strength | 3,600 lb min. |
| ANSI SRL Class/Type | Class 1 SRL-R |
| Avg. Arrest Force | 1,350 lb |
| Max. Arrest Force | 1,800 lb |
| Max. Arrest Distance | 42" |
| ANSI User Capacity | 130 to 310 lb max. |
| OSHA User Capacity | 130 to 310 lb max. |
| Cable | 3/16" galvanized steel; 3,600 lb min. static strength |
| Lifeline Connector | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Available Configurations | 7277 (85 ft Galvanized Cable), 7278 (120 ft Galvanized Cable) |
| Standards | ANSI Z359.14-2021; OSHA 1910.140 and 1926.502 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7277 Submittals and Documentation
7277X Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 7277X Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary.Complete Your Confined Space System
- FallTech Confined Space Personnel Winch. Hand-crank personnel lifting with an automatic brake.
- FallTech Confined Space Tripod, 6 to 11 ft Adjustable. The 6 to 11 ft adjustable tripod.
- FallTech Confined Space Tripod, 5 to 8 ft Adjustable. The compact 5 to 8 ft tripod.
- FallTech Tripod Leg Bracket Assembly. Leg bracket that mounts devices to the tripod.
Specifying Confined Space Equipment for Your Crew?
The right system depends on the portal, the depth, and your rescue plan. Confirm your application with us and we will make sure every component matches before it ships.
Call 863-703-4522 to talk to a fall protection specialist.
