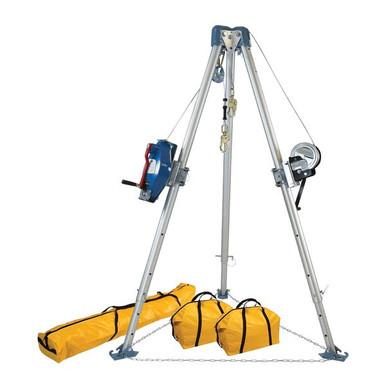

FallTech 11 ft Tripod Kit, Stainless 3-Way SRL-R and Winch
System Kit includes Tripod, 60' stainless steel cable SRL-R and Personnel Winch, leg brackets and leg safety chain. Aluminum tripod features 2-stage telescoping legs with 6' to 11' height adjustment.
Also features single integral pulley with head plate eye-holes for secondary pulley. Kit also includes 80" Tripod bag and two 20" Device bags.
Who Needs This Product
Contractors and plant safety managers who want a complete, matched confined space system in one order choose a tripod kit. Every component is sized to work together, which removes the guesswork of pairing devices, brackets, and storage, and gets a compliant entry and retrieval system on site in a single purchase.
Features
System Kit includes Tripod
System Kit includes Tripod, 60' stainless steel cable SRL-R and Personnel Winch, leg brackets and leg safety chain.
Aluminum tripod features 2-stage telescoping
Aluminum tripod features 2-stage telescoping legs with 6' to 11' height adjustment.
Also features single integral pulley
Also features single integral pulley with head plate eye-holes for secondary pulley.
Kit also includes 80" Tripod
Kit also includes 80" Tripod bag and two 20" Device bags.
System Kit contains: Tripod: 7275
System Kit contains: Tripod: 7275 SRL-R: 7281S Winch: 7297S.
For ANSI and OSHA compliance
For ANSI and OSHA compliance, please see individual component part #s.
A kit covers the equipment, not the program. OSHA 1910.146 still requires atmospheric testing, an attendant, and a written permit program for permit-required spaces. This system provides the anchor, lifting, and retrieval hardware that program calls for.
Compliance Standards
OSHA 1910.146
Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Set the tripod. Position it over the portal, extend the legs to the working height, and secure the leg safety chain.
- Mount the device. Attach the included device to the tripod leg bracket and route the line over the head sheave.
- Connect the entrant. Attach the lifeline to the entrant's dorsal D-ring and verify device operation before entry.
- Rescue without entering. Shift the SRL-R into retrieval mode or use the winch to raise the entrant from outside the space.
- Store the system. Return all components to the included storage bags after use.
Inspection and Retirement
Inspect each component before use following its manual. A competent person must inspect the full system at least annually.
- Tripod: legs, pins, sheaves, feet, and safety chain.
- Device: housing, lifeline, snap hook, brakes, and retrieval mode.
- Connectors: gates close and lock fully; no cracks or corrosion.
- Bags and labels: labels legible; date of first use recorded.
Retirement triggers: any device that has arrested a fall must be removed from service, and the full system re-inspected before it returns to work.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 11' System with SRL-R and Winch |
|---|---|
| SKU | 7504S |
| All Performance Specifications | Please see each component part # for individual performance specifications |
| All Material Specifications | Please see each component Part # for individual material specifications |
| Relevant Standards | Please see each component Part # for individual relevant ANSI Standards and OSHA Regulations |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
