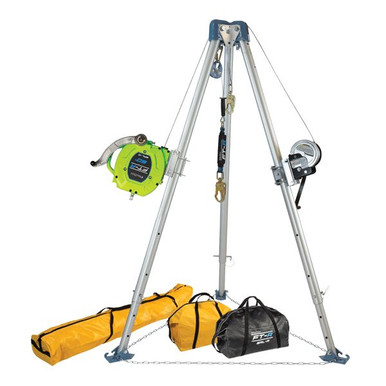

FallTech 7504B 11 ft Tripod Kit, FT-R SRL-R, Winch, and Bags
System kit includes the 6 to 11 ft adjustable aluminum tripod, the 60 ft FT-R SRL-R (721560R), the 60 ft personnel winch, leg brackets, a leg safety chain, and storage bags for the tripod, the winch, and the SRL-R.
The lightweight, compact FT-R Class 1 SRL-R serves as both a self-retracting lifeline and a rapid-activation retrieval device, so one head-sheave setup covers fall arrest, entry, and non-entry rescue.
One Kit, Everything the Entry Needs
FallTech packages the 6 to 11 ft tripod, the FT-R SRL-R (721560R) plus the 60 ft personnel winch, and matched hardware as a single part number, so the equipment that arrives on site is the equipment the rescue plan calls for. Each component keeps its own individual documentation for your submittal package.
The included storage bags are the difference between this kit and the non-bag version: gear stays clean, organized, and ready to deploy, and nothing rides loose in the truck between jobs.
Key Features
Complete Portable System
Fast setup, rescue, and retrieval in confined space environments from one boxed kit.
FT-R 3-Way SRL-R
Serves as both a self-retracting lifeline and a rapid-activation retrieval device. Pull the pin, crank, and recover the entrant.
Adjustable Aluminum Tripod
Two-stage telescoping legs adjust from 6 to 11 ft with a leg safety chain for secure, stable operation.
Storage Bags Included
Storage bags for the tripod, the winch, and the srl-r protect the equipment in the truck and speed mobilization between entry points.
Galvanized Steel Lifeline
7/32 in galvanized steel wire rope stands up to abrasive portal edges and daily field use.
Personnel Winch
60 ft hand-crank winch with automatic brake handles entry and egress while the SRL-R provides fall arrest backup.
A kit covers the equipment, not the program. OSHA 1910.146 still requires atmospheric testing, an attendant, and a written permit program for permit-required spaces. This system provides the anchor, lifting, and retrieval hardware that program calls for.
Compliance Standards
OSHA 1910.146
Permit-required confined space regulation that drives retrieval equipment requirements for entrants.
ANSI Z359.14-2021
The included FT-R SRL-R is a certified Class 1 SRL-R under ANSI Z359.14-2021.
OSHA 1926.502 and 1910.140
Component compliance for the SRL-R and tripod; see each component part number for individual documentation.
ANSI Z359.4
The included personnel winch is designed for raising and lowering personnel; see the winch manual for its ANSI Z359.4 documentation.
Typical Applications
How to Use
Follow the FallTech instruction manuals for the tripod, winch, and SRL-R. The sequence below is an overview only.
- Set the tripod. Position it over the portal, extend the legs to the working height, and secure the leg safety chain.
- Mount the devices. Attach the SRL-R and winch to the leg brackets and route the line over the head sheave.
- Connect the entrant. Attach the lifeline to the dorsal D-ring. Use the winch line for entry and egress and the SRL-R as fall arrest backup.
Inspection and Retirement
Inspect each component before use following its manual. A competent person must inspect the full system at least annually.
- Tripod: legs, pins, sheaves, feet, and safety chain.
- SRL-R: housing, lifeline, snap hook, brakes, and retrieval mode.
- Winch: line, hook, crank, and automatic brake function.
- Connectors: gates close and lock fully; no cracks or corrosion.
- Bags and labels: labels legible; date of first use recorded.
Retirement triggers: an arrested fall, failed inspection, illegible labels, or damage found on any component. Remove the affected component from service immediately.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 6 to 11 ft system with 3-way SRL-R and winch |
|---|---|
| SKU | 7504B |
| Tripod | 6 to 11 ft adjustable aluminum, two-stage telescoping legs (7275) |
| SRL-R | 60 ft galvanized steel cable FT-R SRL-R, Class 1 (721560R) |
| Winch | 60 ft personnel winch (7297) |
| Storage | Storage bags for the tripod, the winch, and the srl-r |
| Capacity | One entrant, 310 lb max. on the SRL-R |
| Standards | For ANSI and OSHA compliance, see each component part number |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7504B Submittals and Documentation
7275 Tripod Instruction Manual (PDF)Installation, operation, and maintenance of the 6 to 11 ft adjustable tripod. 721560R SRL-R Instruction Manual (PDF)Use, capacity, and inspection procedures for the FT-R SRL-R. 721560R SRL-R Spec Sheet (PDF)Performance and material specifications for the FT-R SRL-R. 721560R Declaration of Conformity (PDF)ANSI Z359.14-2021 conformity certification for the FT-R SRL-R. 7297 Winch Instruction Manual (PDF)Use and inspection procedures for the FallTech confined space personnel winch family.Complete Your Confined Space System
- FallTech 7504 60 ft Tripod Kit with Winch. The comparable 11 ft winch kit without the storage bag package.
- FallTech Confined Space Tripod, 6 to 11 ft Adjustable. The 6 to 11 ft adjustable tripod.
- FallTech 721560R FT-R 3-Way SRL-R, 60 ft Cable, Class 1. The standard FT-R with a 60 ft galvanized steel cable.
- FallTech Confined Space Personnel Winch. Hand-crank personnel lifting with an automatic brake.
Specifying Confined Space Equipment for Your Crew?
The right system depends on the portal, the depth, and your rescue plan. Confirm your application with us and we will make sure every component matches before it ships.
Call 863-703-4522 to talk to a fall protection specialist.
