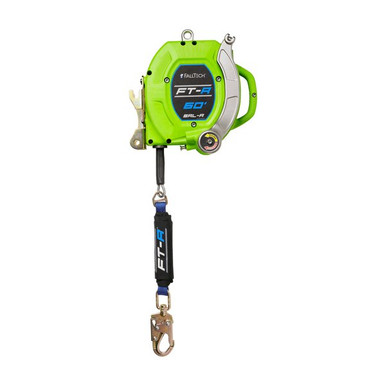

721560R FT-R 3-Way SRL-R, 60 ft Cable, Class 1
The FallTech 721560R FT-R 3-Way Retrieval SRL-R combines a 60 ft self-retracting lifeline with integral hand-crank rescue in one Class 1 device. The 3/16 in galvanized steel cable carries 3,400 lb minimum static strength, and the unit mounts to FallTech tripods and modular davit systems or connects to overhead anchorage.
When a fall occurs, the attendant pulls the release pin to engage the retrieval handle: rotating clockwise lowers the worker in a controlled descent and counterclockwise raises them steadily to safety, with no extra tools or equipment. Per the sell sheet it runs over 30 percent lighter than comparable SRL-Rs, and it is certified to ANSI Z359.14-2021 and CSA Z259.2.2-2017.
Who Needs This Product
Confined space teams that must build rescue into the entry plan. OSHA 1910.146 requires a means of rescue before anyone enters a permit space, and a 3-way SRL-R is the standard answer: it protects the worker during entry and descent, then converts to a winch the attendant can operate immediately if something goes wrong. The FT-R version brings the platform's lighter housing to a device category where transport weight is a daily complaint.
Features
Dual-mode functionality
Seamless transition from fall arrest to emergency retrieval: pull the release pin, engage the handle, and begin raising or lowering with no extra tools or equipment.
Integral hand crank
Clockwise rotation lowers the worker in a controlled descent; counterclockwise raises them steadily to the entry point, per the MCS11 manual.
Over 30 percent lighter
The compact, rugged housing runs over 30 percent lighter than comparable SRL-Rs, easing transport to the manhole and speeding setup.
Tripod and davit mounting
Mounts to FallTech tripods and modular davit systems with the matching bracket, or connects to overhead anchorage.
Galvanized steel lifeline
60 ft of 3/16 in galvanized cable rated to 3,400 lb minimum static strength for repeated entry work.
UV and scratch resistant labels
Labeling stays legible through jobsite wear, keeping the device inspectable and in service.
Safety first. A retrieval SRL-R is one part of a permit-required confined space program. OSHA 1910.146 requires an attendant, a rescue plan, and retrieval equipment before entry; rig this device to its tripod or davit per the MCS11 manual, and never enter a permit space without the attendant able to operate the retrieval function immediately.
Compliance Standards
ANSI Z359.14-2021
Certified as a Class 1 SRL-R per the declaration of conformity listing 721560R, with average arrest force of 1,350 lb or less.
OSHA 1910.140 and 1926.502
Satisfies OSHA general industry and construction requirements for personal fall arrest connecting devices.
OSHA 1910.146
Supports permit-required confined space retrieval requirements when rigged with a compliant tripod or davit system.
CSA Z259.2.2-2017
Certified to the Canadian standard for self-retracting devices per the CSA declaration listing 721560R.
Applications
How to Use
The FT-R SRL-R protects the entrant on the way down and becomes the rescue winch the moment it is needed.
- Inspect first. Check housing, cable, hook, crank mechanism, and indicators per the MCS11 manual before every entry.
- Mount the device. Install on the FallTech tripod or davit with the matching bracket, or connect to overhead anchorage rated per OSHA.
- Connect the entrant. Attach the swivel snap hook to the dorsal D-ring and confirm the gate is closed and locked.
- Attend the entry. The lifeline pays out and retracts with the worker; the attendant monitors from the entry point throughout.
- Rescue if needed. Pull the release pin and engage the handle: clockwise lowers, counterclockwise raises the worker to safety in a controlled motion.
Inspection and Service Life
OSHA requires inspection before each use, and ANSI Z359.14-2021 adds formal inspection by a competent person on the manufacturer schedule in the MCS11 manual. Log formal inspections so the service history follows the device.
- Housing and handle: check for cracks, deformation, and free crank rotation in both directions
- Lifeline: extend the working length and check the galvanized cable for kinks, birdcaging, broken wires, and corrosion
- Retrieval mechanism: verify the release pin engages and disengages positively per the manual
- Hook: confirm the swivel snap hook gate closes, locks, and swivels freely
- Labels: verify all labels are present and legible, including retrieval operation markings
Remove the device from service immediately if it has arrested a fall or performed a rescue until a competent person inspects it, and destroy retired equipment so it cannot return to service.
Product Video
See the Frontline davit arm system set up for confined-space entry and non-entry rescue retrieval.
Who Needs This Product
This product is a confined space davit system - the rotating retrieval point that lowers and recovers workers and material over an opening. Confined space teams, utilities, and tank crews build their entry and non-entry rescue around it. It requires a rated winch or 3-way SRL, a full body harness, and a written rescue plan to form a complete system.
Features
360-degree boom
Swing the load over the opening and away to the landing zone.
Two integrated pulleys
Run a fall arrest SRL and a retrieval winch line simultaneously.
Permanent base options
Mount to steel, concrete, or a truck bed for mobile rescue.
Made in the USA
Patriot-line build for Buy American specs.
Removable boom
Lift the boom out when the entry point is not in use.
Tank and edge ready
Reaches over tank rims and leading edges.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Class 1 3-Way Retrieval Self-Retracting Lifeline (SRL-R) |
|---|---|
| SKU | 721560R |
| Lifeline | 60 ft, 3/16" galvanized steel cable; 3,400 lb min. static strength |
| Retrieval | Integral hand crank; pull-pin engagement; raise and lower |
| Device Static Strength | 3,600 lb minimum |
| Average Arrest Force | 1,350 lb maximum |
| Connector | Steel swivel snap hook |
| Mounting | FallTech tripods and modular davits, or overhead anchorage |
| ANSI User Capacity | 130 to 310 lb including clothing and tools |
| Standards | ANSI Z359.14-2021; OSHA 1910.140, 1926.502, 1910.146 support; CSA Z259.2.2-2017 |
| Compatible Brackets | 7281, 7278 series per FallTech published data |
| Warranty | FallTech 2-year manufacturer warranty, honored through Fall Protection Distributors |
