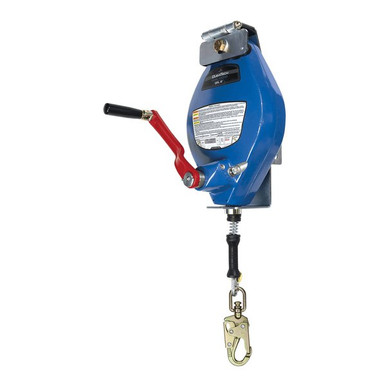

FallTech DuraTech 3-Way SRL-R for Tripods
Delivers reliable 3-way operation an SRL and a Retrieval Winch for emergency rescue. Heavy-duty, lightweight and corrosion resistant cast aluminum housing construction.
Features rugged Internal inertial braking system with dual disc brakes. 3/16" galvanized steel cable lifeline with load-indicating swivel snap hook.
Who Needs This Product
Confined space entry supervisors, municipal utility crews, wastewater treatment operators, and industrial maintenance teams rely on a 3-way SRL-R as the heart of a compliant entry and rescue system. If your crew enters manholes, vaults, tanks, or vessels, OSHA 1910.146 requires a retrieval system for non-entry rescue, and a 3-way SRL-R provides fall arrest during the climb and mechanical retrieval when a rescue is needed.
Features
Delivers reliable 3-way operation an
Delivers reliable 3-way operation an SRL and a Retrieval Winch for emergency rescue.
Heavy-duty
Heavy-duty, lightweight and corrosion resistant cast aluminum housing construction.
Features rugged Internal inertial braking
Features rugged Internal inertial braking system with dual disc brakes.
3/16" galvanized steel cable lifeline
3/16" galvanized steel cable lifeline with load-indicating swivel snap hook.
Features integrated proprietary tripod leg
Features integrated proprietary tripod leg mounting bracket.
Includes 20" weather-resistant storage bag
Includes 20" weather-resistant storage bag.
Rescue-ready means inspected and rigged. A 3-way SRL-R only enables non-entry rescue if it is mounted with the correct bracket, inspected, and the attendant knows how to shift it into retrieval mode. Verify your rescue plan before every entry, and confirm fall clearance with the Fall Protection Calculator below.
Compliance Standards
OSHA 1926.502
Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.
1910.66
Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.
OSHA 1910.146
Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Mount the device. Attach the SRL-R to your tripod or davit using the correct mounting bracket, and route the lifeline through the head sheave or pulley.
- Connect the entrant. Attach the lifeline snap hook to the dorsal D-ring of the entrant's full-body harness.
- Verify SRL mode. Confirm the unit is in SRL mode for normal entry so the lifeline pays out and retracts with the entrant.
- Rescue when needed. Shift the unit into retrieval mode and crank the handle to raise the entrant, allowing one attendant to complete a non-entry rescue.
- Remove from service after events. After any rescue or fall arrest event, remove the device from service and send it for factory inspection.
Inspection and Retirement
Inspect the device before each use following the manual checklist. A competent person inspection is required at least annually.
- Housing: cracks, impact damage, loose fasteners, or corrosion.
- Lifeline: kinks, broken wires, corrosion, or cut or abraded fibers on rope models.
- Snap hook: proper gate action, locking function, and load indicator condition.
- Braking system: test with a sharp pull; the brakes must engage and hold.
- Retrieval mode: must engage cleanly and hold a load without slipping.
Retirement triggers: any fall arrest or rescue load on the device, a deployed load indicator, lifeline damage, or any condition where the inspector cannot verify the device is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | DuraTech 3-way SRL-R |
|---|---|
| SKU | 7281X |
| Static Strength | 3,000 lb min. |
| Avg. Arrest Force | 1,125 lb |
| Max Arrest Force | 1,800 lb |
| Max Arrest Distance | 54" |
| OSHA User Capacity | 130 to 310 lb max. |
| Cable | 3/16" galvanized steel; 3,400 lb min. static strength |
| Lifeline Connector | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Housing and Drum | Machined aluminum alloy |
| Available Configurations | 7281 (60 ft Galvanized Cable), 7281S (60 ft Stainless Steel Cable), 7281TT (45 ft Technora Rope) |
| Standards | OSHA 1926.502 and 1910.66 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7281 Submittals and Documentation
7281X Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 7281X Declaration of Conformity (7281) (PDF)Manufacturer conformity certification for compliance files and submittal packages. 7281X Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary. 7281X Declaration of Conformity (7281TT) (PDF)Manufacturer conformity certification for compliance files and submittal packages. 7281X Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary.Complete Your Confined Space System
