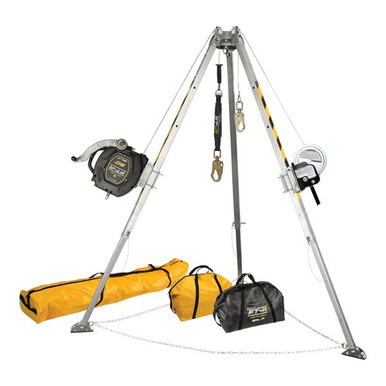

FallTech 7509TB 8 ft tripod kit with FT-R Arc Flash SRL-R, arc winch, and storage bags
FallTech

FallTech 7509TB 8 ft Arc Flash Tripod Kit, SRL-R, Winch, Bags

(No reviews yet) Write a Review
$5,758.00
Brand:
FallTech
SKU:
7509TB
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Confined Space Systems

FallTech 7509TB 8 ft Arc Flash Tripod Kit, SRL-R, Winch, Bags

System kit includes the 5 to 8 ft adjustable aluminum tripod, the 60 ft FT-R Arc Flash SRL-R (721560RT), the 60 ft personnel winch, leg brackets, a leg safety chain, and storage bags for the tripod, the winch, and the SRL-R.

The lightweight, compact FT-R Class 1 SRL-R serves as both a self-retracting lifeline and a rapid-activation retrieval device, so one head-sheave setup covers fall arrest, entry, and non-entry rescue.

FallTech 7509TB 8 ft tripod kit with FT-R Arc Flash SRL-R, arc winch, and storage bags
5 to 8 ftTripod Height
60 ftTechnora SRL-R Rope
Class 1ANSI SRL-R Type
310 lbUser Capacity
3-WaySRL Plus Retrieval
BagsStorage Included
AluminumTripod Legs
ASTM F887Arc Rated SRL

One Kit, Everything the Entry Needs

FallTech packages the 5 to 8 ft tripod, the FT-R Arc Flash SRL-R (721560RT) plus the 60 ft personnel winch, and matched hardware as a single part number, so the equipment that arrives on site is the equipment the rescue plan calls for. Each component keeps its own individual documentation for your submittal package.

The included storage bags are the difference between this kit and the non-bag version: gear stays clean, organized, and ready to deploy, and nothing rides loose in the truck between jobs.

Key Features

Complete Portable System

Fast setup, rescue, and retrieval in confined space environments with arc flash risk from one boxed kit.

FT-R 3-Way SRL-R

Serves as both a self-retracting lifeline and a rapid-activation retrieval device. Pull the pin, crank, and recover the entrant.

Adjustable Aluminum Tripod

Two-stage telescoping legs adjust from 5 to 8 ft with a leg safety chain for secure, stable operation.

Storage Bags Included

Storage bags for the tripod, the winch, and the srl-r protect the equipment in the truck and speed mobilization between entry points.

Arc-Rated Lifeline

ASTM F887-rated Technora rope withstands the extreme temperatures from arc flash events.

Personnel Winch

60 ft hand-crank winch with automatic brake handles entry and egress while the SRL-R provides fall arrest backup.

⚠

A kit covers the equipment, not the program. OSHA 1910.146 still requires atmospheric testing, an attendant, and a written permit program for permit-required spaces. This system provides the anchor, lifting, and retrieval hardware that program calls for.

Compliance Standards

OSHA 1910.146

Permit-required confined space regulation that drives retrieval equipment requirements for entrants.

ANSI Z359.14-2021

The included FT-R SRL-R is a certified Class 1 SRL-R under ANSI Z359.14-2021.

ASTM F887-20

The included arc flash SRL-R carries an ASTM F887 arc rating, documented in FallTech DoC D1126092.

ANSI Z359.4

The included personnel winch is designed for raising and lowering personnel; see the winch manual for its ANSI Z359.4 documentation.

Typical Applications

New programsStanding up a new confined space entry program with matched equipment.
Utility crewsVault and manhole entries with arc flash exposure.
System replacementReplacing aging mixed-brand systems with one warrantied package.
Rescue standbyRetrieval coverage during permit-required entries.

How to Use

Follow the FallTech instruction manuals for the tripod, winch, and SRL-R. The sequence below is an overview only.

  1. Set the tripod. Position it over the portal, extend the legs to the working height, and secure the leg safety chain.
  2. Mount the devices. Attach the SRL-R and winch to the leg brackets and route the line over the head sheave.
  3. Connect the entrant. Attach the lifeline to the dorsal D-ring. Use the winch line for entry and egress and the SRL-R as fall arrest backup.

Inspection and Retirement

Inspect each component before use following its manual. A competent person must inspect the full system at least annually.

  • Tripod: legs, pins, sheaves, feet, and safety chain.
  • SRL-R: housing, lifeline, snap hook, brakes, and retrieval mode.
  • Winch: line, hook, crank, and automatic brake function.
  • Connectors: gates close and lock fully; no cracks or corrosion.
  • Bags and labels: labels legible; date of first use recorded.

Retirement triggers: an arrested fall, failed inspection, illegible labels, or damage found on any component. Remove the affected component from service immediately.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Type5 to 8 ft system with 3-way SRL-R and winch
SKU7509TB
Tripod5 to 8 ft adjustable aluminum, two-stage telescoping legs (7276T)
SRL-R60 ft Technora rope FT-R Arc Flash SRL-R, Class 1 (721560RT)
Winch60 ft personnel winch (7297T)
StorageStorage bags for the tripod, the winch, and the srl-r
CapacityOne entrant, 310 lb max. on the SRL-R
StandardsFor ANSI and OSHA compliance, see each component part number
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What is included in the FallTech 7509TB tripod kit?
The kit includes the 5 to 8 ft adjustable aluminum tripod (7276T), the 60 ft FT-R Arc Flash SRL-R with Technora rope (721560RT), the personnel winch (7297T), leg brackets, a leg safety chain, and storage bags for the equipment.
How is the 7509TB different from the FallTech 7509T?
The 7509TB adds included storage bags for the tripod, winch, and the SRL-R device, and it is built around the FT-R series retrieval SRL. The 7509T is the comparable kit without the bag package.
What does the 3-way SRL-R do?
The FT-R SRL-R works as a self-retracting lifeline during normal work. If a rescue is needed, pulling the release pin engages the retrieval handle, allowing the attendant to raise or lower the entrant without entering the space, which supports the non-entry rescue that OSHA 1910.146 prefers.
How tall does the tripod adjust?
The two-stage telescoping legs adjust from 5 to 8 ft, secured with leg pins and a leg safety chain around the feet.
What is the capacity of this system?
The FT-R SRL-R is rated for one worker with a combined weight of up to 310 lb under ANSI Z359.14-2021. See each component manual for its individual capacity and compliance detail.
Does this kit meet OSHA confined space requirements?
The kit provides the anchorage, fall arrest, and retrieval hardware that OSHA 1910.146 calls for during permit-required entries. The written permit program, atmospheric testing, and attendant requirements remain the responsibility of the employer.
Can I lift tools or material with the winch?
No. The included winch is a personnel winch designed for raising and lowering people. Use dedicated material handling equipment for tools and loads, and keep the SRL-R connected as fall arrest backup whenever the winch supports an entrant.

FallTech 7509TB Submittals and Documentation

7276T Tripod Instruction Manual (PDF)Installation, use, capacity, and inspection procedures for the 8 ft tripod. 7276T Declaration of Conformity (PDF)Manufacturer conformity certification for the 8 ft tripod. 7276T Tripod Spec Sheet (PDF)Specifications and compliance summary for the 8 ft tripod. 721560RT SRL-R Instruction Manual (PDF)Use, capacity, and inspection procedures for the FT-R Arc Flash SRL-R. 721560RT SRL-R Spec Sheet (PDF)Performance and material specifications for the FT-R Arc Flash SRL-R. 721560RT Declaration of Conformity (PDF)ANSI Z359.14-2021 and ASTM F887 conformity certification, declaration D1126092. 7297T Winch Instruction Manual (PDF)Use and inspection procedures for the Technora rope personnel winch.
