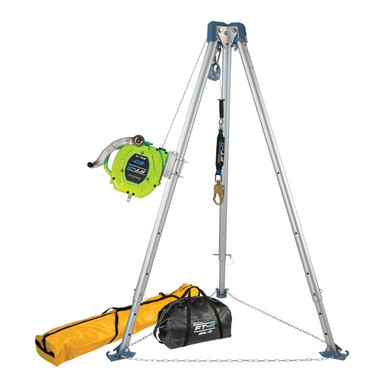

FallTech 7500B 11 ft Tripod Kit with FT-R SRL-R and Storage Bags
System kit includes the 6 to 11 ft adjustable aluminum tripod, the 60 ft FT-R SRL-R (721560R), leg brackets, a leg safety chain, and storage bags for both the tripod and the SRL-R device.
The lightweight, compact FT-R Class 1 SRL-R serves as both a self-retracting lifeline and a rapid-activation retrieval device, so one head-sheave setup covers fall arrest, entry, and non-entry rescue.
One Kit, Everything the Entry Needs
FallTech packages the 6 to 11 ft tripod, the FT-R SRL-R (721560R), and matched hardware as a single part number, so the equipment that arrives on site is the equipment the rescue plan calls for. Each component keeps its own individual documentation for your submittal package.
The included storage bags are the difference between this kit and the non-bag version: gear stays clean, organized, and ready to deploy, and nothing rides loose in the truck between jobs.
Key Features
Complete Portable System
Fast setup, rescue, and retrieval in confined space environments from one boxed kit.
FT-R 3-Way SRL-R
Serves as both a self-retracting lifeline and a rapid-activation retrieval device. Pull the pin, crank, and recover the entrant.
Adjustable Aluminum Tripod
Two-stage telescoping legs adjust from 6 to 11 ft with a leg safety chain for secure, stable operation.
Storage Bags Included
Storage bags for both the tripod and the srl-r device protect the equipment in the truck and speed mobilization between entry points.
Galvanized Steel Lifeline
7/32 in galvanized steel wire rope stands up to abrasive portal edges and daily field use.
Class 1 Anchoring
ANSI Class 1 rating means the SRL-R anchors at or above the D-ring on the tripod head, away from edge exposures.
A kit covers the equipment, not the program. OSHA 1910.146 still requires atmospheric testing, an attendant, and a written permit program for permit-required spaces. This system provides the anchor, lifting, and retrieval hardware that program calls for.
Compliance Standards
OSHA 1910.146
Permit-required confined space regulation that drives retrieval equipment requirements for entrants.
ANSI Z359.14-2021
The included FT-R SRL-R is a certified Class 1 SRL-R under ANSI Z359.14-2021.
OSHA 1926.502 and 1910.140
Component compliance for the SRL-R and tripod; see each component part number for individual documentation.
Component Standards
For full ANSI and OSHA compliance detail, see the individual component documentation linked below.
Typical Applications
How to Use
Follow the FallTech instruction manuals for the tripod and SRL-R. The sequence below is an overview only.
- Set the tripod. Position it over the portal, extend the legs to the working height, and secure the leg safety chain.
- Mount the device. Attach the SRL-R to the leg bracket and route the line over the head sheave.
- Connect the entrant. Attach the lifeline to the dorsal D-ring. The SRL-R provides fall arrest during work and converts to retrieval for rescue.
Inspection and Retirement
Inspect each component before use following its manual. A competent person must inspect the full system at least annually.
- Tripod: legs, pins, sheaves, feet, and safety chain.
- SRL-R: housing, lifeline, snap hook, brakes, and retrieval mode.
- Connectors: gates close and lock fully; no cracks or corrosion.
- Bags and labels: labels legible; date of first use recorded.
Retirement triggers: an arrested fall, failed inspection, illegible labels, or damage found on any component. Remove the affected component from service immediately.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 6 to 11 ft system with 3-way SRL-R |
|---|---|
| SKU | 7500B |
| Tripod | 6 to 11 ft adjustable aluminum, two-stage telescoping legs (7275) |
| SRL-R | 60 ft galvanized steel cable FT-R SRL-R, Class 1 (721560R) |
| Storage | Storage bags for both the tripod and the srl-r device |
| Capacity | One entrant, 310 lb max. on the SRL-R |
| Standards | For ANSI and OSHA compliance, see each component part number |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7500B Submittals and Documentation
7275 Tripod Instruction Manual (PDF)Installation, operation, and maintenance of the 6 to 11 ft adjustable tripod. 721560R SRL-R Instruction Manual (PDF)Use, capacity, and inspection procedures for the FT-R SRL-R. 721560R SRL-R Spec Sheet (PDF)Performance and material specifications for the FT-R SRL-R. 721560R Declaration of Conformity (PDF)ANSI Z359.14-2021 conformity certification for the FT-R SRL-R.Complete Your Confined Space System
- FallTech 7500 60 ft Tripod Kit. The comparable 11 ft kit without the storage bag package.
- FallTech Confined Space Tripod, 6 to 11 ft Adjustable. The 6 to 11 ft adjustable tripod.
- FallTech 721560R FT-R 3-Way SRL-R, 60 ft Cable, Class 1. The standard FT-R with a 60 ft galvanized steel cable.
- FallTech Confined Space Personnel Winch. Hand-crank personnel lifting with an automatic brake.
Specifying Confined Space Equipment for Your Crew?
The right system depends on the portal, the depth, and your rescue plan. Confirm your application with us and we will make sure every component matches before it ships.
Call 863-703-4522 to talk to a fall protection specialist.
