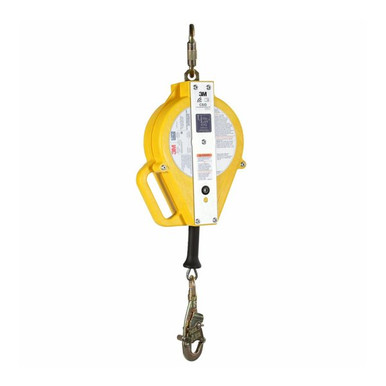

Ultra-Lok RSQ Self-Retracting Lifeline Galvanized Cable, 50 ft
The 3M DBI-SALA Ultra-Lok Self-Retracting Lifeline (SRL) extends and retracts with the users as they perform their work task. Should a fall occur, the speed sensing brake system will activate helping stop the fall and reducing the forces imposed on the user to safe levels. 3M DBI-SALA Ultra-Lok Self-Retracting Lifelines feature quality and durable systems.
29 CFR OSHA 1910.140; 29 CFR OSHA 1926.502 Built for overhead service at length, with a sealed drum design engineered for harsh environments and long service life.
Who Needs This Product
For overhead service at length: platforms, tank tops, crane runways, and confined space entries where the anchor lives high and the work runs deep.
Features
Durable aluminum or thermoplastic housing
Durable aluminum or thermoplastic housing, engineered into this DBI-SALA configuration as standard.
Available in multiple configurations,
Available in multiple configurations, lifeline lengths, and material types.
Fall arrest energy dissipation system
Fall arrest energy dissipation system, engineered into this DBI-SALA configuration as standard.
Quick activating speed-sensing locking
Quick activating speed-sensing locking system, engineered into this DBI-SALA configuration as standard.
Swiveling anchorage connector loop
Swiveling anchorage connector loop, engineered into this DBI-SALA configuration as standard.
Swiveling self-locking snap hook with
Swiveling self-locking snap hook with impact indicator.
Technical Specifications
| SKU | 3503888 |
|---|---|
| Anchor Connection Type | Carabiner |
| Anchor Hook Material | Zinc Plated Steel |
| Average Arrest Force | 900 lbf (OSHA 130 lb - 310 lb) |
| Connected Safety ID Equipped | Yes |
| Features | Swiveling Anchorage |
| For Use With | Full Body Harness & Anchor Point |
| Housing Material | Polyurethane |
| Install Type | Portable & Removable |
| Leg Count | Single-Leg |
| Lifeline Connection Type | Swivel Snap Hook |
| Lifeline Hook Material | Zinc Plated Steel |
| Lifeline Length | 50 ft |
| Lifeline Material | Galvanized Cable |
| Maximum Arrest Force | 1350 lbf (OSHA 130 lb - 310 lb) |
| Maximum Number of Users | One |
| Mounting Type | Block to Anchor Point |
| Net Weight | 19 lb |
| Product Type | Self Retracting Lifeline - Cable |
Overhead use only. Anchor per the instruction manual, keep the lifeline path clear, and remove the unit from service after any fall arrest for factory-authorized inspection.
Compliance Standards
OSHA 1926.502 and 1910.140
Meets OSHA personal fall protection requirements for construction and general industry.
3M Quality
Designed, tested, and certified by 3M Fall Protection, the successor to Capital Safety and the DBI-SALA legacy.
One-Year Warranty
Covered by the 3M Global Product Warranty against factory defects in workmanship and materials.
Typical Applications
Setup Overview
- Inspect the housing, full lifeline payout, impact indicator, and connectors before use.
- Mount the unit to the overhead anchorage per the manual.
- Connect the lifeline hook to the harness dorsal D-ring.
- Check retraction and brake engagement with a sharp pull test per the manual.
- Verify fall clearance below the working surface before entry.
Full use instructions ship with the unit; the instruction manual is linked in the documentation section below.
Inspection and Retirement
Inspect before each use, and have a competent person inspect the unit on a documented schedule per the applicable ANSI standard and the 3M manual.
- Hardware: cracks, distortion, corrosion, and loose fasteners.
- Webbing or lifeline: cuts, frays, burns, abrasion, and chemical damage.
- Connectors: gates close and lock; no distortion at either end.
- Labels: present and legible, with the inspection log current.
- Retraction and brake: smooth payout, positive lock on a sharp pull, and an undeployed impact indicator.
Retirement triggers: any fall arrest event, failed inspection, or damage beyond the limits in the manual.
