FallTech Hi-Vis Vest Harness

FallTech 70152X3XO Hi-Vis Orange Construction-grade Vest with 1D Full Body Harness, 2X/3X

The FallTech 70152X3XO combines a high-visibility orange construction-grade vest with an integrated Contractor 7015-series 1D full body harness in a 2X/2X vest with 2X/3X harness configuration. Day-bright mesh and solid fabric construction with secondary reflectivity keeps larger workers visible while the dorsal D-ring handles fall arrest.

It meets ANSI Z359.11-2021 and OSHA 1926.502 and 1910.66, with CSA Z259.10-2018 coverage documented in declaration BC1019002. The vest features four front pockets and internal donning fasteners for removable integration with the harness straps. Every unit ships with the full FallTech documentation package, linked below for your safety submittals.

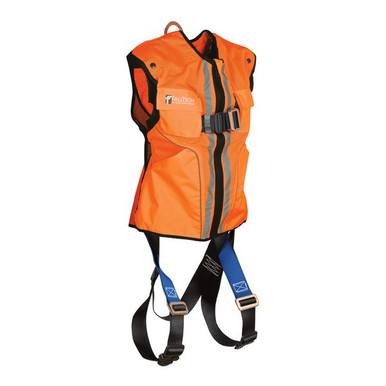

FallTech 70152X3XO Hi-Vis Orange Construction-grade Vest with integrated 1D Standard Non-belted Full Body Harness, 2X/2X vest with 2X/3X harness

3,600 lbStatic Strength Minimum

130 to 310 lbANSI User Capacity

130 to 425 lbOSHA User Capacity

1 D-RingDorsal D-Ring Placement

5,000 lb webPolyester Webbing Strength

2X/3XHarness Size In This Config

ANSI Z359.112021 Edition Compliance

4 PocketsFront Vest Storage

Who Needs This Product

Road crews, flaggers, utility workers, and construction trades who must wear high-visibility apparel and a fall arrest harness at the same time. The integrated vest and harness combo eliminates the bunching and D-ring access problems of wearing a separate vest over a harness, sized here for larger workers.

Features

Integrated vest and harness

Includes a high-visibility orange safety vest with an integrated Contractor 7015-series harness, donned as one garment.

Dorsal D-ring fall arrest

The harness features a dorsal D-ring for fall arrest with mating buckle leg and chest closures.

Day-bright hi-vis fabric

Day-bright mesh and solid fabric construction with secondary reflectivity keeps you visible on active jobsites.

Four front pockets

The vest features four front pockets for tools, markers, and documents within easy reach.

Removable harness integration

Internal donning fasteners and loops allow removable integration with the harness straps for cleaning or replacement.

5,000 lb polyester webbing

Polyester harness webbing rated to 5,000 lb min. static strength carries the load path through the harness.

⚠

Safety first. A full body harness is only one part of a personal fall arrest system. Verify anchorage strength, connector compatibility, and fall clearance before work begins, and never use a harness that has arrested a fall until a competent person removes it from service. When calculating minimum required fall clearance, the FallTech manual adds 1.5 ft for harness stretch and D-ring shift during arrest.

Compliance Standards

ANSI Z359.11-2021

Meets the ANSI/ASSP standard for full body harnesses per declaration of conformity B1117168.

OSHA 1926.502 and 1910.66

Satisfies OSHA construction and powered platform requirements for personal fall arrest system body support.

CSA Z259.10-2018

CSA declaration BC1019002 lists the 70152X3XO by SKU, documenting Z259.10-2018 conformity for Canadian jobsites.

Applications

Roadway and traffic workFlaggers and paving crews who must combine Class 2 visibility with fall arrest.

Utility and municipal workCrews moving between traffic exposure and elevated tasks all day.

Bridge and highway constructionWorkers over live lanes where a vest and harness are both required.

Airport and rail operationsHigh-visibility zones with elevated maintenance requirements.

Commercial constructionSites that mandate hi-vis apparel for every trade on the ground and at height.

Large-size workforcesThe 2X/2X vest with 2X/3X harness fits larger workers without doubling up garments.

How to Use

Donning a full body harness takes less than a minute once the straps are adjusted to your body.

Inspect first. Check webbing, stitching, D-rings, and buckles for damage before every use. Remove the harness from service if you find cuts, burns, or deformed hardware.
Don the harness. Hold the dorsal D-ring, shake the harness so the straps fall free, and slip it on like a jacket.
Close and adjust. Connect the chest and leg closures, then adjust the torso so the dorsal D-ring sits between the shoulder blades.
Check the fit. You should be able to slide a flat hand, but not a fist, under the leg straps. Tuck loose strap ends into the keepers.
Connect and verify. Attach your lanyard or SRL to the correct D-ring for the task, and verify anchorage and clearance based on the delivery location of the work.

Inspection and Service Life

OSHA requires personal fall protection to be inspected before each use, and ANSI Z359.11 adds a formal inspection by a competent person at least annually. Log formal inspections so the service history follows the harness.

Webbing: look for cuts, fraying, abrasion, burns, chemical damage, and UV fading along every strap
Stitching: check for pulled, broken, or abraded threads, especially at load-bearing junctions
D-rings and hardware: confirm no cracks, sharp edges, corrosion, or distortion, and that buckles engage positively
Labels: verify the label pack is present and legible, including the date of first use
Load indicators: confirm the fall arrest indicator has not deployed

Retire the harness immediately if it has arrested a fall, if any inspection point fails, or if the label is missing or unreadable. Cut the webbing on retired units and destroy retired equipment so it cannot return to service.

Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Type	Non-Belted Full Body Harness with Hi-Vis Vest
SKU	70152X3XO
Family	Hi-Vis Vest Harness
D-Rings	1 (Dorsal)
Closures	Mating Buckle Legs and Chest
Vest	Hi-Vis Orange mesh and solid fabric, secondary reflectivity, four front pockets
Webbing	Polyester; 5,000 lb min. static strength
D-Ring Hardware	Plated alloy steel; 5,000 lb min. static strength
Buckles and Adjusters	Plated alloy steel; 3,372 lb min. static strength
Static Strength	3,600 lb min.
ANSI User Capacity	130 to 310 lb max.
OSHA User Capacity	130 to 425 lb max.
Standards	ANSI Z359.11-2021; OSHA 1926.502 and 1910.66; CSA Z259.10-2018
Available Configurations	70152X3XO (2X/2X Vest with 2X/3X Harness)
Warranty	FallTech 2-year manufacturer warranty, honored through Fall Protection Distributors

Frequently Asked Questions

What size is the 70152X3XO?

The 70152X3XO is the extended-size configuration of the FallTech hi-vis orange vest harness: a 2X/2X vest paired with a 2X/3X harness. For smaller workers, the same combo is available in other configurations such as the hi-vis lime 7015-series vest harnesses we carry.

What standards does the 70152X3XO meet?

The 70152X3XO complies with ANSI Z359.11-2021 per declaration of conformity B1117168 and OSHA 1926.502 and 1910.66. CSA Z259.10-2018 conformity is documented in declaration BC1019002, which lists the 70152X3XO by SKU.

How many D-rings does the harness have?

The integrated 7015-series harness has 1 D-ring: dorsal. The dorsal D-ring is the fall arrest connection point for your lanyard or SRL, accessible through the back of the vest.

What is the weight capacity of the 70152X3XO?

The ANSI user capacity is 130 to 310 lb max. and the OSHA user capacity is 130 to 425 lb max., including the worker, clothing, and tools. Static strength of the harness is 3,600 lb min.

Can the vest be separated from the harness?

Yes. The vest features internal donning fasteners and loops for removable integration with the harness straps, so you can separate the components for cleaning, inspection, or vest replacement.

How often does the 70152X3XO need to be inspected?

OSHA requires an inspection before each use, and ANSI Z359.11 calls for a formal inspection by a competent person at least annually. Inspect the harness webbing through the vest access points, and retire the unit immediately if it arrests a fall or fails any inspection point.

When should I replace the 70152X3XO?

FallTech does not impose a fixed shelf life; service life is determined by inspection. Replace the harness after any fall arrest event, when webbing shows cuts, burns, or heavy abrasion, when hardware is damaged, or when the label is no longer legible. The vest can be replaced separately if the hi-vis fabric fades or tears.

Submittals and Documentation

FallTech 70152X3XO Spec SheetOne-page technical specifications for this product FallTech 70152X3XO Instruction ManualFull user instructions, inspection criteria, and donning procedure FallTech 70152X3XO Declaration of Conformity (ANSI)Manufacturer declaration of conformity to ANSI Z359.11-2021 FallTech 70152X3XO Declaration of Conformity (CSA)Manufacturer declaration of conformity to CSA Z259.10-2018 FallTech 70152X3XO Sizing ChartFallTech harness sizing chart for chest, waist, and thigh measurements

Related FallTech Equipment

Pair this product with compatible FallTech connectors, lanyards, and anchors to build a complete fall protection system with matched components.

Order the FallTech 70152X3XO Today

Every FallTech product we stock ships fast and arrives with full documentation for your safety file. Not sure which size or configuration fits your crew? Our fall protection specialists size body wear every day.

Call 863-703-4522 for expert help Specifying the right body wear for your application, or order online now for delivery based on the delivery location.

FallTech 2-Year Limited Warranty. FallTech warrants to the buyer that all products are free from defects in material and workmanship at the time of shipment. Obligation is limited to product replacement for two (2) years from the date of installation or use by the owner, not to exceed two (2) years from the date of shipment. This warranty is not transferable and is void if the product is changed, altered, or used in a manner other than intended. It covers defects in material and workmanship only; it does not cover normal wear and tear, neglect, abuse, or accident. The limited warranty is provided only to an end-user customer for the period set forth in an order that has been accepted by Fall Protection Distributors, LLC. The end user customer must be: (a) a Buyer purchasing product directly from Fall Protection Distributors, LLC or Buyer of product purchasing from an authorized reseller. The limited warranty covers defects in materials and workmanship in the FallTech product. The limited warranty does not cover problems resulting from external causes such as accident, abuse, misuse, servicing not authorized by Fall Protection Distributors, LLC, usage that is not in accordance with product instructions, failure to follow the product instructions or failure to perform preventive maintenance, problems caused by using accessories, parts, or components not supplied by Fall Protection Distributors, LLC; normal wear and tear; and products with missing or altered service tags or serial numbers. FALL PROTECTION DISTRIBUTORS, LLC’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN PRODUCT IS LIMITED TO REPAIR AND REPLACEMENT OF THE PRODUCT AS SET FORTH IN THIS WARRANTY STATEMENT. EXCEPT AS PROVIDED ABOVE, FALL PROTECTION DISTRIBUTORS, LLC AND ITS SUPPLIERS MAKE NO, AND HEREBY DISCLAIM ALL OTHER, WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
