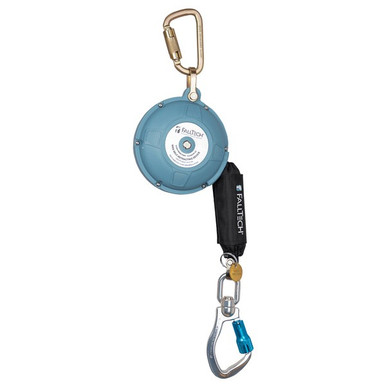

FallTech 7276BWR Contractor SRL, 20 ft Web Lifeline
The FallTech 7276BWR is a 20 ft Contractor web self-retracting lifeline for overhead fall arrest with long working range. The retracting web lifeline pays out as you move and locks in a fall, and a swivel aluminum carabiner reduces lifeline twist while keeping weight down.
It is certified to ANSI Z359.14-2021 for US jobsites; a Canadian-market version (C7276BWR) is also offered at checkout. The C7276BWR is certified to CSA Z259.2.2-2017 per FallTech DoC #DC0204011. This is an overhead-anchorage SRL and is not rated for leading-edge use. Rated for a single user of 130 to 310 lb combined weight.
Who Needs This Product
This product is a self-retracting lifeline (SRL) with a 20 ft web lifeline for overhead-anchored fall arrest. Crews who need extended range from a single overhead anchor use the 20 ft Contractor web SRL. You still need a certified full-body harness and a rated overhead anchorage to complete the system.
Features
20 ft web lifeline
Long-range retracting web lifeline for overhead fall arrest from a single anchor.
Swivel aluminum carabiner
Reduces lifeline twist and cuts overall weight.
Class 1
Certified Class 1 to ANSI Z359.14-2021.
Retracting hands-free protection
The web lifeline retracts as you move, with no slack to manage.
Durable Contractor build
Rugged housing and internal braking for the jobsite.
ANSI certified
Certified to ANSI Z359.14-2021 for US jobsites.
Overhead anchorage only, not for leading edges. This Contractor web SRL is for overhead-anchored fall arrest and is not designed for leading-edge applications. Anchor overhead, and run the Fall Protection Calculator below to confirm clearance.
Compliance Standards
ANSI Z359.14-2021
American National Standard for self-retracting devices, Class 1 (model 7276BWR).
OSHA 29 CFR 1926.502
Federal construction fall protection requirements.
OSHA 29 CFR 1910.140
General industry personal fall protection requirements.
Typical Applications
How to Use the Contractor 20' Web SRL
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the lifeline, braking (sharp-pull lock test), housing, energy absorber, and all connectors before each use.
- Anchor. Connect the swivel carabiner to a rated overhead anchor above the work surface.
- Connect to the harness. Attach the connector to the dorsal D-ring of a certified full-body harness.
- Confirm the connections. Verify every gate is fully closed and locked.
- Verify clearance. Confirm fall clearance and swing-fall below the work surface, and run the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, abrasion, corrosion, kinks, burns, or chemical damage.
- Braking: the lifeline must lock sharply on a quick pull test.
- Housing: cracks, loose fasteners, or a damaged lifeline exit.
- Energy absorber / load indicator: any sign of deployment or activation.
- Connectors and swivels: deformation, corrosion, or gates that fail to lock.
Retire the SRL immediately after any fall-arrest event, or if any inspection point fails. Destroy retired equipment so it cannot return to service.
Product Video
See the Frontline davit arm system set up for confined-space entry and non-entry rescue retrieval.
Who Needs This Product
This product is a confined space davit system - the rotating retrieval point that lowers and recovers workers and material over an opening. Confined space teams, utilities, and tank crews build their entry and non-entry rescue around it. It requires a rated winch or 3-way SRL, a full body harness, and a written rescue plan to form a complete system.
Features
360-degree boom
Swing the load over the opening and away to the landing zone.
Two integrated pulleys
Run a fall arrest SRL and a retrieval winch line simultaneously.
Permanent base options
Mount to steel, concrete, or a truck bed for mobile rescue.
Made in the USA
Patriot-line build for Buy American specs.
Removable boom
Lift the boom out when the entry point is not in use.
Tank and edge ready
Reaches over tank rims and leading edges.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 7276BWR (C7276BWR for the Canadian market) |
|---|---|
| Type | 20 ft web SRL |
| Class | Class 1 (ANSI Z359.14-2021) |
| Lifeline | Web, 20 ft |
| Connector | Swivel aluminum carabiner |
| Capacity | 130 to 310 lb combined weight |
| Leading edge | No. Overhead anchorage only. |
| Standards | ANSI Z359.14-2021 Class 1; OSHA 1926.502 and 1910.140 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7276BWR Contractor 20' Web SRL Submittals and Documentation
7276BWR ANSI Instruction Manual (PDF)Use, class, capacity, and inspection (ANSI Z359.14). 7276BWR ANSI Declaration of Conformity (PDF)Certification to ANSI Z359.14-2021. 7276BWR Spec Sheet (PDF)One-page specifications and compliance summary. 7276BWR Canada Catalogue Supplement (PDF)FallTech Canadian product line reference.7276BWR CSA Declaration of Conformity (PDF)CSA Z259.2.2-2017 certification, DoC DC0204011, for the Canadian-market C7276BWR configuration.Related FallTech Products
