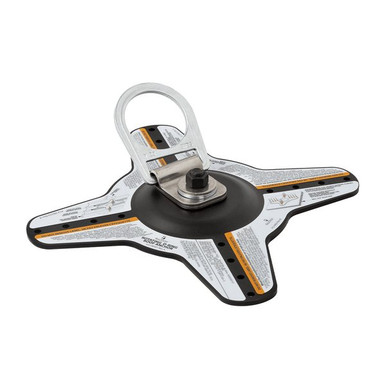

FallTech 7420 rotating 360-degree swivel D-ring roof anchor
FallTech

FallTech 7420 Rotating D-Ring Roof Anchor

(No reviews yet) Write a Review
$210.00
Brand:
FallTech
SKU:
7420
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Anchorage Connectors

FallTech 7420 Rotating D-Ring Roof Anchor

The FallTech 7420 Rotating D-Ring Roof Anchor mounts to a roof structure and provides a forged D-ring that swivels a full 360 degrees, so the connection follows the worker across the roof without twisting the lifeline.

It is certified to ANSI Z359.18-2017, rated for 5,000 lb (22.2 kN), for one worker up to 310 lb (ANSI) or 425 lb (OSHA).

FallTech 7420 rotating 360-degree swivel D-ring roof anchor
5,000 lbsAnchorage Strength (22.2 kN)
Type AANSI Z359.18-2017
1 Worker310 lb ANSI / 425 lb OSHA
360 DegreesSwivel D-Ring
Roof MountFastened
Forged D-RingSteel
Low ProfileRoof Anchor
Follows WorkerNo Twist

Who Needs This Product

This product is a rotating D-ring roof anchor, the anchorage component of a personal fall arrest system. Roofing and maintenance crews mount it to the roof structure for a swiveling tie-off point that tracks the worker, then connect an SRL or lanyard. You still need a certified full-body harness and a compatible connecting device.

Features

360-degree swivel

The forged D-ring rotates fully so the lifeline follows the worker across the roof.

Reduces lifeline twist

The swivel keeps the connection aligned to cut side loading.

Forged steel D-ring

Strong connection point for an SRL or lanyard.

Roof mount

Fastens to the roof structure per the manual.

Low-profile

Compact anchor point on the roof.

ANSI Z359.18-2017

Certified anchorage rated for 5,000 lb (22.2 kN).

⚠

Mount to a sound, rated roof structure per the manual. Fasten the anchor to framing or structure rated to support it, using the specified fasteners, and seal the mount appropriately. Confirm fall clearance and swing-fall with the Fall Protection Calculator below.

Compliance Standards

ANSI Z359.18-2017

American National Standard for anchorage connectors. Rated 5,000 lb (22.2 kN).

OSHA 29 CFR 1926.502

Federal construction fall protection anchorage requirements.

OSHA 29 CFR 1910

General industry personal fall protection requirements.

Rated 5,000 lb (22.2 kN)

Anchorage strength for personal fall arrest.

Typical Applications

RoofingSwiveling tie-off across the roof.
MaintenanceRotating roof anchor for return work.
Solar installRoof anchor that follows the worker.
InspectionRoof access anchor point.
Commercial roofsFixed rotating anchor.
Service workMobile tie-off across a roof.

How to Install

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Inspect. Check the anchor body, connection point, and hardware for damage before each use.
  2. Prepare the structure. Confirm the mounting surface is sound and rated to support the anchor per the manual.
  3. Install and secure. Mount the anchor as specified and set all fasteners to the required torque.
  4. Connect. Attach your SRL or energy-absorbing lanyard to the connection point.
  5. Check clearance. Confirm fall clearance and swing-fall with the calculator below.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.

  • Anchor body and welds: cracks, bending, deformation, or corrosion.
  • D-ring or connection point: deformation, sharp edges, cracks, or corrosion.
  • Fasteners and hardware: damaged threads, loose or missing fasteners.
  • Labels: illegible or missing markings.

Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypeRotating (swivel) D-ring roof anchor
Swivel360-degree forged steel D-ring
Anchorage classificationANSI Z359.18-2017
MountingFastened to roof structure
Anchorage strength5,000 lb (22.2 kN)
Capacity (ANSI)One worker, 130 to 310 lb combined
Capacity (OSHA)One worker, up to 425 lb combined
StandardsANSI Z359.18-2017; OSHA 1926.502 and 1910
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What does the 360-degree swivel do?
The forged D-ring rotates fully so the connection follows the worker across the roof, reducing lifeline twist and side loading.
What does it mount to?
A sound, rated roof structure using the fasteners specified in the manual.
What is the rated strength and capacity?
Certified to ANSI Z359.18-2017 with 5,000 lb (22.2 kN) strength, for one worker up to 310 lb (ANSI) or 425 lb (OSHA).
Is it permanent or temporary?
It is a fastened roof anchor that can stay installed for ongoing access or be removed per the manual.
Why choose a rotating anchor?
On a roof where the worker moves around the anchor, the swivel keeps the lifeline from twisting and binding.
What do I connect to it?
Connect a compatible SRL or energy-absorbing lanyard to the connection point, used with a certified full-body harness.
Can it be reused after a fall?
No. Remove the anchor from service immediately after any fall-arrest event and destroy it so it cannot be reused.

FallTech 7420 Submittals and Documentation

7420 Instruction Manual (PDF)Installation, capacity, and inspection. 7420 Declaration of Conformity (PDF)Certification to ANSI Z359.18-2017 (FallTech test lab). 7420 Spec Sheet (PDF)One-page specifications summary.

Related Anchors

Specifying Anchors for Your Crew?

The anchor, the connecting device, and the harness all have to match the structure and the fall clearance below. Confirm your application with us and we will help you choose the right anchor.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech provides a 2-year limited warranty against defects in materials and workmanship on the FallTech product. The warranty is void if the product is altered, misused, or damaged by neglect, abuse, or accident, and it excludes normal wear. Fall Protection Distributors, LLC passes through the manufacturer warranty and is not liable beyond the product replacement it provides.
