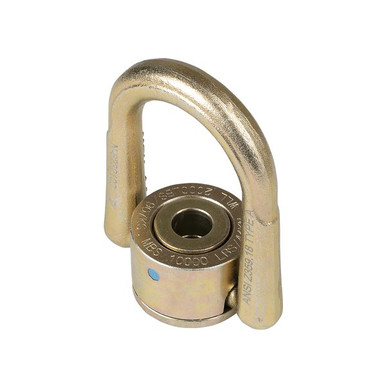

FallTech rotating 360-degree swivel D-ring anchor for structural steel, 10,000 lb rated
FallTech

FallTech Rotating D-Ring Steel Anchor, 10,000 lb

(No reviews yet) Write a Review
$100.50 - $185.00
Brand:
FallTech
SKU:
7393
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Anchorage Connectors

FallTech Rotating D-Ring Anchor for Steel, 10,000 lb

The FallTech Rotating D-Ring Anchor mounts to structural steel and provides a forged D-ring that swivels a full 360 degrees, so the connection follows the worker without twisting the lifeline. It carries a heavy 10,000 lb rating.

Choose your mounting: bolt-on, bolt-on with bolt and nut, or weld-on with a puck. Certified to ANSI Z359.18-2017, for one worker up to 310 lb (ANSI) or 425 lb (OSHA).

FallTech rotating 360-degree swivel D-ring anchor for structural steel, 10,000 lb rated
10,000 lbsRated Strength
Type AANSI Z359.18-2017
1 Worker310 lb ANSI / 425 lb OSHA
360 DegreesSwivel D-Ring
Bolt-On or Weld-OnMounting Options
Forged D-RingSteel
Heavy Duty10k Rated
Structural SteelMounting Surface

Who Needs This Product

This product is a rotating D-ring steel anchor, the anchorage component of a personal fall arrest system. Steel and industrial crews mount it to a structural member for a swiveling tie-off point that tracks the worker. Choose the mounting for your install. You still need a certified full-body harness and a compatible connecting device.

Features

360-degree swivel

The forged D-ring rotates fully so the lifeline follows the worker without twisting.

10,000 lb rated

Heavy-duty strength well above the standard anchorage requirement.

Choose your mounting

Bolt-on, bolt-on with bolt and nut, or weld-on with a puck.

Forged steel D-ring

Durable connection point for an SRL or lanyard.

Low-profile mount

Sits close to the steel for a compact anchor.

ANSI Z359.18-2017

Certified anchorage connector.

⚠

Mount to sound steel per the manual. Use the correct mounting for your structure, set fasteners to the specified torque, or make a qualified weld for the puck version. Confirm the steel is rated, and confirm fall clearance and swing-fall with the Fall Protection Calculator below.

Compliance Standards

ANSI Z359.18-2017

American National Standard for anchorage connectors. Rated 10,000 lb.

OSHA 29 CFR 1926.502

Federal construction fall protection anchorage requirements.

OSHA 29 CFR 1910

General industry personal fall protection requirements.

Rated 10,000 lb

Anchorage strength for personal fall arrest.

Typical Applications

Steel erectionSwiveling tie-off on structural steel.
Heavy industrialHigh-rated anchor for demanding work.
ManufacturingRotating anchor on steel structures.
Bridge and infrastructureDurable swivel anchors on steel.
MaintenanceReusable rotating tie-off.
FabricationBolt-on or weld-on rotating anchors.

How to Install

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Inspect. Check the anchor body, connection point, and hardware for damage before each use.
  2. Prepare the structure. Confirm the mounting surface is sound and rated to support the anchor per the manual.
  3. Install and secure. Mount the anchor as specified and set all fasteners to the required torque.
  4. Connect. Attach your SRL or energy-absorbing lanyard to the connection point.
  5. Check clearance. Confirm fall clearance and swing-fall with the calculator below.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.

  • Anchor body and welds: cracks, bending, deformation, or corrosion.
  • D-ring or connection point: deformation, sharp edges, cracks, or corrosion.
  • Fasteners and hardware: damaged threads, loose or missing fasteners.
  • Labels: illegible or missing markings.

Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypeRotating (swivel) D-ring anchor for steel, 10,000 lb
Swivel360-degree forged steel D-ring
Mounting optionsBolt-on (7393B), bolt-on w/bolt & nut (7393BS), weld-on w/puck (7393BW)
Rated strength10,000 lb
Anchorage strength10,000 lb
Capacity (ANSI)One worker, 130 to 310 lb combined
Capacity (OSHA)One worker, up to 425 lb combined
StandardsANSI Z359.18-2017; OSHA 1926.502 and 1910
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What does the 360-degree swivel do?
The forged D-ring rotates fully so the connection follows the worker, reducing lifeline twist and side loading on the anchor.
What mounting options are there?
Bolt-on (7393B), bolt-on with bolt and nut (7393BS), or weld-on with a puck (7393BW). A weld-on puck (7393BP) is also available as a replacement.
What is the 10,000 lb rating?
The anchor is rated to 10,000 lb, well above the 5,000 lb anchorage requirement, for a strong margin on structural steel.
What is the worker capacity?
One worker, 130 to 310 lb for ANSI compliance and up to 425 lb for OSHA compliance.
How is the weld-on version installed?
The weld-on puck is welded to the structure by a qualified welder, then the rotating anchor bolts to the puck.
What do I connect to it?
Connect a compatible SRL or energy-absorbing lanyard to the connection point, used with a certified full-body harness.
Can it be reused after a fall?
No. Remove the anchor from service immediately after any fall-arrest event and destroy it so it cannot be reused.

FallTech 7393 Submittals and Documentation

7393B Instruction Manual (PDF)Installation, capacity, and inspection. 7393B Declaration of Conformity (PDF)Certification to ANSI Z359.18-2017 (FallTech test lab). 7393B Spec Sheet (PDF)One-page specifications summary.

Related Anchors

Specifying Anchors for Your Crew?

The anchor, the connecting device, and the harness all have to match the structure and the fall clearance below. Confirm your application with us and we will help you choose the right anchor.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech provides a 2-year limited warranty against defects in materials and workmanship on the FallTech product. The warranty is void if the product is altered, misused, or damaged by neglect, abuse, or accident, and it excludes normal wear. Fall Protection Distributors, LLC passes through the manufacturer warranty and is not liable beyond the product replacement it provides.
