FallTech 9' FT-X Web Class 1 SRL-P, Twin-Leg
The 84709 9 ft FT-X Web Class 1 SRL-P, Twin-Leg is a twin-leg personal self-retracting device for 100 percent tie-off. Two 9' Dyneema web lifelines pay out and retract as you move, allowing you to stay connected while transitioning between anchor points, and the whole assembly weighs just 6.0 lb.
It is certified to ANSI Z359.14-2021 as a Class 1 SRL-P, for one worker from 130 to 310 lb under ANSI and up to 420 lb under OSHA. The light green housings denote Class 1 certified performance for anchoring at or above the D-ring. Choose the hook configuration for your anchorage.
Who Needs This Product

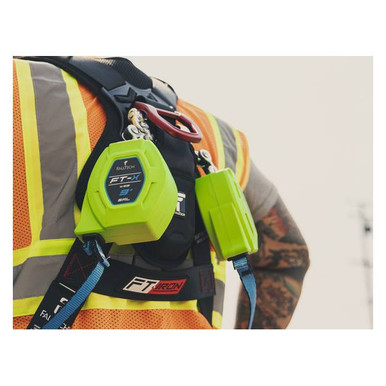

This product is a twin-leg personal self-retracting device (SRL-P), the connecting component of a personal fall arrest system for workers who move between anchor points. The worker wears both SRDs at the harness dorsal and alternates legs to stay connected 100 percent of the time. Class 1 devices anchor at or above the D-ring, away from edge exposure. What is included: the twin-leg SRL-P assembly only; the harness shown in photos is sold separately. You still need a certified full-body harness and rated anchorages.
Features
100 percent tie-off
The twin-leg configuration allows you to stay connected while moving between anchor points.
Segment-leading lightweight design
At 6.0 lb for both legs, the 84709 reduces size and weight without sacrificing durability.
Dyneema web lifelines
High-strength and lightweight 9' Dyneema/polyester webbing with a 4,500 lb minimum strength.
Push-button dorsal connector
The unique aluminum dorsal connector offers a streamlined attachment with clear visual confirmation.
Reduced nuisance lockups
An advanced internal mechanism reduces unintentional lockups for smooth, natural movement.
Built-in clearance charts
Fall clearance charts inside the energy absorber cover offer quick, accessible safety reference.
Class 1 twin-leg SRL-P for at-or-above D-ring anchorage. Anchor at or above the harness D-ring, away from leading edge exposure; use a Class 2 device for foot-level or edge tie-off. The maximum arrest distance is 42 inches, which is one part of your Minimum Required Fall Clearance (MRFC). Confirm required fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.14-2021
Self-retracting device standard, Class 1 SRL-P, documented in declaration D1001090.
OSHA 29 CFR 1926.502
Federal construction fall protection requirements.
OSHA 1910.140
General industry personal fall protection systems.
ANSI capacity
130 to 310 lb ANSI; 130 to 420 lb OSHA.
Typical Applications
How to Use
Follow the FallTech instruction manual (MSRD42). The sequence below is an overview only.
- Inspect. Check both lifelines, retraction, locks, housings, dorsal connector, and hooks before each use.
- Mount the SRD. Attach the aluminum dorsal connector to the harness dorsal D-ring until it clicks and shows engaged.
- Connect the first leg. Attach one hook to a rated anchor at or above the D-ring.
- Alternate legs to move. Connect the second leg to the next anchor before releasing the first, keeping 100 percent tie-off.
- Confirm clearance. Verify required fall clearance and swing-fall with the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the SRD from service for any of the conditions below.
- Lifeline: cuts, fraying, burns, chemical damage.
- Retraction and lock: a lifeline that will not retract or lock on a sharp pull.
- Energy absorber: a deployed or torn tear-away cover.
- Housing, dorsal connector, and hardware: cracks, deformation, or corrosion.
- Connectors and hooks: bent gates, corrosion, or gates that will not lock.
- Labels: illegible or missing markings.
Remove the SRD from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 9' FT-X Web Class 1 personal SRL-P (twin-leg, 100 percent tie-off) |
|---|---|
| Standard | ANSI Z359.14-2021, Class 1 SRL-P |
| Lifeline | Two 9' Dyneema/polyester blend web legs; 4,500 lb minimum |

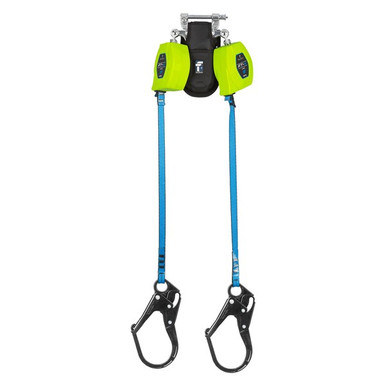

| Connector configurations | 84709TP1 steel snap hooks; 84709TP3 steel rebar hooks; 84709TP5 aluminum rebar hooks |
| Dorsal connector | Aluminum alloy; 3,600 lb minimum |
| Unit weight | 6.0 lb (2.7 kg) |
| Static strength | 3,600 lb minimum |
| Average arrest force | 1,350 lb maximum |
| Maximum arrest force | 1,800 lb |
| Maximum arrest distance | 42 in |
| Capacity | 130 to 310 lb ANSI; 130 to 420 lb OSHA |
| Standards | ANSI Z359.14-2021; OSHA 1926.502 and 1910.140 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 84709 Twin-Leg Submittals and Documentation
84709 Instruction Manual (PDF)FT-X Web SRL-P manual (MSRD42): use, capacity, arrest distance, and inspection. 84709 Twin-Leg Declaration of Conformity (PDF)Certification to ANSI Z359.14-2021 under declaration D1001090 (84709TP1, TP3, TP5). 84709 Twin-Leg Spec Sheet (PDF)One-page specifications and compliance summary. FT-X 9 Web Brochure (PDF)Family overview of the FT-X Web Class 1 SRL-P line. FT-X 9 Web Sell Sheet (PDF)Quick reference for the FT-X 9 web family.Related Products
- FallTech 84709 FT-X Web SRL-P, Single-Leg. The single-leg version for work under one anchor.
- FallTech 84108 FT-X EdgeCore LE SRL, Twin-Leg. The Class 2 leading-edge twin for foot-level tie-off.
- FallTech 84711 11 ft FT-X Web SRL. The 11 ft FT-X web SRL for overhead anchorage.
Specifying Twin-Leg SRL-Ps for Your Crew?
The right twin-leg SRL-P depends on the anchor positions, the edge exposure, the connectors, and the fall clearance below. Confirm your application with us and we will help you pick the hook configuration.
Call 863-703-4522 to talk to a fall protection specialist.
