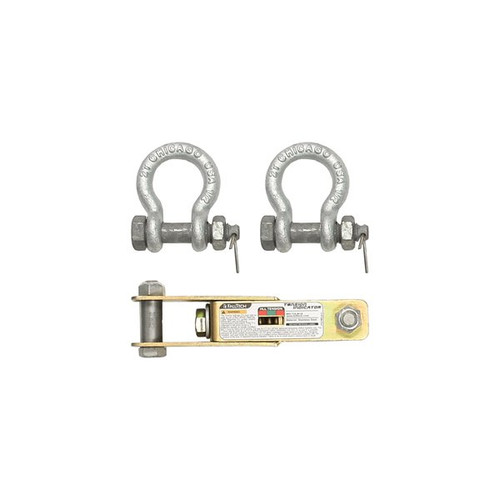

FallTech Cable Tension Indicator for SteelGrip Temp HLLs
SteelGrip Tension Indicator Set for Cable HLLs. Includes two 1/2" diameter safety shackles with bolt, nut and cotter pin.
For use with user-supplied 3/8" cable and installation components.
Who Needs This Product
Crews that run SteelGrip cable lifelines keep genuine installation components on hand so a worn clip, thimble, or absorber never idles a span. Every component is rated for the 3/8 in SteelGrip system, and using factory parts keeps the assembled lifeline inside its OSHA compliance basis.
Features
SteelGrip Tension Indicator Set for
SteelGrip Tension Indicator Set for Cable HLLs.
Includes two 1/2" diameter safety
Includes two 1/2" diameter safety shackles with bolt, nut and cotter pin.
For use
For use with user-supplied 3/8" cable and installation components.
Genuine components keep the system compliant. The SteelGrip compliance basis assumes factory hardware on 3/8 in cable at the manual's clip counts and torques. Substituting hardware store parts voids that basis. Replace the coil energy absorber after any deployment.
Compliance Standards
OSHA 1926.502(d)(8)
Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Match the component. Confirm the part fits the 3/8 in SteelGrip system and your span configuration.
- Install per the manual. Follow the SteelGrip instruction manual for clip torque, thimble placement, and absorber orientation.
- Verify tension. Re-tension the system and confirm the indicator reads correctly before workers connect.
- Log the change. Record the component swap in the system inspection record.
Inspection and Retirement
Inspect components on the same schedule as the lifeline, before each use and at least every six months by a competent person.
- Threads and pawls: clean, lubricated, and fully functional.
- Load-bearing surfaces: no wear grooves, cracks, or corrosion.
- Energy absorber coils: tight and undeployed.
Replace any component that fails inspection and re-verify the full span before returning it to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | SteelGrip Tension Indicator |
|---|---|
| SKU | 62205T |
| Tensioner | Plated carbon steel |
| Shackles | 1/2" diameter galvanized carbon steel |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 62205T Submittals and Documentation
62205T Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 62205T Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary.Complete Your Horizontal Lifeline System
- FallTech SteelGrip Temporary Cable HLL Assembly. The 3/8 in galvanized cable workhorse.
- FallTech SteelGrip Plus Cable HLL with Ratchet Tensioner. Ratchet-tensioned cable spans in seconds.
- FallTech SteelGrip I-Beam Stanchion for Cable HLLs. Clamp-on stanchions that raise the line.
- FallTech SteelGrip Coil Energy Absorber Installation Kit. Everything to build a span from your own cable.
Specifying a Horizontal Lifeline for Your Crew?
The right system depends on your span, structure, crew size, and the clearance below. Confirm your application with us and we will make sure every component matches before it ships.
Call 863-703-4522 to talk to a fall protection specialist.
