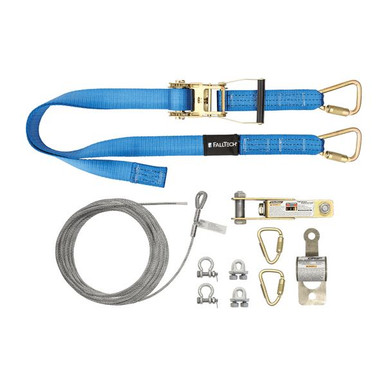

FallTech SteelGrip Plus Cable HLL with Ratchet Tensioner
SteelGrip Plus™ Cable HLL Assembly, no anchors. 3/8" galvanized steel cable with one-end terminated and thimbled.
Features 1 stainless steel coil energy absorber and 2 connecting carabiners. In-line tension indicator included with 2 galvanized steel shackles.
Who Needs This Product
Steel erectors, bridge crews, precast contractors, and plant maintenance teams run SteelGrip cable horizontal lifelines where the span needs to survive sparks, abrasion, and weeks of exposure. The 3/8 in galvanized cable system holds up where rope will not, and the stainless coil energy absorber keeps end-anchor loads controlled during a fall arrest. Two workers per span ride the line with their own harnesses and connectors.
Features
SteelGrip Plus™ Cable HLL Assembly
SteelGrip Plus™ Cable HLL Assembly, no anchors.
3/8" galvanized steel cable
3/8" galvanized steel cable with one-end terminated and thimbled.
Features 1 stainless steel coil
Features 1 stainless steel coil energy absorber and 2 connecting carabiners.
In-line tension indicator included
In-line tension indicator included with 2 galvanized steel shackles.
System also includes wire rope
System also includes wire rope clips and ratchet strap tensioner.
User-supplied end-point anchors required
User-supplied end-point anchors required.
Cable systems must be installed under a qualified person. OSHA 1926.502(d)(8) requires horizontal lifelines to be designed, installed, and used under qualified-person supervision. Verify anchor strength, clip torque, working tension on the indicator, and fall clearance including cable deflection before anyone ties off.
Compliance Standards
Cable HLL System meets OSHA 1926.502
Applicable requirement for this equipment: Cable HLL System meets OSHA 1926.502 and 1910.140 regulations.
1910.140 regulations
Applicable requirement for this equipment: Cable HLL System meets OSHA 1926.502 and 1910.140 regulations.
OSHA 1926.502(d)(8)
Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Select the anchors. Choose end anchorage points that meet the manual's strength requirements, or use FallTech pass-through anchors or I-beam stanchions.
- Terminate the cable. Connect the terminated end, route the cable, and clamp the field end with the supplied wire rope clips and thimbles.
- Tension the system. Tighten the turnbuckle, or crank the ratchet strap on SteelGrip Plus, until the in-line tension indicator shows working tension.
- Connect the workers. Maximum two workers per single span, each with an energy-absorbing connector, after verifying fall clearance including cable deflection.
- Inspect daily. Re-check tension and hardware each shift while the system stays rigged.
Inspection and Retirement
Inspect the system before each use and re-check tension every shift. A competent person must perform a documented inspection at least every six months.
- Cable: broken wires, kinks, bird-caging, corrosion, and damaged terminations.
- Coil energy absorber: coils tight and undeployed; no stretch marks.
- Tension indicator: reads working tension; no deformation.
- Turnbuckle or ratchet: threads and pawls clean and functional.
- Clips and shackles: correct torque, no missing hardware.
Retirement triggers: any fall event, energy absorber deployment, broken cable wires, or hardware that fails inspection.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 60' assembly without anchors |
|---|---|
| SKU | 620XR |
| Static Strength | 5,000 lb min. |
| OSHA User Capacity | 310 lb max. per user; 2 users max. per single span |
| Cable | 3/8" galvanized steel; 5,000 lb min. static strength |
| Energy Absorber | 304 Stainless Steel |
| Carabiners | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Available Configurations | 620030R (30 ft), 620060R (60 ft), 620100R (100 ft) |
| Standards | Cable HLL System meets OSHA 1926.502 and 1910.140 regulations |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 620030R Submittals and Documentation
620XR Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 620XR Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 620XR Spec Sheet (PDF)Full specifications, features, and compliance summary for submittal packages.Complete Your Horizontal Lifeline System
