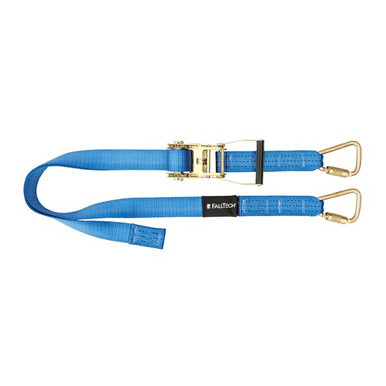

FallTech Ratchet Strap Tensioner for SteelGrip Plus HLLs
SteelGrip Plus™ Ratchet Strap Tensioner for Cable HLLs. For use as SteelGrip Plus™ replacement or to update exisitng SteelGrip systems in the field.
SteelGrip Plus™ Patent Pending.
Who Needs This Product
Crews that run SteelGrip cable lifelines keep genuine installation components on hand so a worn clip, thimble, or absorber never idles a span. Every component is rated for the 3/8 in SteelGrip system, and using factory parts keeps the assembled lifeline inside its OSHA compliance basis.
Features
SteelGrip Plus™ Ratchet Strap Tensioner
SteelGrip Plus™ Ratchet Strap Tensioner for Cable HLLs.
For use as SteelGrip Plus™
For use as SteelGrip Plus™ replacement or to update exisitng SteelGrip systems in the field.
SteelGrip Plus™ Patent Pending
SteelGrip Plus™ Patent Pending.
Genuine components keep the system compliant. The SteelGrip compliance basis assumes factory hardware on 3/8 in cable at the manual's clip counts and torques. Substituting hardware store parts voids that basis. Replace the coil energy absorber after any deployment.
Compliance Standards
OSHA 1926.502(d)(8)
Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Match the component. Confirm the part fits the 3/8 in SteelGrip system and your span configuration.
- Install per the manual. Follow the SteelGrip instruction manual for clip torque, thimble placement, and absorber orientation.
- Verify tension. Re-tension the system and confirm the indicator reads correctly before workers connect.
- Log the change. Record the component swap in the system inspection record.
Inspection and Retirement
Inspect components on the same schedule as the lifeline, before each use and at least every six months by a competent person.
- Threads and pawls: clean, lubricated, and fully functional.
- Load-bearing surfaces: no wear grooves, cracks, or corrosion.
- Energy absorber coils: tight and undeployed.
Replace any component that fails inspection and re-verify the full span before returning it to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Ratchet Strap Tensioner |
|---|---|
| SKU | 62206R |
| Static Strength | 5,000 lb min. |
| Ratchet | Plated alloy steel; 5,000 lb min. static strength |
| Webbing | Polyester webbing; 5,000 lb min. static strength |
| Carabiners | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 62206R Submittals and Documentation
62206R Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 62206R Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 62206R Spec Sheet (PDF)Full specifications, features, and compliance summary for submittal packages.Complete Your Horizontal Lifeline System
- FallTech SteelGrip Temporary Cable HLL Assembly. The 3/8 in galvanized cable workhorse.
- FallTech SteelGrip Plus Cable HLL with Ratchet Tensioner. Ratchet-tensioned cable spans in seconds.
- FallTech SteelGrip I-Beam Stanchion for Cable HLLs. Clamp-on stanchions that raise the line.
- FallTech SteelGrip Coil Energy Absorber Installation Kit. Everything to build a span from your own cable.
