FallTech Replacement Cable for SteelGrip Temporary HLLs
SteelGrip Cable HLL Assembly, no anchors. 3/8" galvanized steel cable with one-end terminated and thimbled.
Features 1 stainless steel coil energy absorber and 2 connecting carabiners. In-line tension indicator included with 2 galvanized steel shackles.
Who Needs This Product
Crews that run SteelGrip cable lifelines keep genuine installation components on hand so a worn clip, thimble, or absorber never idles a span. Every component is rated for the 3/8 in SteelGrip system, and using factory parts keeps the assembled lifeline inside its OSHA compliance basis.
Features
SteelGrip Cable HLL Assembly
SteelGrip Cable HLL Assembly, no anchors.
3/8" galvanized steel cable
3/8" galvanized steel cable with one-end terminated and thimbled.
Features 1 stainless steel coil
Features 1 stainless steel coil energy absorber and 2 connecting carabiners.
In-line tension indicator included
In-line tension indicator included with 2 galvanized steel shackles.
System also includes wire rope
System also includes wire rope clips and tensioning turnbuckle.
User-supplied end-point anchors required
User-supplied end-point anchors required.
Genuine components keep the system compliant. The SteelGrip compliance basis assumes factory hardware on 3/8 in cable at the manual's clip counts and torques. Substituting hardware store parts voids that basis. Replace the coil energy absorber after any deployment.
Compliance Standards
Cable HLL System meets OSHA 1926.502
Applicable requirement for this equipment: Cable HLL System meets OSHA 1926.502 and 1910.140 regulations.
1910.140 regulations
Applicable requirement for this equipment: Cable HLL System meets OSHA 1926.502 and 1910.140 regulations.
OSHA 1926.502(d)(8)
Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Match the component. Confirm the part fits the 3/8 in SteelGrip system and your span configuration.
- Install per the manual. Follow the SteelGrip instruction manual for clip torque, thimble placement, and absorber orientation.
- Verify tension. Re-tension the system and confirm the indicator reads correctly before workers connect.
- Log the change. Record the component swap in the system inspection record.
Inspection and Retirement
Inspect components on the same schedule as the lifeline, before each use and at least every six months by a competent person.
- Threads and pawls: clean, lubricated, and fully functional.
- Load-bearing surfaces: no wear grooves, cracks, or corrosion.
- Energy absorber coils: tight and undeployed.
Replace any component that fails inspection and re-verify the full span before returning it to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 60' assembly without anchors |
|---|---|
| SKU | 623X |
| Static Strength | 5,000 lb min. |
| OSHA User Capacity | 310 lb max. per user; 2 users max. per single span |
| Cable | 3/8" galvanized steel; 5,000 lb min. static strength |
| Energy Absorber | 304 Stainless Steel |
| Carabiners | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Available Configurations | 623030 (30 ft), 623060 (60 ft), 623120 (120 ft) |
| Standards | Cable HLL System meets OSHA 1926.502 and 1910.140 regulations |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 623030 Submittals and Documentation
623X Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 623X Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 623X Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary.Complete Your Horizontal Lifeline System
- FallTech SteelGrip Temporary Cable HLL Assembly. The 3/8 in galvanized cable workhorse.

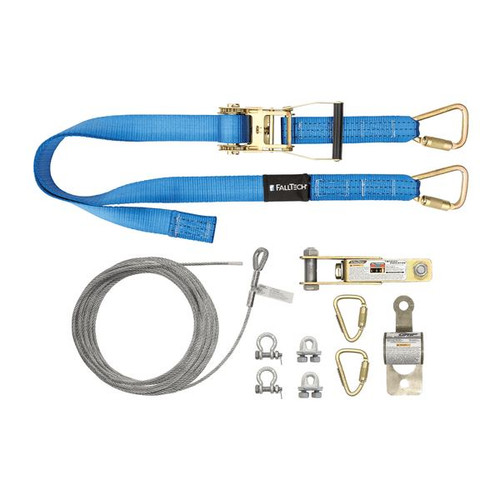

- FallTech SteelGrip Plus Cable HLL with Ratchet Tensioner. Ratchet-tensioned cable spans in seconds.
