Name: FallTech SteelGrip Coil Energy Absorber for Temporary HLLs
Brand: FallTech
SKU: 62201EA
Price: 313 USD
Availability: InStock

Description
Warranty Information
Reviews

FallTech SteelGrip Components

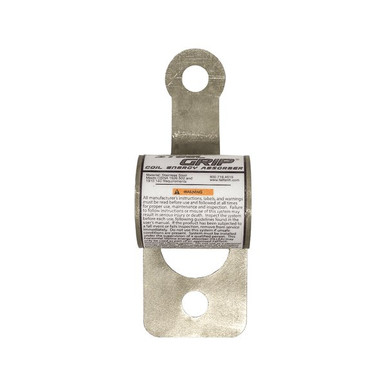

FallTech SteelGrip Coil Energy Absorber for Temporary HLLs

SteelGrip Coil Energy Absorber for Cable HLLs. Stainless steel construction.

For use with user-supplied 3/8" cable and installation components. Installation set also includes tensioning turnbuckle, 2 terminating thimbles and 4 cable clips.

FallTech 62201EA SteelGrip Coil Energy Absorber for Temporary HLLs

304 SSTStainless Coils

3/8 inCable Compatibility

ControlledEnd-Anchor Loads

4 lbAbsorber Weight

Who Needs This Product

Crews that run SteelGrip cable lifelines keep genuine installation components on hand so a worn clip, thimble, or absorber never idles a span. Every component is rated for the 3/8 in SteelGrip system, and using factory parts keeps the assembled lifeline inside its OSHA compliance basis.

Features

SteelGrip Coil Energy Absorber for

SteelGrip Coil Energy Absorber for Cable HLLs.

Stainless steel construction

Stainless steel construction.

For use

For use with user-supplied 3/8" cable and installation components.

Installation set also includes tensioning

Installation set also includes tensioning turnbuckle, 2 terminating thimbles and 4 cable clips.

⚠

Genuine components keep the system compliant. The SteelGrip compliance basis assumes factory hardware on 3/8 in cable at the manual's clip counts and torques. Substituting hardware store parts voids that basis. Replace the coil energy absorber after any deployment.

Compliance Standards

OSHA 1926.502(d)(8)

Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.

Typical Applications

System buildsAssembling SteelGrip HLLs from user-supplied 3/8 in cable.

Span upgradesConverting turnbuckle systems to SteelGrip Plus ratchet tensioning.

Inspection findingsReplacing hardware that fails a six-month inspection.

Multi-crew stockSpares that keep several spans running.

How to Use

Follow the FallTech instruction manual. The sequence below is an overview only.

Match the component. Confirm the part fits the 3/8 in SteelGrip system and your span configuration.
Install per the manual. Follow the SteelGrip instruction manual for clip torque, thimble placement, and absorber orientation.
Verify tension. Re-tension the system and confirm the indicator reads correctly before workers connect.
Log the change. Record the component swap in the system inspection record.

Inspection and Retirement

Inspect components on the same schedule as the lifeline, before each use and at least once a year by a competent person, per the FallTech manual.

Threads and pawls: clean, lubricated, and fully functional.
Load-bearing surfaces: no wear grooves, cracks, or corrosion.
Energy absorber coils: tight and undeployed.

Replace any component that fails inspection and re-verify the full span before returning it to service.

Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Type	SteelGrip Energy Absorber
SKU	62201EA
Energy Absorber	304 Stainless Steel
Turnbuckle	5/8" diameter galvanized carbon Steel
Carabiners	Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Thimbles	3/8" galvanized steel
Warranty	FallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What system does the 62201EA fit?

It is engineered for the FallTech SteelGrip temporary cable HLL system running 3/8 in galvanized cable. Using factory components keeps the assembled lifeline inside its OSHA compliance basis.

Can I build a lifeline from my own cable?

Yes. The SteelGrip installation components are designed for user-supplied 3/8 in galvanized cable. Terminate one end, clamp the field end, install the energy absorber, and tension to the indicator per the manual.

What does the coil energy absorber do?

The 304 stainless steel coil stretches progressively during a fall arrest, limiting the load transmitted to your end anchors. It must be replaced after any deployment.

What is the difference between SteelGrip and SteelGrip Plus?

SteelGrip tensions with a 5/8 in turnbuckle. SteelGrip Plus swaps in a ratchet strap tensioner that reaches working tension faster, and the 62206R retrofits existing SteelGrip systems to Plus.

How often does the hardware need inspection?

Inspect before each use and re-check tension every shift while the span stays rigged. A competent person must inspect the system at least once a year per the FallTech manual, and after any fall event.

What warranty applies?

FallTech provides a 2-year limited warranty against defects in materials and workmanship, and Fall Protection Distributors passes that warranty through to you.

How quickly does this product ship?

Usually ships in 1 business day from our warehouse. Delivery time is based on the delivery location.

FallTech 62201EA Submittals and Documentation

62201EA Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 62201EA Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary.

Complete Your Horizontal Lifeline System

FallTech SteelGrip Temporary Cable HLL Assembly. The 3/8 in galvanized cable workhorse.
FallTech SteelGrip Plus Cable HLL with Ratchet Tensioner. Ratchet-tensioned cable spans in seconds.
FallTech SteelGrip I-Beam Stanchion for Cable HLLs. Clamp-on stanchions that raise the line.
FallTech SteelGrip Coil Energy Absorber Installation Kit. Everything to build a span from your own cable.

Specifying a Horizontal Lifeline for Your Crew?

The right system depends on your span, structure, crew size, and the clearance below. Confirm your application with us and we will make sure every component matches before it ships.

Call 863-703-4522 to talk to a fall protection specialist.
